TC-500PD8
500W PS2 ATX High Efficiency Switching Power Supply
- Complies with ATX/EPS 12V Standards
- Dual 12V Rails
- High Reliability: MTBF>100,000 hours
- Protection: Over Current, Over Voltage, and Short-Circuit
- Active PFC Circuit
- Full Range Input
- 120mm Low Noise Ball Bearing Fan
- High Efficiency 82% minimum
- ROHS Compliance
Product Introduction
The TC-500PD8 high performance switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Large 120mm ball bearing cooling fan reduces operation noise while keep the optimal airflow. High efficiency saves you on electric bills and less cooling requirement. Dual 12V rails increase overall system stability. TC-500PD8 is the ideal power supply for server and high-end gaming workstation.
| Model Number | TC-500PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 500 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin 4pin 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 3 SATA :: 4 Floppy :: 1 6pin PCIE :: 1 |
| Dimensions (WxHxD) | 5.91" x 3.39" x 5.51" 150.1 mm x 86.1 mm x 140.0 mm |
Parts & Accessories
| Image | Accessory | Description |

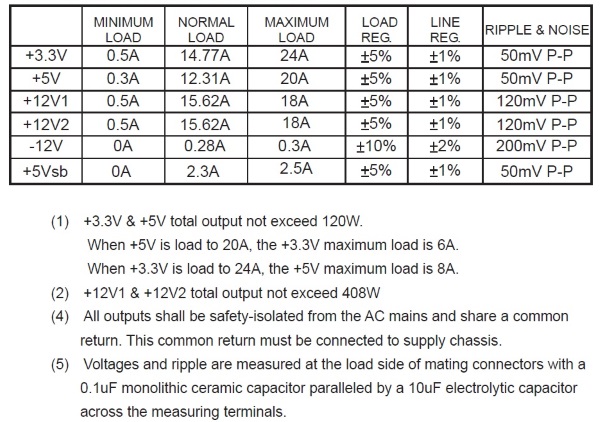

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
