TC-2U70PD8
700W 2U High Efficiency Switching Power Supply
- High Efficiency 82% minimum
- Universal Power Input
- Over Current Protection
- Over Voltage Protectio
- Over Power Protection
- Short Circuit Protection
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U70PD8 supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
| Model Number | TC-2U70PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 700 |
| Efficiency | 82% |
| Noise Level | |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 2 Molex :: 4 SATA :: 4 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 10.24" 100.1 mm x 70.1 mm x 260.1 mm |
Parts & Accessories
| Image | Accessory | Description |

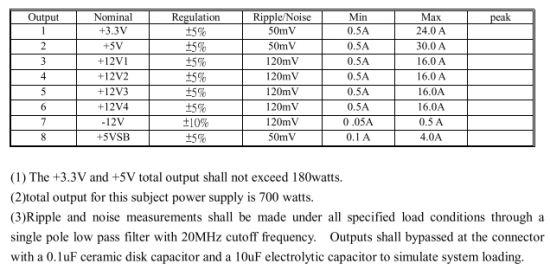

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-300L | 700W 2U High Efficiency Switching Power Supply |
|
D-300L-B6SA | 700W 2U High Efficiency Switching Power Supply |
|
D-300LSE | 700W 2U High Efficiency Switching Power Supply |
|
D-300 | 700W 2U High Efficiency Switching Power Supply |
|
D-300A | 700W 2U High Efficiency Switching Power Supply |
|
D-300SE | 700W 2U High Efficiency Switching Power Supply |
|
D-300SEA | 700W 2U High Efficiency Switching Power Supply |
|
D-300SEA-BK | 700W 2U High Efficiency Switching Power Supply |
|
D-300SEA-RD | 700W 2U High Efficiency Switching Power Supply |
|
D-300SEA-SL | 700W 2U High Efficiency Switching Power Supply |
|
STAR300 | 700W 2U High Efficiency Switching Power Supply |
|
D-300-35 | 700W 2U High Efficiency Switching Power Supply |
|
D-300L-SD | 700W 2U High Efficiency Switching Power Supply |
|
D-300-95R3K8 | 700W 2U High Efficiency Switching Power Supply |
|
E2M12HD | 700W 2U High Efficiency Switching Power Supply |
|
|
U-280HD | 700W 2U High Efficiency Switching Power Supply |
|
U-316HD | 700W 2U High Efficiency Switching Power Supply |
