Product Detail

Build-to-Order - 550W 2U Switching Power Supply

Universal AC Inputs for EU and Asia
PCI-Express Connector Support High End Graphic Card
16ms Hold Up Time
Nickel Plated enclosure to provide Corrosion Resistance
Active PFC for High Efficiency
Short Circuits Protection
Over Voltage Protection
Over Power Protection

Product Introduction

Introduce the industrial graded TC-2U55P power supply. Design to power your high performance and compact 2U rackmount system. Total power of 550 watts, TC-2U55P equipped with 60mm fan cooling System, triple circuit protections and Active PFC with universal inputs. TC-2U55P offer unswerving performance for your 2U system.

Specifications	Download	Optional Accessories

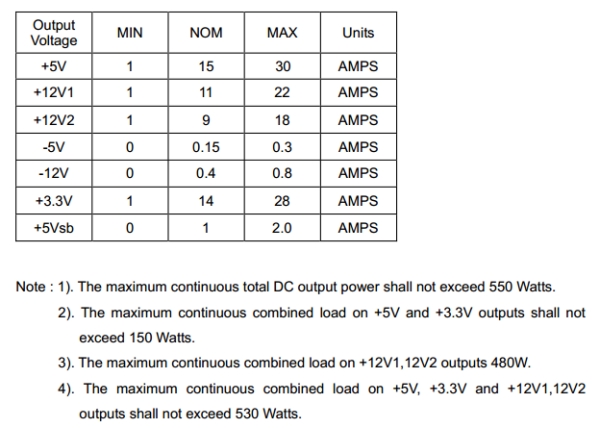

Output	FAQ
Compatible Chassis

Model Number	TC-2U55P
RoHS Compliance	Yes
Output Wattage	550
Efficiency	70%
Connector Type	Main Connector :: 20+4 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 8 Floppy :: 1 6pin PCIE :: 1
Dimensions (WxHxD)	3.94" x 2.76" x 10.04" 100.1 mm x 70.1 mm x 255.0 mm
