TC-1U70PD8
Build-to-Order - 1U 700W High Efficiency Switching Power Supply
- Over Current Protection
- Over Voltage Protection
- Short Circuits Protection
- High Efficiency 82% minimum
- 100% Hi-pot, ATE, and Burn-in Tested
- Complied with ATX12V /EPS12V Standard
Product Introduction
Introduce the industrial graded TC-1U70PD8 1U 700W high efficiency switching power supply. Design to fit perfectly into your 1U rackmount chassis. Feature such as thermal fan speed control, triple circuit protections, and Active PFC. TC-1U70PD8 is the compact and versatile 1U power supply.
| Model Number | TC-1U70PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 700 |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 5 SATA :: 6 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 1.60" x 9.85" 100.1 mm x 40.6 mm x 250.2 mm |
Parts & Accessories
| Image | Accessory | Description |

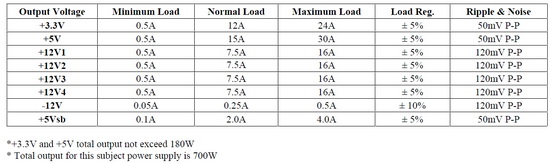

Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : |
58.6 dBA Max. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-200 | Build-to-Order - 1U 700W High Efficiency Switching Power Supply |
|
D-300 | Build-to-Order - 1U 700W High Efficiency Switching Power Supply |
|
D-300-95R3K8 | Build-to-Order - 1U 700W High Efficiency Switching Power Supply |
|
D-116L | Build-to-Order - 1U 700W High Efficiency Switching Power Supply |
