TC-1U50PD8
1U 500W High Efficiency Switching Power Supply
- High Efficiency 80% minimum
- Short Circuits Protection
- Over Voltage Protection
- Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
- Complied with EPS12V Standard
Product Introduction
Introduce the industrial graded TC-1U50PD8 1U high efficiency switching power supply. Design to fit perfectly into your 1U rackmount chassis. Feature such as thermal fan speed control, triple circuit protections, and Active PFC. TC-1U50PD8 is the compact and versatile 1U power supply.
| Model Number | TC-1U50PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 500 |
| Noise Level | 80% |
| Connector Type | Main Connector :: 20+4 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 6 SATA :: 2 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 1.59" x 7.87" 100.1 mm x 40.4 mm x 199.9 mm |
| Notes | - Safety: To meet UL, CUL, TUV. - EMI Noise Filter: FCC Class A, CISPR22 CLASS A |
Parts & Accessories
| Image | Accessory | Description |

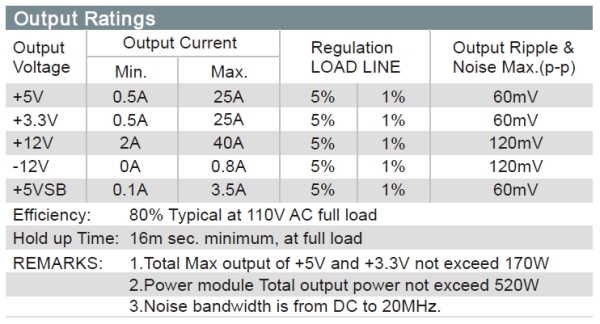

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
E1M4 | 1U 500W High Efficiency Switching Power Supply |
|
E-30 | 1U 500W High Efficiency Switching Power Supply |
|
ASH-30 | 1U 500W High Efficiency Switching Power Supply |
|
E-20 | 1U 500W High Efficiency Switching Power Supply |
|
D-135 | 1U 500W High Efficiency Switching Power Supply |
|
D-135-DE3 | 1U 500W High Efficiency Switching Power Supply |
|
D-135-BN12SA | 1U 500W High Efficiency Switching Power Supply |
|
D-135-BN10SA-T | 1U 500W High Efficiency Switching Power Supply |
|
D-116L | 1U 500W High Efficiency Switching Power Supply |
|
E1M4V12 | 1U 500W High Efficiency Switching Power Supply |
|
E-20-SY | 1U 500W High Efficiency Switching Power Supply |
