TC-1U30FX8
1U 300W Flex High Efficiency Power Supply
- Complied with Flex ATX and ATX12V Standard
- High Efficiency 80% minimum
- Active Power Factor Correction (PFC) Meet EN61000-3-2
- Compatible with European Union Directive 2011/65/EU (RoHS2)
- Thermal Fan Speed Control Function
- Low Noise and Ripple
- Output Over Voltage, Short Circuit, and Over Current Protection
- 100% Hi-pot, ATE, and Burn-in Tested
Product Introduction
TC-1U30FX8 1U 300W Flex ATX power supply is designed to fit perfectly into your 1U rackmount chassis. Feature such as low noise, triple circuit protections, and active PFC. TC-1U30FX8 is the compact and versatile 1U power supply.
| Model Number | TC-1U30FX8 |
| RoHS Compliance | Yes |
| Output Wattage | 300 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 Molex :: 3 SATA :: 2 Floppy :: 1 |
| Dimensions (WxHxD) | 3.20" x 1.60" x 5.90" 81.3 mm x 40.6 mm x 149.9 mm |
Parts & Accessories
| Image | Accessory | Description |

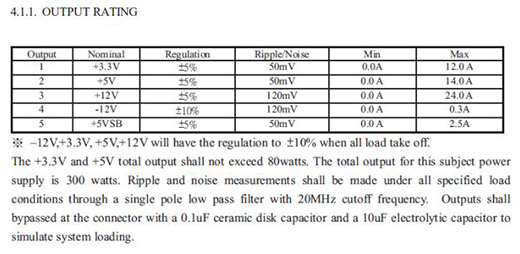

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-118-ITX | 1U 300W Flex High Efficiency Power Supply |
|
D-118-ITX-DT | 1U 300W Flex High Efficiency Power Supply |
|
D-218M2-ITX | 1U 300W Flex High Efficiency Power Supply |
|
D-118V2-ITX | 1U 300W Flex High Efficiency Power Supply |
|
D-118V2-ITX-DT | 1U 300W Flex High Efficiency Power Supply |
|
S-21 | 1U 300W Flex High Efficiency Power Supply |
|
D-300S5 | 1U 300W Flex High Efficiency Power Supply |
|
D-300S5SE | 1U 300W Flex High Efficiency Power Supply |
|
D-118V2-ITX-WB | 1U 300W Flex High Efficiency Power Supply |
|
D-118V2-ITX-WB-DT | 1U 300W Flex High Efficiency Power Supply |
|
S-40 | 1U 300W Flex High Efficiency Power Supply |
|
S-35 | 1U 300W Flex High Efficiency Power Supply |
|
D-A120T-ITX | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE3 | 1U 300W Flex High Efficiency Power Supply |
|
S-35-DE4 | 1U 300W Flex High Efficiency Power Supply |
|
S-35-DE5 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B3SA | 1U 300W Flex High Efficiency Power Supply |
|
S-35-B4SA | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3B126 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-2B126 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-1B126 | 1U 300W Flex High Efficiency Power Supply |
|
S-35-B5SA | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-1B124 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3B124 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-2B124 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE4BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE4BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE4RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE4SL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B4BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B4BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B4RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B4SL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B5BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B5BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B5RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-B5SL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE5BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE5BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE5RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-DE5SL | 1U 300W Flex High Efficiency Power Supply |
|
S-35-3M1 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3M1BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3M1BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3M1RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3M1SL | 1U 300W Flex High Efficiency Power Supply |
|
S-35-3DE1 | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3DE1BK | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3DE1BL | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3DE1RD | 1U 300W Flex High Efficiency Power Supply |
|
|
S-35-3DE1SL | 1U 300W Flex High Efficiency Power Supply |
|
M-140-ITX | 1U 300W Flex High Efficiency Power Supply |
|
G-180-ITX | 1U 300W Flex High Efficiency Power Supply |
|
EB-2101-ITX | 1U 300W Flex High Efficiency Power Supply |
|
S-35-DE4WB | 1U 300W Flex High Efficiency Power Supply |
|
D-1101-ITX | 1U 300W Flex High Efficiency Power Supply |
|
S-35EX | 1U 300W Flex High Efficiency Power Supply |
|
D-250-ITX | 1U 300W Flex High Efficiency Power Supply |
|
DN-105-T | 1U 300W Flex High Efficiency Power Supply |
|
DW-101 | 1U 300W Flex High Efficiency Power Supply |
|
M-140HD-ITX | 1U 300W Flex High Efficiency Power Supply |
|
U-140HD | 1U 300W Flex High Efficiency Power Supply |
|
M-140SS-ITX | 1U 300W Flex High Efficiency Power Supply |
