IX-750S2UPD8G
750W 2U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- Power Failure Alarm & Signals
- High Efficiency 87% minimum
- PMBus Support
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
Product Introduction
XEAL dual AC input high efficiency 2U 750W redundant power supply IX-750S2UPD8G. It offers your server and workstation zero down time with full 750W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with PMBus Support to provide a reliable power supply for your mission critical system integration.
| Model Number | IX-750S2UPD8G |
| RoHS Compliance | Yes |
| Output Wattage | 750 |
| Efficiency | 87% |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 8 SATA :: 4 Floppy :: 2 |
| Dimensions (WxHxD) | 4.00" x 3.28" x 11.02" 101.6 mm x 83.3 mm x 279.9 mm |
Parts & Accessories
| Image | Accessory | Description |

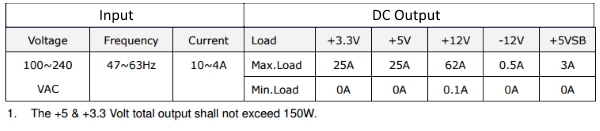

Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : |
46.8 dBA (20% load) to 45.7 dBA (100% load). |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
E2M8 | 750W 2U High Efficiency Redundant Power Supply |
|
EX2M8 | 750W 2U High Efficiency Redundant Power Supply |
|
EX4M24 | 750W 2U High Efficiency Redundant Power Supply |
|
EX4M36-EXP | 750W 2U High Efficiency Redundant Power Supply |
|
EX3M16 | 750W 2U High Efficiency Redundant Power Supply |
|
D-300 | 750W 2U High Efficiency Redundant Power Supply |
|
D-300-MUSIC | 750W 2U High Efficiency Redundant Power Supply |
|
D-300-TS669 | 750W 2U High Efficiency Redundant Power Supply |
|
D-300A | 750W 2U High Efficiency Redundant Power Supply |
|
D-300A-TS669 | 750W 2U High Efficiency Redundant Power Supply |
|
D-300L | 750W 2U High Efficiency Redundant Power Supply |
|
D-300L-B6SA | 750W 2U High Efficiency Redundant Power Supply |
|
D-300LSE | 750W 2U High Efficiency Redundant Power Supply |
|
D-300L-TS669 | 750W 2U High Efficiency Redundant Power Supply |
|
D-300SE | 750W 2U High Efficiency Redundant Power Supply |
|
D-300SEA | 750W 2U High Efficiency Redundant Power Supply |
|
E-204L | 750W 2U High Efficiency Redundant Power Supply |
|
E-207L | 750W 2U High Efficiency Redundant Power Supply |
|
E-212L | 750W 2U High Efficiency Redundant Power Supply |
|
E2M10 | 750W 2U High Efficiency Redundant Power Supply |
|
E2M12 | 750W 2U High Efficiency Redundant Power Supply |
|
E2M4 | 750W 2U High Efficiency Redundant Power Supply |
|
EX2M8-750PD8G | 750W 2U High Efficiency Redundant Power Supply |
|
EX3M16-750PD8G | 750W 2U High Efficiency Redundant Power Supply |
|
EX2M8-60S2UP8 | 750W 2U High Efficiency Redundant Power Supply |
|
EX2M8-80S2UP8 | 750W 2U High Efficiency Redundant Power Supply |
|
EX3M16-60S2UP8 | 750W 2U High Efficiency Redundant Power Supply |
|
EX3M16-80S2UP8 | 750W 2U High Efficiency Redundant Power Supply |
|
D-200 | 750W 2U High Efficiency Redundant Power Supply |
|
D-200-T | 750W 2U High Efficiency Redundant Power Supply |
|
D-200L | 750W 2U High Efficiency Redundant Power Supply |
|
D-200L-T | 750W 2U High Efficiency Redundant Power Supply |
|
D-200SE | 750W 2U High Efficiency Redundant Power Supply |
|
D-200LSE | 750W 2U High Efficiency Redundant Power Supply |
|
D-200SEA | 750W 2U High Efficiency Redundant Power Supply |
|
D-300-95R3K8 | 750W 2U High Efficiency Redundant Power Supply |
|
E-204L-80S2UP8 | 750W 2U High Efficiency Redundant Power Supply |
|
E-204L-75S2UP8G | 750W 2U High Efficiency Redundant Power Supply |
|
E2M8HD | 750W 2U High Efficiency Redundant Power Supply |
|
E4M24HD | 750W 2U High Efficiency Redundant Power Supply |
|
E2M12HD | 750W 2U High Efficiency Redundant Power Supply |
|
U-280HD | 750W 2U High Efficiency Redundant Power Supply |
|
U-316HD | 750W 2U High Efficiency Redundant Power Supply |
|
E-306L | 750W 2U High Efficiency Redundant Power Supply |
