IX-550R2UPD8
550W 2U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- Power Failure Alarm & Signals
- High Efficiency 82% minimum
- PMBus Support
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
Product Introduction
XEAL dual AC input high efficiency 2U 550W redundant power supply IX-550R2UPD8. It offers your server and workstation zero down time with full 550W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with PMBus Support to provide a reliable power supply for your mission critical system integration.
| Model Number | IX-550R2UPD8 |
| RoHS Compliance | Yes |
| Output Wattage | 550 |
| Efficiency | 82% |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 10 SATA :: 4 Floppy :: 2 6pin PCIE :: 1 |
| Dimensions (WxHxD) | 3.45" x 3.31" x 8.54" 87.6 mm x 84.1 mm x 216.9 mm |
Parts & Accessories
| Image | Accessory | Description |

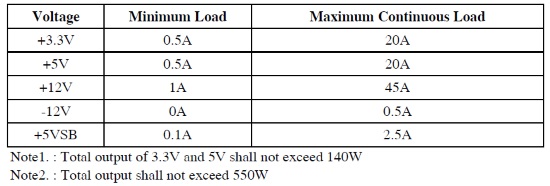

Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-200 | 550W 2U High Efficiency Redundant Power Supply |
|
D-200A-T | 550W 2U High Efficiency Redundant Power Supply |
|
D-200L | 550W 2U High Efficiency Redundant Power Supply |
|
D-200L-T | 550W 2U High Efficiency Redundant Power Supply |
|
D-200-T | 550W 2U High Efficiency Redundant Power Supply |
|
D-200SE | 550W 2U High Efficiency Redundant Power Supply |
|
D-200LSE | 550W 2U High Efficiency Redundant Power Supply |
|
D-200SEA | 550W 2U High Efficiency Redundant Power Supply |
|
D-300 | 550W 2U High Efficiency Redundant Power Supply |
|
D-300A | 550W 2U High Efficiency Redundant Power Supply |
|
D-300L | 550W 2U High Efficiency Redundant Power Supply |
|
D-300L-B6SA | 550W 2U High Efficiency Redundant Power Supply |
|
D-300-MUSIC | 550W 2U High Efficiency Redundant Power Supply |
|
D-300SE | 550W 2U High Efficiency Redundant Power Supply |
|
D-300LSE | 550W 2U High Efficiency Redundant Power Supply |
|
D-300-TS669 | 550W 2U High Efficiency Redundant Power Supply |
|
D-300A-TS669 | 550W 2U High Efficiency Redundant Power Supply |
|
D-300L-TS669 | 550W 2U High Efficiency Redundant Power Supply |
|
D-300-BK-TS669 | 550W 2U High Efficiency Redundant Power Supply |
|
D-300SEA | 550W 2U High Efficiency Redundant Power Supply |
|
D-300L-SD | 550W 2U High Efficiency Redundant Power Supply |
|
D-300-95R3K8 | 550W 2U High Efficiency Redundant Power Supply |
|
U-280HD | 550W 2U High Efficiency Redundant Power Supply |
|
U-316HD | 550W 2U High Efficiency Redundant Power Supply |
