IS-950R3NPD8
Build-to-Order - 950W 80 Plus PS2 Mini Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- Power Failure Alarm & Signals
- High Efficiency 80% minimum
- PMBus Support
Product Introduction
XEAL trial AC input PS2 mini 950W redundant power supply with 80 PLUS certified IS-950R3NPD8. It offers your server and workstation zero down time with full 950W power redundancy. Active PFC, Automatic Fan Thermal Control, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. This is a new generation power supply with 80 PLUS certified and PMBus Support to provide a reliable power supply for your mission critical system integrations.
| Model Number | IS-950R3NPD8 |
| RoHS Compliance | Yes |
| Output Wattage | 950 |
| Efficiency | 80% Min |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 10 Floppy :: 2 |
| Dimensions (WxHxD) | 5.91" x 3.39" x 11.42" 150.1 mm x 86.1 mm x 290.1 mm |
Parts & Accessories
| Image | Accessory | Description |
|
IS-500E | 500W Redundant Power Supply Module for IS-500R2UPD8/ IS-950R3KPD8/ IS-950R3NPD8 |
|

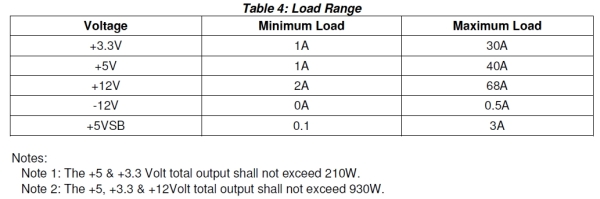

Output
FAQ
| Q : | What is PMBus? |
| A : |
PMBus is an open- standard digital power-management protocol with a fully defined command language that facilitates communication with power converters and other devices in a power system. It simply allows digital control of a power supply over a specified physical bus, communications protocol, and command language.
The benefit of PMBus:
400 kHz bus speeds are allowed
In PMBus, blocks may include up to 255 bytes
Some commands use the SMBus 2.0 block process calls.
An "extended command" protocol is defined, using a second command byte to add 256 more codes each for both standard and manufacturer-specific commands. |
| Q : | What is 80 PLUS? |
| A : |
Please refer to the document.
|
| Q : | There are different indicators. What do they stand for? |
| A : |
Blinking Green: Standby
Solid Green: Operating
Red: Fail
|
