IS-600S2UP
EOL - 600W 2U Redundant Power Supply
- Universal Input, Active PFC
- Efficiency: 75% at Full Load
- Industrial Japanese Components 40 deg.C temperature
- Automatic Fan Thermal Control
- Backward Compatibility, -5V Available
- Industrial DIN-Connector for Reliability
- Remote Sensor on +5V & +3.3V
- Power Failure Alarm & Signals
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- MTBF > 100,000 Hours
Product Introduction
XEAL dual AC input 2U 600W Redundant Power Supply IS-600S2UP. It offers your server and workstation zero down time with full 600W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
| Model Number | IS-600S2UP |
| RoHS Compliance | Yes |
| Output Wattage | 600 |
| Efficiency | Min 75% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 8 SATA :: 4 Floppy :: 2 |
| Dimensions (WxHxD) | 3.98" x 3.31" x 11.42" 101.1 mm x 84.1 mm x 290.1 mm |
| Notes | - LED indicators: GREEN LED - power on, RED LED - defective, AMBER LED - standby |
Parts & Accessories
| Image | Accessory | Description |
|
IS-600P | 600W 1U/2U Redundant Power Supply Module for IS-600S2UP/ IS-1800RH1UP |

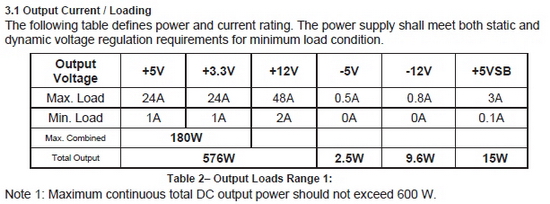

Output
FAQ
| Q : | What are the functionalities of orange/black, yellow/black, and blue/black cables? |
| A : |
Orange/black cable is total PFD signal (TTL signal, Power Failure Detection). It indicates total power condition. Yellow/black cable is PW1 (power module 1) PFD signal. Blue/black cable is PW2 (power module 2) PFD signal. Connecting cables to LED Indicators, it indicates power supply condition is normal when LED is ON and defective when LED is OFF. |
| Q : | What is the fan noise level? |
| A : |
50 dBA. |
Featured Videos
There are currently no iStarVideos for this Item.
Compatible Chassis
| Model # | Description | |
|
D-200 | EOL - 600W 2U Redundant Power Supply |
|
D-200A-T | EOL - 600W 2U Redundant Power Supply |
|
D-200L | EOL - 600W 2U Redundant Power Supply |
|
D-200L-T | EOL - 600W 2U Redundant Power Supply |
|
D-200-T | EOL - 600W 2U Redundant Power Supply |
|
D2-200 | EOL - 600W 2U Redundant Power Supply |
|
D2-200L-M4SA | EOL - 600W 2U Redundant Power Supply |
|
D2-300 | EOL - 600W 2U Redundant Power Supply |
|
D2-300L-M6SA | EOL - 600W 2U Redundant Power Supply |
|
D-300 | EOL - 600W 2U Redundant Power Supply |
|
D-300A | EOL - 600W 2U Redundant Power Supply |
|
D-300L | EOL - 600W 2U Redundant Power Supply |
|
D-300L-B6SA | EOL - 600W 2U Redundant Power Supply |
|
D-300-MUSIC | EOL - 600W 2U Redundant Power Supply |
|
D3-200L | EOL - 600W 2U Redundant Power Supply |
|
D3-300L | EOL - 600W 2U Redundant Power Supply |
|
E-204L | EOL - 600W 2U Redundant Power Supply |
|
E-207L | EOL - 600W 2U Redundant Power Supply |
|
E-207L-25M10SA | EOL - 600W 2U Redundant Power Supply |
|
E-207L-25M12SA | EOL - 600W 2U Redundant Power Supply |
|
E-207L-25M14SA | EOL - 600W 2U Redundant Power Supply |
|
E-207L-25M8SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M10SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M12SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M14SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M16SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M18SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M20SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M24SA | EOL - 600W 2U Redundant Power Supply |
|
E-212L-25M8SA | EOL - 600W 2U Redundant Power Supply |
|
E2M12 | EOL - 600W 2U Redundant Power Supply |
|
E2M4 | EOL - 600W 2U Redundant Power Supply |
|
E2M4-25M2SA | EOL - 600W 2U Redundant Power Supply |
|
E2M4-2M1 | EOL - 600W 2U Redundant Power Supply |
|
E2M4-2T7SA | EOL - 600W 2U Redundant Power Supply |
|
E2M8 | EOL - 600W 2U Redundant Power Supply |
|
E-306L | EOL - 600W 2U Redundant Power Supply |
|
E3M16 | EOL - 600W 2U Redundant Power Supply |
|
V-2-M8SA | EOL - 600W 2U Redundant Power Supply |
|
V-3-M16SA | EOL - 600W 2U Redundant Power Supply |
|
D-200SE | EOL - 600W 2U Redundant Power Supply |
|
D-200LSE | EOL - 600W 2U Redundant Power Supply |
|
D-300LSE | EOL - 600W 2U Redundant Power Supply |
|
E2M10 | EOL - 600W 2U Redundant Power Supply |
|
D200-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D200-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D200L-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D200L-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D200SE-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D200SE-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D200LSE-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D200LSE-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D300-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D300-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D300SE-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D300SE-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D300L-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D300L-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D300LSE-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D300LSE-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D300LB6-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
D300LB6-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M4-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M4-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M8-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M8-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M10-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
E2M10-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E204L-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
E204L-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E306L-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
E306L-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
V2M8-24R-40R2U | EOL - 600W 2U Redundant Power Supply |
|
V2M8-24R-46R2U | EOL - 600W 2U Redundant Power Supply |
|
E204L-M1B3BK | EOL - 600W 2U Redundant Power Supply |
|
|
E204L-M1B3BL | EOL - 600W 2U Redundant Power Supply |
|
|
E204L-M1B3RD | EOL - 600W 2U Redundant Power Supply |
|
|
E204L-M1B3SL | EOL - 600W 2U Redundant Power Supply |
|
E306L-DE4 | EOL - 600W 2U Redundant Power Supply |
|
E204L-M1B3SA | EOL - 600W 2U Redundant Power Supply |
|
E306L-DE6 | EOL - 600W 2U Redundant Power Supply |
|
E306L-B5SA | EOL - 600W 2U Redundant Power Supply |
|
|
D-300A-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300-BK-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300-BL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300-RD-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300-SL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
|
D-300A-BK-TS669 | EOL - 600W 2U Redundant Power Supply |
|
|
D-300A-BL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
|
D-300A-RD-TS669 | EOL - 600W 2U Redundant Power Supply |
|
|
D-300A-SL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-BK-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-BL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-RD-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-SL-TS669 | EOL - 600W 2U Redundant Power Supply |
|
D-300-TS669 | EOL - 600W 2U Redundant Power Supply |
|
|
D200-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D200L-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D200SE-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D300-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D300L-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
E2M4-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
E204L-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
E306L-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
E2M10-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
E2M8-40R2UP-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
V2M8-40R2UP-RAIL28 | EOL - 600W 2U Redundant Power Supply |
|
|
D200LSE-40R2U-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D300L-B6PL-40R-RL24 | EOL - 600W 2U Redundant Power Supply |
|
|
D300LSE-40R2U-RAIL24 | EOL - 600W 2U Redundant Power Supply |
|
RD-3410T | EOL - 600W 2U Redundant Power Supply |
|
V-3-M16SA-RED | EOL - 600W 2U Redundant Power Supply |
|
E306L-DE5 | EOL - 600W 2U Redundant Power Supply |
|
E306L-DE10 | EOL - 600W 2U Redundant Power Supply |
|
E-204V2-L | EOL - 600W 2U Redundant Power Supply |
|
E-306V2-L | EOL - 600W 2U Redundant Power Supply |
|
RG-3400T | EOL - 600W 2U Redundant Power Supply |
|
D-200SEA | EOL - 600W 2U Redundant Power Supply |
|
D-200SEA-BK | EOL - 600W 2U Redundant Power Supply |
|
D-200SEA-RD | EOL - 600W 2U Redundant Power Supply |
|
D-200SEA-SL | EOL - 600W 2U Redundant Power Supply |
|
|
STAR200 | EOL - 600W 2U Redundant Power Supply |
|
|
STAR300 | EOL - 600W 2U Redundant Power Supply |
|
E306V2L-DE8 | EOL - 600W 2U Redundant Power Supply |
|
E306V2L-DE8BK | EOL - 600W 2U Redundant Power Supply |
|
E306V2L-DE8BL | EOL - 600W 2U Redundant Power Supply |
|
E306V2L-DE8RD | EOL - 600W 2U Redundant Power Supply |
|
E306V2L-DE8SL | EOL - 600W 2U Redundant Power Supply |
|
D-300-35 | EOL - 600W 2U Redundant Power Supply |
|
D-300L-SD | EOL - 600W 2U Redundant Power Supply |
|
|
D-395 | EOL - 600W 2U Redundant Power Supply |
|
D-395-DE15 | EOL - 600W 2U Redundant Power Supply |
|
EX2M8 | EOL - 600W 2U Redundant Power Supply |
|
EX3M16 | EOL - 600W 2U Redundant Power Supply |
|
EX4M24 | EOL - 600W 2U Redundant Power Supply |
|
EX4M36-EXP | EOL - 600W 2U Redundant Power Supply |
|
EX2M8-750PD8G | EOL - 600W 2U Redundant Power Supply |
|
EX3M16-750PD8G | EOL - 600W 2U Redundant Power Supply |
|
EX2M8-60S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
EX2M8-80S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
EX3M16-60S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
EX3M16-80S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
D-200L-60S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
D-200L-80S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
D-200L-75S2UP8G | EOL - 600W 2U Redundant Power Supply |
|
D-200L-46R2U | EOL - 600W 2U Redundant Power Supply |
|
D-200L-60S2U | EOL - 600W 2U Redundant Power Supply |
|
D-300-95R3K8 | EOL - 600W 2U Redundant Power Supply |
|
E-306L-80R3K | EOL - 600W 2U Redundant Power Supply |
|
E-306L-95R3K8 | EOL - 600W 2U Redundant Power Supply |
|
E-204L-80S2UP8 | EOL - 600W 2U Redundant Power Supply |
|
E-204L-75S2UP8G | EOL - 600W 2U Redundant Power Supply |
|
E3M16V12 | EOL - 600W 2U Redundant Power Supply |
|
E2M8HD | EOL - 600W 2U Redundant Power Supply |
|
E2M12HD | EOL - 600W 2U Redundant Power Supply |
