IS-2U50PD8
Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply
- 80 Plus High Efficiency and Reliability
- 16ms Hold Up Time
- Over Current Protection
- Over Voltage Protection
- Short Circuit Protection
- Low Noise and Thermal-controlled Fan
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The IS-2U50PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and active PFC for industrial and high performance system requirement.
| Model Number | IS-2U50PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 500 |
| Efficiency | Min 80% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 4 SATA :: 2 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 7.87" 100.1 mm x 70.1 mm x 199.9 mm |
Parts & Accessories
| Image | Accessory | Description |

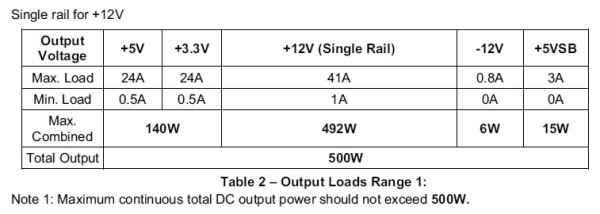

Output
FAQ
| Q : | What is the dBA of the power supply? |
| A : |
40.3 dBA Max. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-200 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200A-T | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-T | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200-T | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200SE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200LSE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D2-200 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D2-200L-M4SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300A | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300AS | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-B6SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-MUSIC | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300LSE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300ASE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SASE | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D2-300 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D2-300L-M6SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-207L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-212L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-204L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-306L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
V-3-M4SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4-25M2SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4-2T7SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M12 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4-2M1 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M10 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200L-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200L-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200SE-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200SE-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200LSE-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D200LSE-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300SE-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300SE-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300L-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300L-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300LSE-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300LSE-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300LB6-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D300LB6-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M4-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M8-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M8-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M10-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M10-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E204L-24R-40R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E204L-24R-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E204L-M1B3BK | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E204L-M1B3BL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E204L-M1B3RD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E204L-M1B3SL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306L-DE4 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E204L-M1B3SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306L-DE6 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306L-B5SA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-BK-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-BL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-RD-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-SL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-300A-BK-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-300A-BL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-300A-RD-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-300A-SL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-BK-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-BL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-RD-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-SL-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300A-TS669 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D200-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D200L-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D200SE-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D300-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D300L-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D300SE-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E2M4-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E204L-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E306L-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E2M10-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
E2M8-40R2UP-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D200LSE-40R2U-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D300L-B6PL-40R-RL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D300LSE-40R2U-RAIL24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
RG-3023H | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
RG-2210 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
RD-3410T | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
ASH-2210 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
ASH-3023H | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306L-DE5 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306L-DE10 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-204V2-L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-306V2-L | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200SEA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200SEA-BK | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200SEA-RD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200SEA-SL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SEA | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SEA-BK | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SEA-RD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300SEA-SL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
STAR200 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
STAR300 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8BK | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8BL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8RD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E306V2L-DE8SL | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-35 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-300S2 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-204 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300L-SD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
D-395 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-395-DE15 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX2M8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX3M16 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX4M24 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX2M8-750PD8G | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX3M16-750PD8G | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX2M8-60S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX2M8-80S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX3M16-60S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
EX3M16-80S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-60S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-80S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-75S2UP8G | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-46R2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-200L-60S2U | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
D-300-95R3K8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-306L-80R3K | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-306L-95R3K8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-204L-80S2UP8 | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E-204L-75S2UP8G | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
RG-2210-46R2UP | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
E2M8HD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
|
U-280HD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
|
U-316HD | Build-to-Order - 2U 500W 80 Plus High Efficiency Power Supply |
Providing technical support as our top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
