IS-1000R3NP
EOL - 1000W PS2 Mini Redundant Power Supply
- Universal Input, Active PFC
- Efficiency: 74% at Full Load
- Industrial Japanese Components 40 deg.C temperature
- Automatic Fan Thermal Control
- Backward Compatibility, -5V Available
- Industrial DIN-Connector for Reliability
- Remote Sense on +5V & +3.3V
- Power Failure Alarm & Signals
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- MTBF > 100,000 Hours
Product Introduction
XEAL triad AC input 4U 1000W Redundant Power Supply IS-1000R3NP. It offers your server and workstation zero down time with full 1000W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
| Model Number | IS-1000R3NP |
| RoHS Compliance | Yes |
| Output Wattage | 1000 |
| Efficiency | 74% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 8 SATA :: 4 Floppy :: 2 |
| Dimensions (WxHxD) | 5.91" x 3.35" x 11.42" 150.1 mm x 85.1 mm x 290.1 mm |
| Notes | - LED indicators: GREEN LED - power on, RED LED - defective, AMBER LED - standby |
Parts & Accessories
| Image | Accessory | Description |
|
IS-500R | 500W Redundant Power Supply Module for IS-1000R3KP/ IS-1000R3NP |

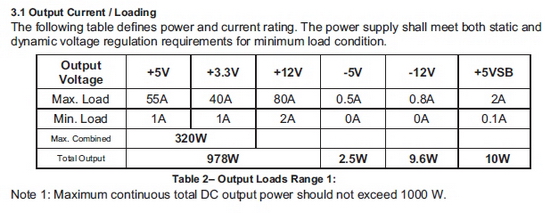

Output
FAQ
| Q : | What is the functionality of orange/black cable? |
| A : |
It is total PFD signal (TTL signal, Power Failure Detection). It indicates total power condition, normal - High and defective - Low. |
Featured Videos
There are currently no iStarVideos for this Item.
Compatible Chassis
| Model # | Description | |
|
D-400L-7SE | EOL - 1000W PS2 Mini Redundant Power Supply |
|
D2-400L-M10SA | EOL - 1000W PS2 Mini Redundant Power Supply |
|
D-414L-7 | EOL - 1000W PS2 Mini Redundant Power Supply |
|
E4M20 | EOL - 1000W PS2 Mini Redundant Power Supply |
|
