Product Detail

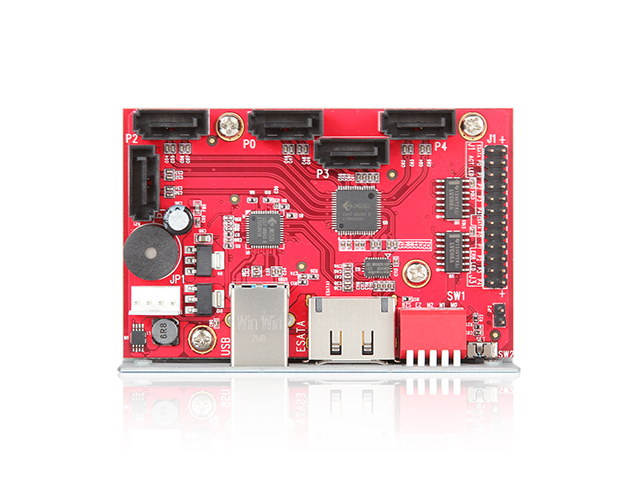

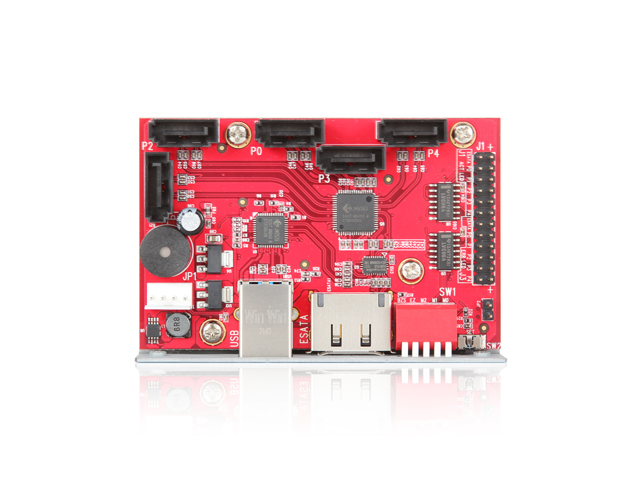

Build-to-Order - 5x SATA Drives to eSATA and USB3.0 with Hardware RAID Adapter

Supports SATA I/II Hard Drives, Optical Drives, and Blu-Ray Drives
Supports eSATA I, eSATA II, USB2.0 and USB3.0 host connection

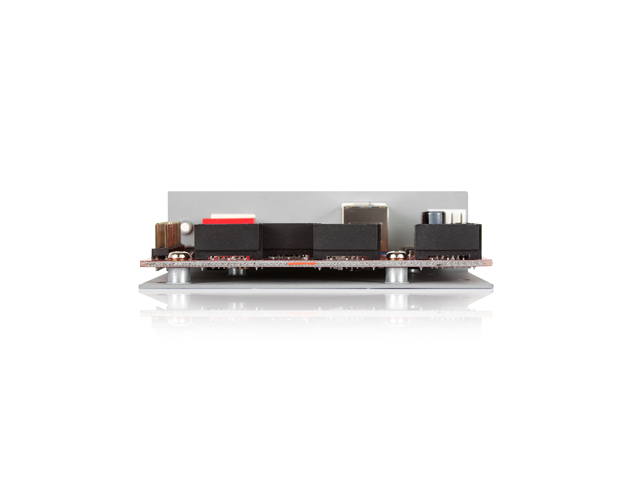

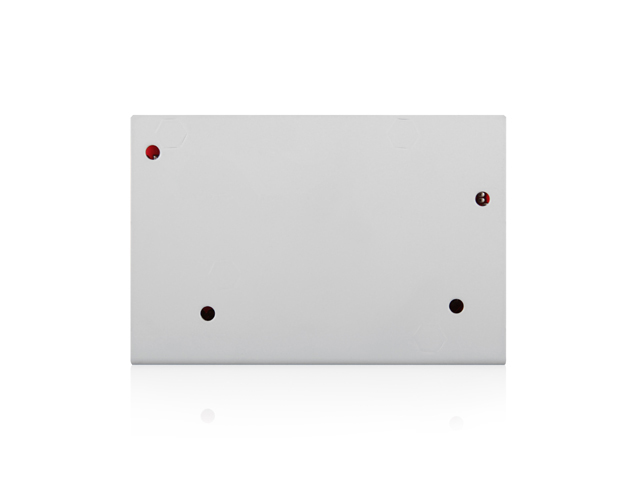

Hardware RAID Board with SCSI-1 (Centronic 50pin) Metal frame and Mounting hole
Hardware RAID controller on board for max performance
Supports RAID 0, RAID 1, RAID 3, RAID 5, RAID 10, JBOD (BigDrive mode), Clone, Individual Drives (PM mode)
DIP Switch on board for easy Hardware RAID configuration
Supports Hot-swapping
12 LED Pin Headers for active LED of Host & 5 SATA devices
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
Supports SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transfer rate
Supports Windows 7, Vista, XP, 2003, 2008, Mac OS X and Linux kernel 2.4 and above for software utility (RAID management and configuration)
OS independent
Support 48-bit LBA addressing
Supports Native Command Queue (NCQ)
Supports individual drive mode via eSATA* or USB connection
independent drive configuration and optical drive are supported via eSATA only when connecting to controllers that are Port Multiplier compatible
eSATA Chipset: JMicron JMB393

Product Introduction

Model Number	ZAGE-D-ESAU3-R
RoHS Compliance	Yes
Dimensions (WxHxD)	2.20" x 0.90" x 3.40" 55.9 mm x 22.9 mm x 86.4 mm
Notes	- only one hard drive can be recognized via eSATA connection in Individual Drive Mode if the eSATA host controller does not support Port Multiplier function
