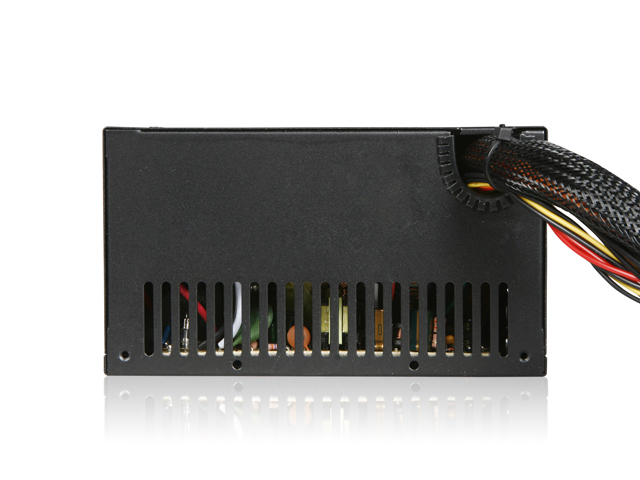

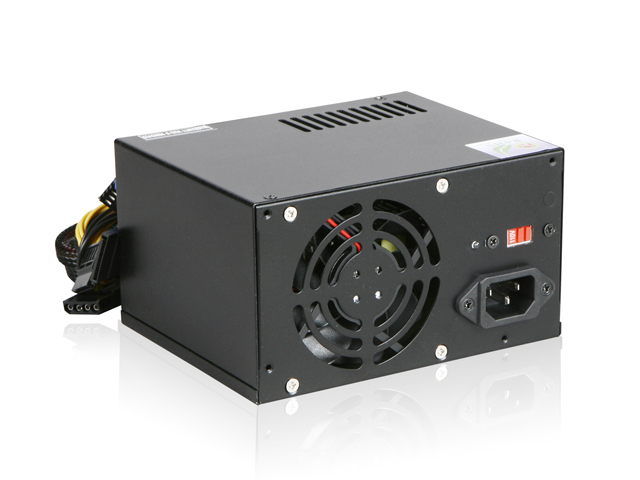

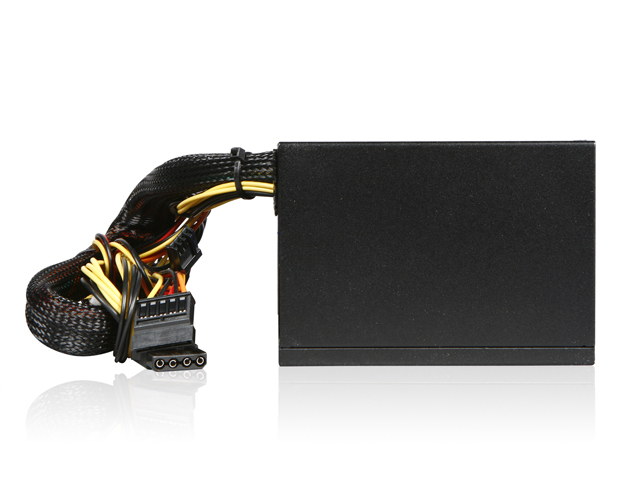

TC-350PD3
Special Order - 350W PS3 Size ATX12V Switching Power Supply
- Complies with Micro ATX and ATX 12V Standard
- Output over Voltage, Short Circuit, and Over Current Protection
- Compact Size
- 100% Hi-pot, ATE, and Burn-in Tested
- MTBF: 100,000 hours on Max load at 25 deg.C
Product Introduction
Introduce the industrial graded TC-350PD3 PS3 350W switching power supply. Design to fit perfectly into your Tower or 4U compact rackmount chassis. Feature such as compact size, thermal fan speed control, and triple circuit protections.TC-350PD3 is a compact and reliable PS3 power supply.
| Model Number | TC-350PD3 |
| RoHS Compliance | Yes |
| Output Wattage | 350 |
| Connector Type | Main Connector :: 20+4 pin 4+4pin 12V :: 1 6+2 Pin PCIE :: 1 Molex :: 3 SATA :: 4 Floppy :: 1 6pin PCIE :: 1 |
| Dimensions (WxHxD) | 6.00" x 3.40" x 4.65" 152.4 mm x 86.4 mm x 118.1 mm |
Parts & Accessories
| Image | Accessory | Description |
Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
D-202S-T | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|

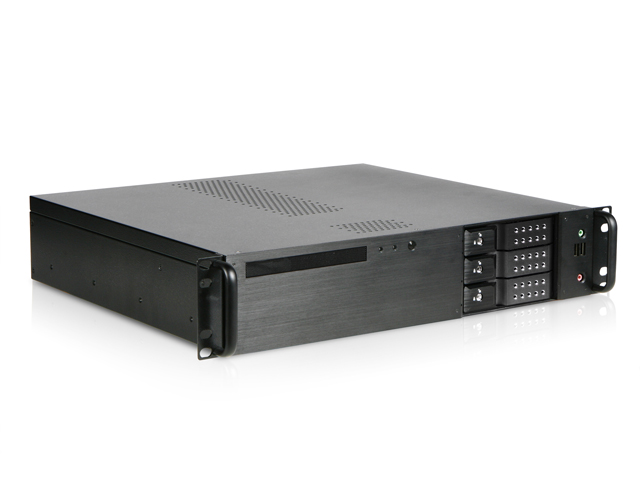

D-230H-T | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230H-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230H-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230H-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-303S-T | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340H-DT | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350H-DT | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230H-DT | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-303S-DT | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-202S-DT | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HB-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HB-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HB-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-340HN-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HN-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-340HN-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HB-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HB-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HB-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HB-T-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HB-T-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HB-T-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-DT-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HN-DT-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-230HB-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-230HB-DT-Red | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
|
D-230HB-DT-Silver | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HN-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HN-DT-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HN-DT-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HB-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-340HB-DT-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-DT-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
D-350HN-DT-SILVER | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|

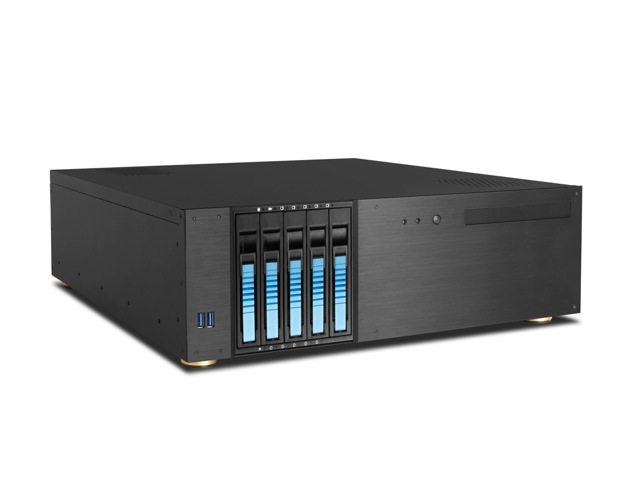

D-350HB-DT-BLUE | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|

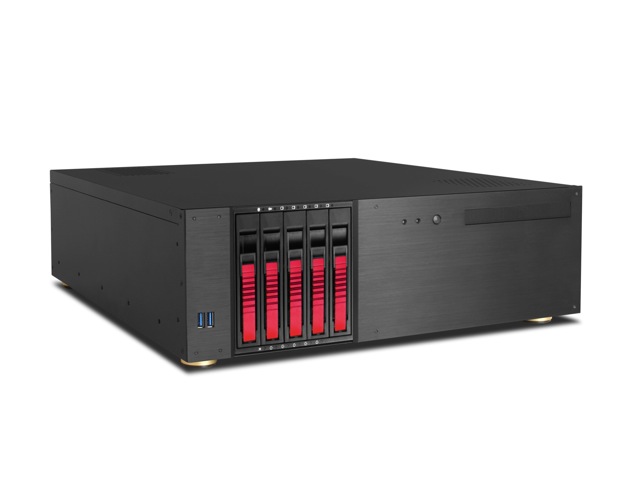

D-350HB-DT-RED | Special Order - 350W PS3 Size ATX12V Switching Power Supply |
|
