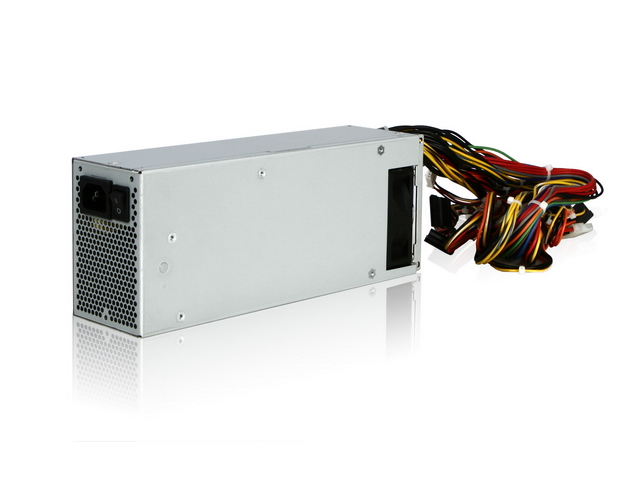

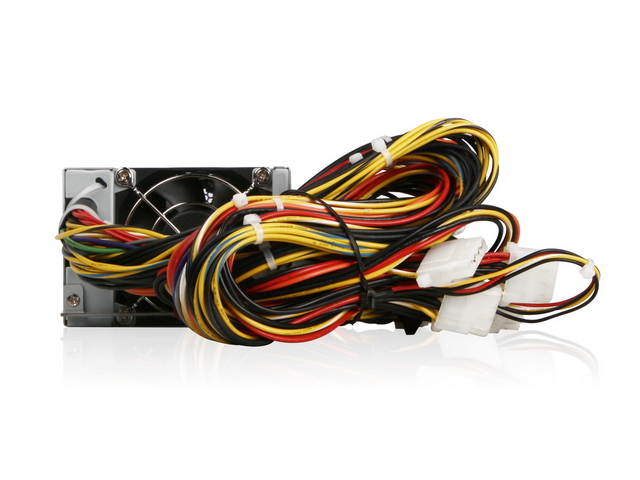

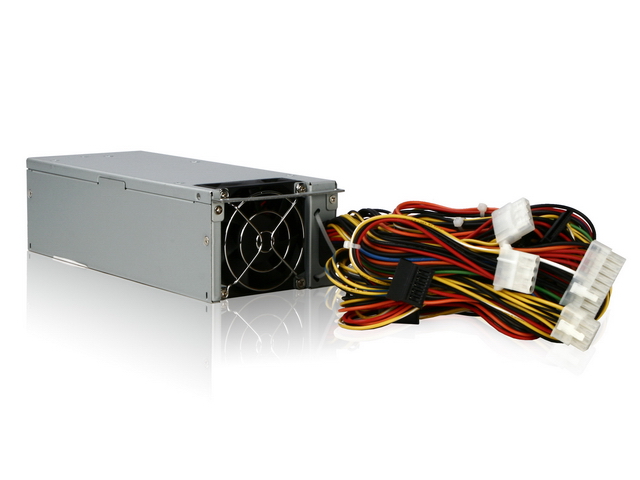

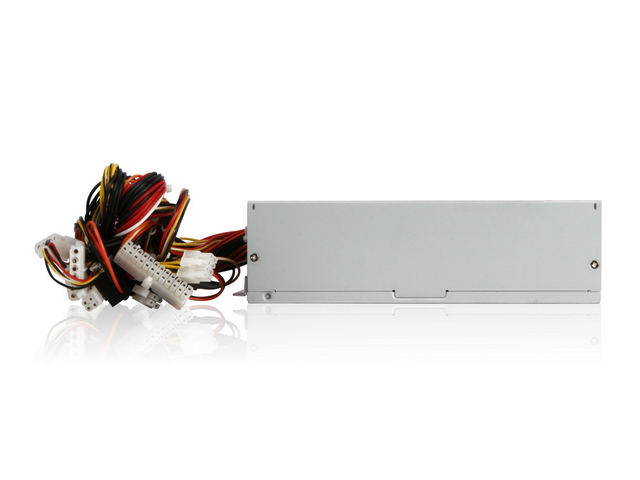

TC-2U50PD8
EOL - 500W 2U High Efficiency Switching Power Supply
- High Efficiency 82% minimum
- 16ms Hold Up Time
- Triple 12V Circuitry
- Low Noise Design <38dB @100% Load
- Over Current Protection
- Over Voltage Protection
- Short Circuits Protection
Product Introduction
XEAL 2U power supply series provide high performance in compact form factor. The TC-2U50PD8 supports server, compact PC, and space constrained application. Standard feature includes high efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.
| Model Number | TC-2U50PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 500 |
| Efficiency | 82% |
| Connector Type | Main Connector :: 24 pin 4+4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 4 SATA :: 4 Floppy :: 1 |
| Dimensions (WxHxD) | 3.94" x 2.76" x 9.45" 100.1 mm x 70.1 mm x 240.0 mm |
Parts & Accessories
| Image | Accessory | Description |
Output
FAQ
There are no FAQ entries for this model. |
