Product Detail

Build-to-Order - 3U 16-bay PCI-Express Rackmount JBOD Enclosures

Supports SAS/SATA (3Gbps)

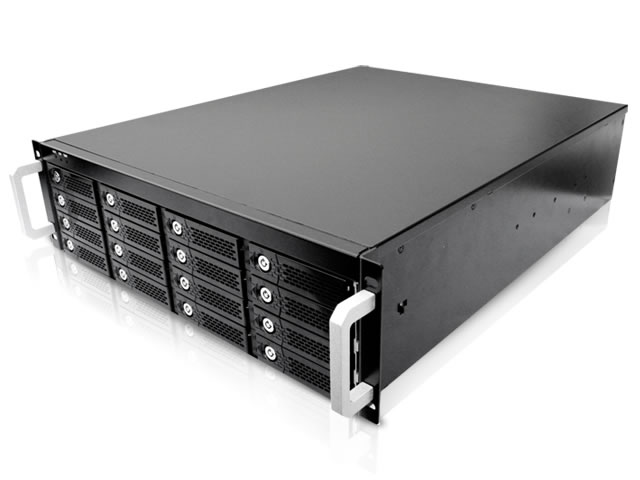

External 3U-16 Bay Rack-mount Chassis

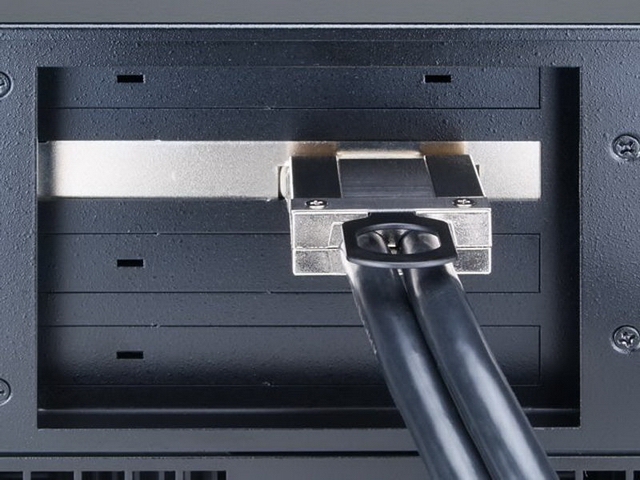

External PCI-e (PCI-Express) x8 Host Interface

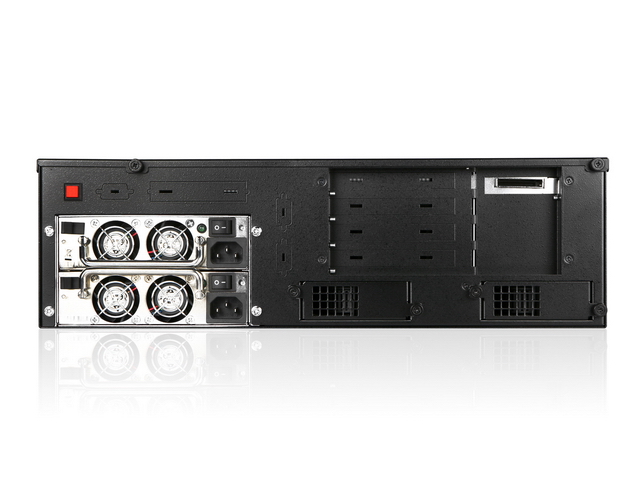

Dual Hot Swappable Power Supplies
Backplane Design for up to 16 Removable SAS/SATA Drive Trays
Individual key lock of each HDD tray for physical security

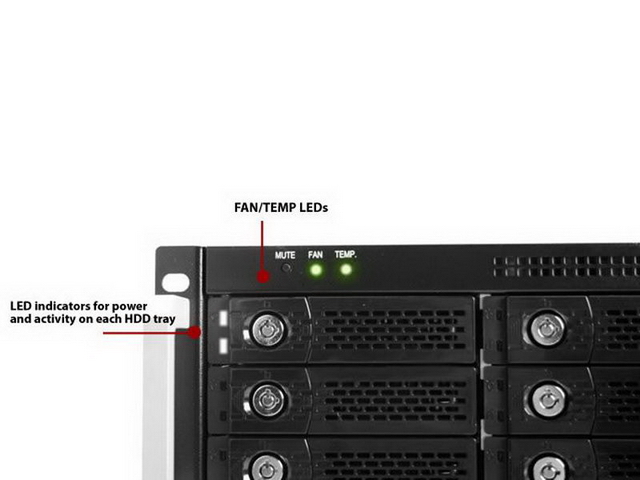

LED indicators for power and activity on each HDD tray
Environmental Monitoring with Power/FAN/TEMP LEDs and mutable buzzer alarm
Hot-Swap Both on Host and Device

Product Introduction

With the innovative architecture, MAGE316U40-PCI-E is designed to plug any standard SAS or SATA PCI-e Raid controller directly into its internal PCI-e slot and use its high speed external PCI-Express x8 (2GBps) as the host interface. MAGE316U40-PCI-E is an external 3U-16 Bay Hot-Swap SAS/SATA Rack-mount Enclosure. It provides users a most big storage capacity expansion solution for up to 16 SAS or SATA HDD and high performance external data storage solution for HD of 1080p video editing or any high resolution video platform. This 3U 16 Bay external SAS/SATA JBOD is designed with external PCI-e x 8 interface brings users an easy installation and enjoy fast data transmission experience.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	MAGE316U40-PCI-E
RoHS Compliance	Yes
Package Content	Enclosure x1, HDD Tray x16, PCI-e x8 Adapter Card x1, Power Cord x1, Manual CD x1, HDD mounting screws x64, Key for HDD tray x2
Dimensions (WxHxD)	19.00" x 5.16" x 23.50" 482.6 mm x 131.1 mm x 596.9 mm

Download

Data Sheet

User's Manual

Parts & Accessories

Image	Accessory	Description
	CAGE-AAM1MI-H	Build-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable
	CAGE-AAMMMI-H	Build-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
