Product Detail

COMING SOON - 4U 16-Bay Trayless JBOD Storage Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

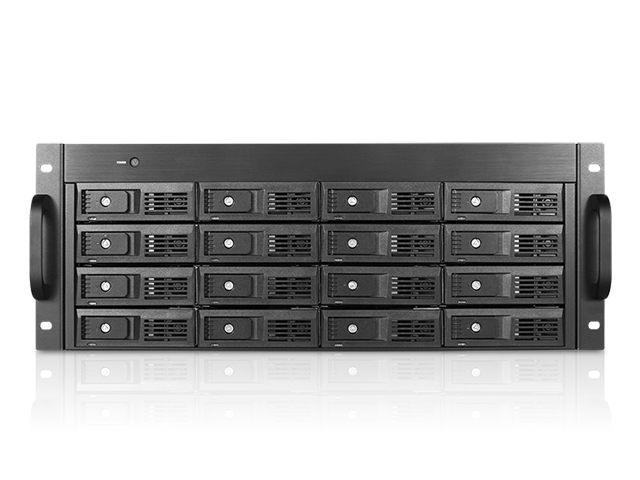

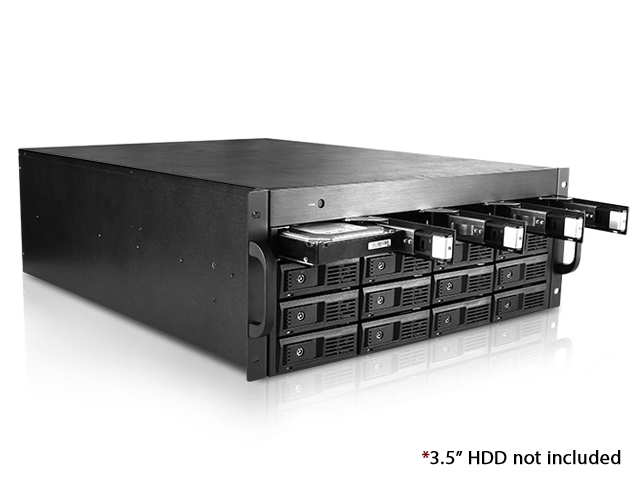

16 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless storage rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
Compatible with redundant power supplies
High density storage chassis

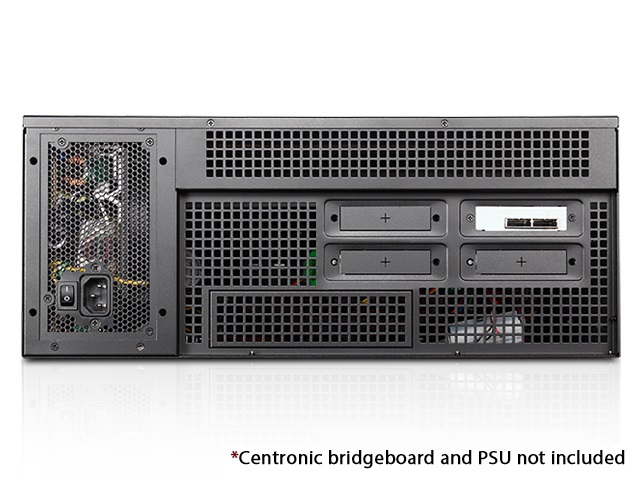

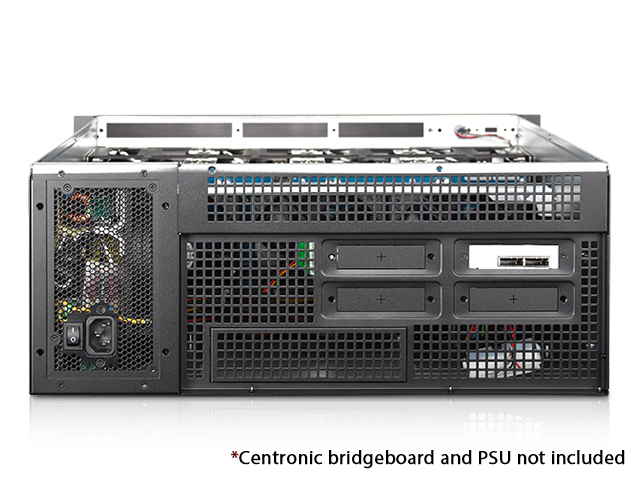

Centronics cut-outs to support various interface bridgeboards
Supports standard ATX power supplies
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The M-4160HD-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis has four HD miniSAS (SFF-8643) backplanes to support SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-4160HD-JB
RoHS Compliance	Yes
Dimensions (WxHxD)	19.02" x 7.00" x 22.83" 483.1 mm x 177.8 mm x 579.9 mm
Notes	- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply.

Download

Data Sheet

Parts & Accessories

Image	Accessory	Description

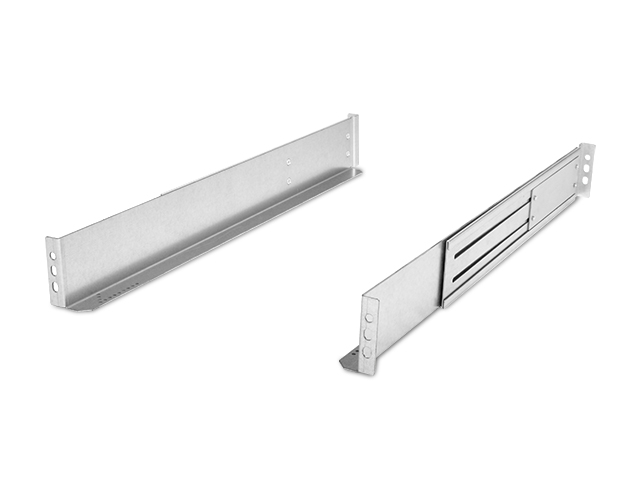

	RP-LRAIL-V	Adjustable L-shaped Rackmount Mounting Kit
	RP-RAIL-26-1UB	26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
