EOL - 3U 3.5" 12-Bay Trayless Storage Server Rackmount Chassis

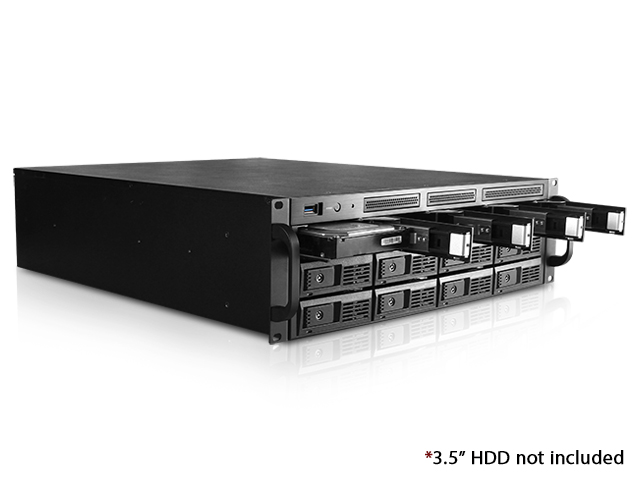

12 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless server rackmount

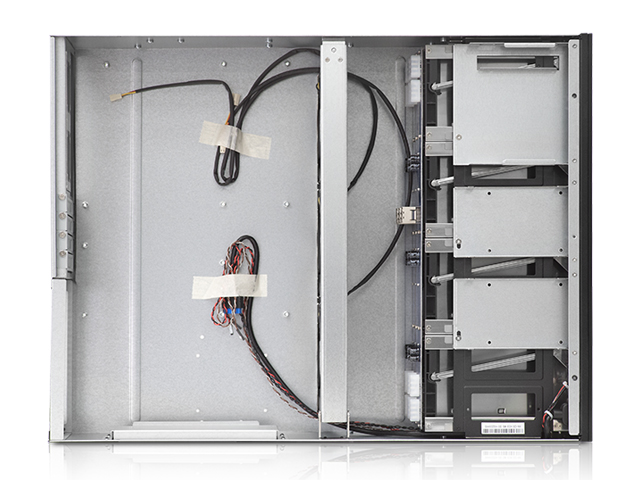

miniSAS (SFF-8087) backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
USB 3.0 in front for easy access
Supports standard ATX power supplies
Compatible with redundant power supplies
High density storage server chassis

Product Introduction

The M-3120-ATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis has three SFF-8087 connectors on the backplane to support the latest SAS and SATA hard drives and also is compatible with ATX and mini redundant power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-3120-ATX
RoHS Compliance	Yes
Dimensions (WxHxD)	19.01" x 5.25" x 22.83" 482.9 mm x 133.4 mm x 579.9 mm

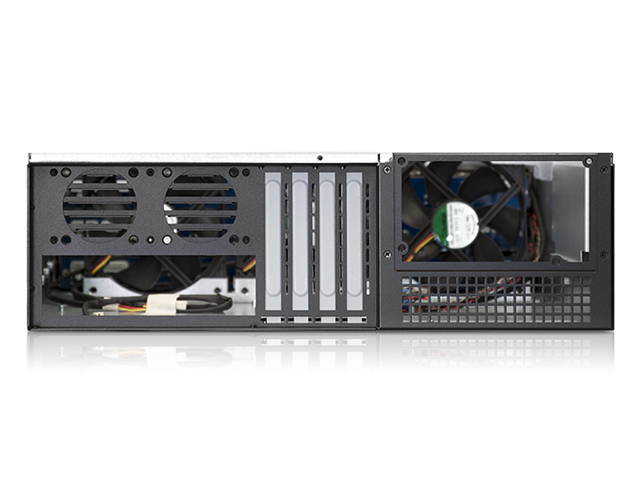

Notes	- only four expansion slots can be used with an ATX motherboard. - each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. - HDD backplane is compatible with SAS drives w/o SAS features supported.

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description

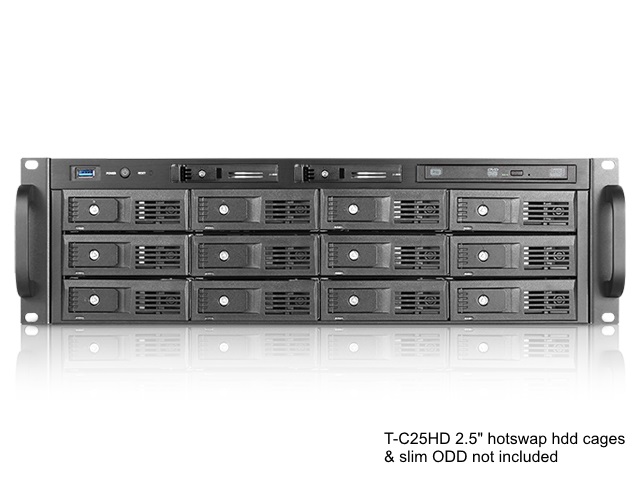

	T-C25HD	Custom Size Trayless 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	RP-LRAIL-V	Adjustable L-shaped Rackmount Mounting Kit
	RP-RAIL-26-1UB	26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
