Product Detail

2U 8-Bay Trayless Storage Server Rackmount Chassis 12Gb/s HDD SFF-8643 Backplane

8 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless server rackmount
HD miniSAS (SFF-8643) HDD Backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
USB 3.0 in front for easy access
Supports standard ATX power supplies
Compatible with redundant power supplies
High density storage server chassis
Supports 3.5" SAS I/II/III and SATA I/II/III HDD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

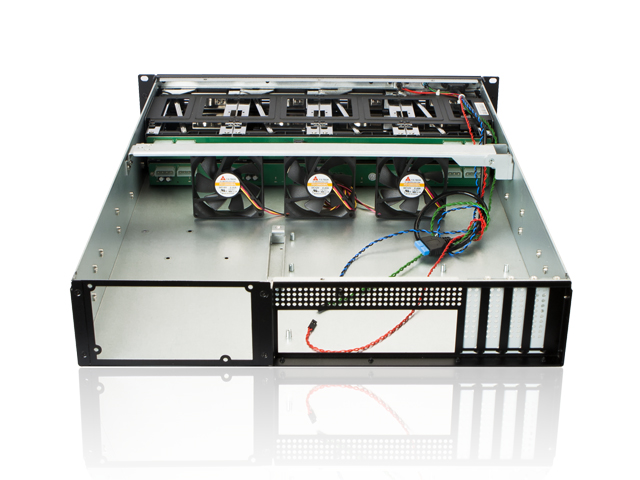

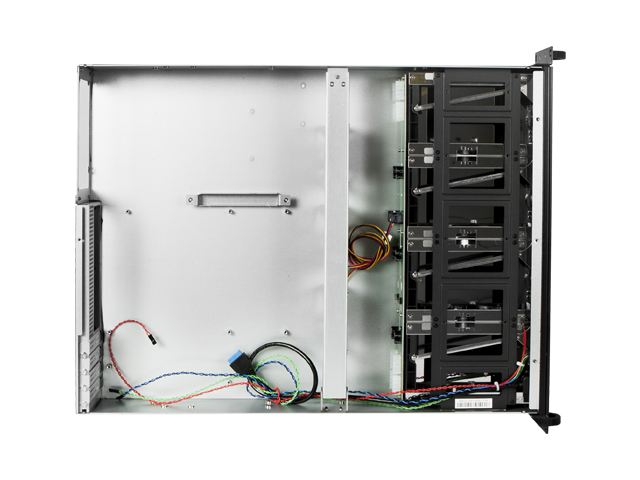

The M-280HD-MATX M series of trayless storage server rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage servers. The chassis is equipped with two HD miniSAS (SFF-8643) backplanes to support the latest SAS and SATA hard drives and also is compatible with ATX power supplies. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-280HD-MATX
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 3.47" x 22.80" 482.6 mm x 88.1 mm x 579.1 mm
Notes	- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply.

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	CAGE-AAMMMI50-H-90	Internal miniSAS SFF-8087 Right Angle 50cm Cable
	RP-RAIL-26-1UB	26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
