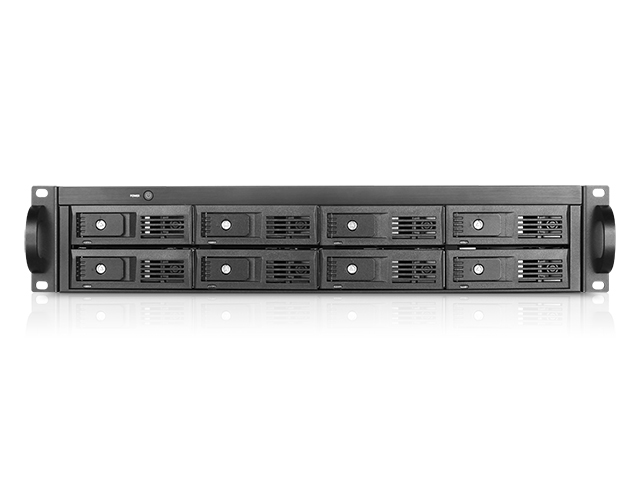

2U 3.5" 8-Bay Trayless JBOD Storage Rackmount Chassis

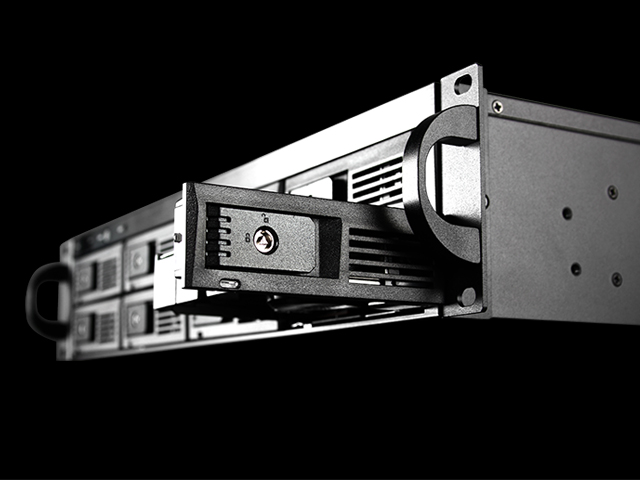

8 trayless hot-swappable bays for 3.5" HDDs
Worlds first trayless storage rackmount
miniSAS (SFF-8087) backplane
Metal key lock for HDD front bezel
Fully RoHS compliant
Compatible with redundant power supplies
High density storage chassis

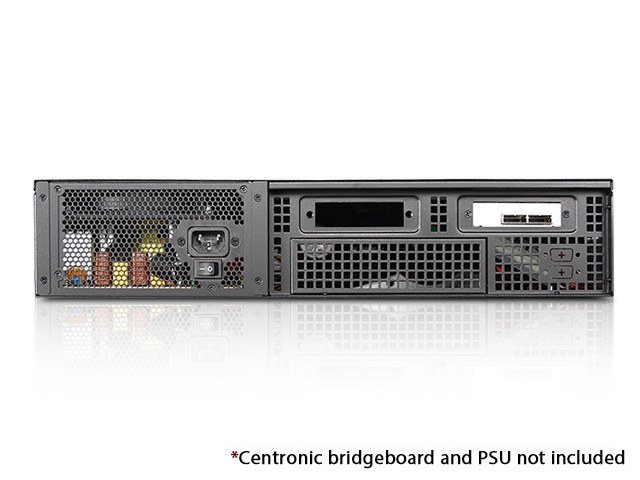

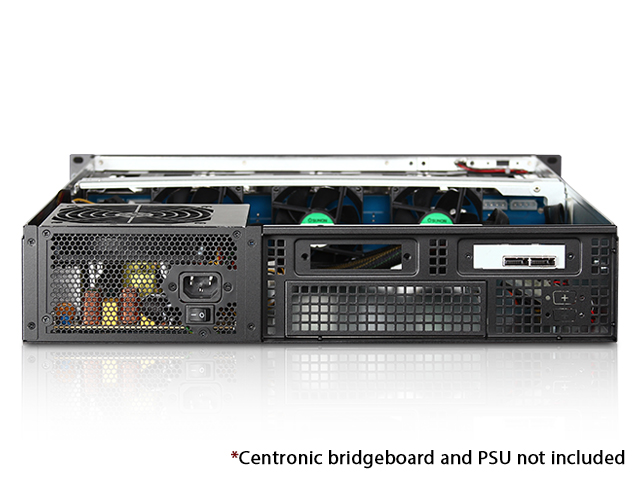

Centronics cut-outs to support various interface bridgeboards
Supports standard ATX power supplies

Product Introduction

The M-280-JB M series of trayless storage JBOD rackmounts not only have a compact size, but the trayless and hot-swappable 3.5" bays make this chassis a new breed of storage chassis. The chassis has two SFF-8087 connectors on the backplane to support SAS and SATA hard drives. The M series chassis are available in 1U, 2U, 3U, and 4U form factors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	M-280-JB
RoHS Compliance	Yes
Dimensions (WxHxD)	19.01" x 3.50" x 21.69" 482.9 mm x 88.9 mm x 550.9 mm

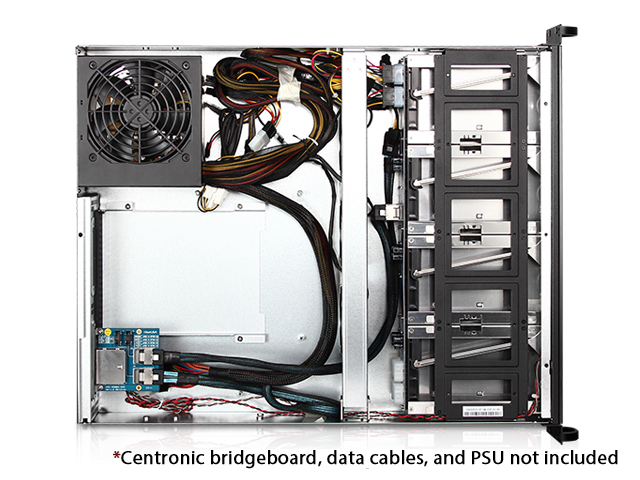

Notes	- each hdd backplane (for 4 hard drives) requires two Molex power connectors from the power supply. - HDD backplane is compatible with SAS drives w/o SAS features supported.

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	RP-RAIL-26-1UB	26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
