IS-760S2UPD8
760W 2U High Efficiency Redundant Power Supply
- Universal Input, Active PFC
- High Efficiency 80% minimum
- Power Failure Alarm & Signals
- OPP (Over Power Protection)
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
Product Introduction

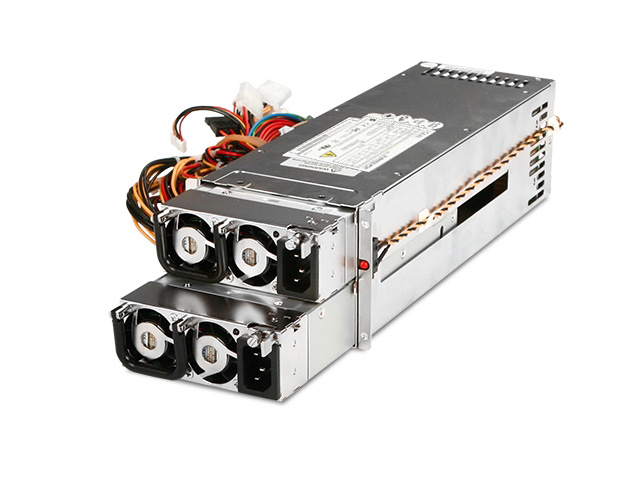

XEAL dual AC input 2U 760W Redundant Power Supply IS-760S2UPD8. It offers your server and workstation zero down time with full 760W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
| Model Number | IS-760S2UPD8 |
| RoHS Compliance | Yes |
| Output Wattage | 760 |
| Efficiency | Min 80% |

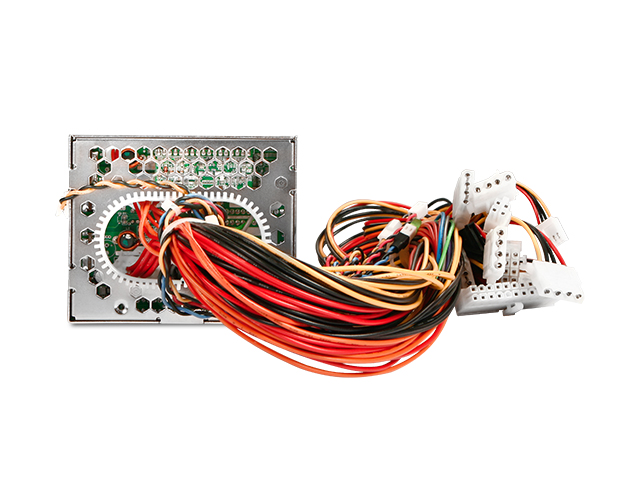

| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 2 Molex :: 6 SATA :: 2 Floppy :: 2 |
| Dimensions (WxHxD) | 3.98" x 3.31" x 11.81" 101.1 mm x 84.1 mm x 300.0 mm |
Parts & Accessories
| Image | Accessory | Description |
|
IS-600P | 600W 1U/2U Redundant Power Supply Module for IS-600S2UP/ IS-1800RH1UP |
Output
FAQ
There are no FAQ entries for this model. |
Featured Videos
Compatible Chassis
| Model # | Description | |
|
EX2M8 | 760W 2U High Efficiency Redundant Power Supply |
|
EX3M16 | 760W 2U High Efficiency Redundant Power Supply |
|
EX4M24 | 760W 2U High Efficiency Redundant Power Supply |
|
EX4M36-EXP | 760W 2U High Efficiency Redundant Power Supply |
|
EX2M8-750PD8G | 760W 2U High Efficiency Redundant Power Supply |
|
EX3M16-750PD8G | 760W 2U High Efficiency Redundant Power Supply |
|
EX2M8-60S2UP8 | 760W 2U High Efficiency Redundant Power Supply |
|
EX2M8-80S2UP8 | 760W 2U High Efficiency Redundant Power Supply |
|
EX3M16-60S2UP8 | 760W 2U High Efficiency Redundant Power Supply |
|
EX3M16-80S2UP8 | 760W 2U High Efficiency Redundant Power Supply |
|
E-204L | 760W 2U High Efficiency Redundant Power Supply |
|
E4M24HD | 760W 2U High Efficiency Redundant Power Supply |
