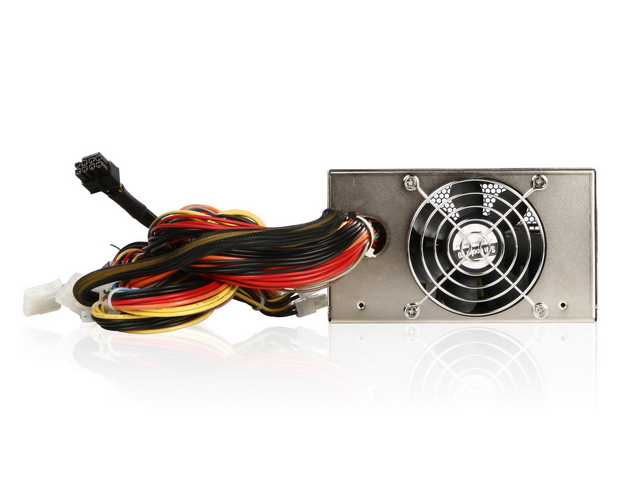

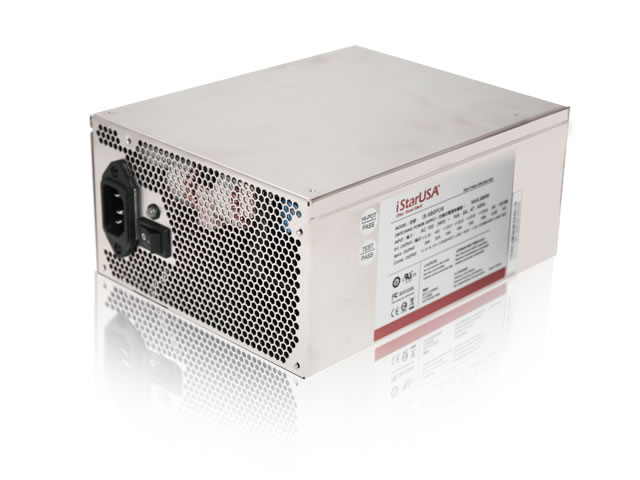

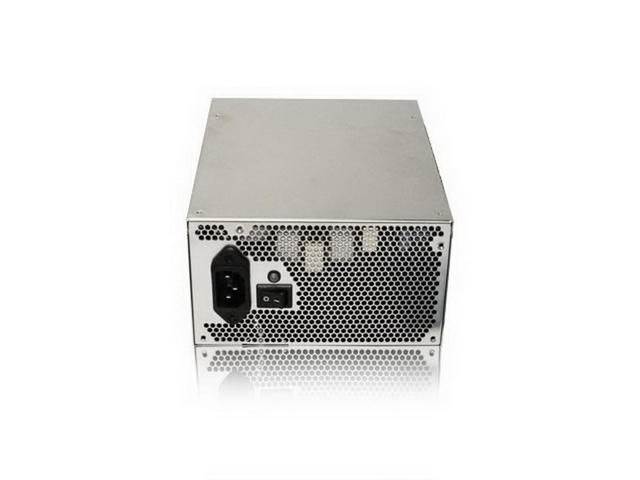

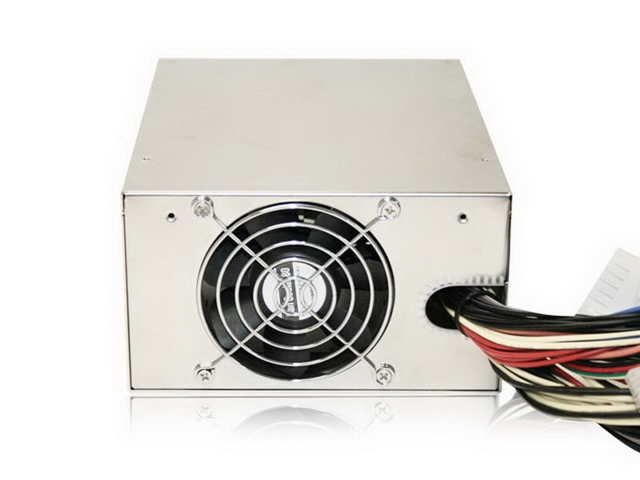

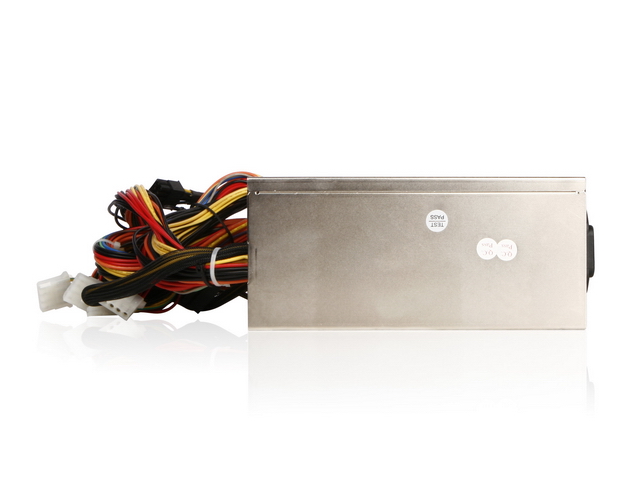

IS-680PD8
Build-to-Order - 680W PS2 ATX High Efficiency Switching Power Supply
- Universal Input, Active PFC
- High Efficiency 80% minimum
- Industrial Japanese Components 40 degrees temperature
- Industrial DIN-Connector for Reliability
- Remote Sensor on +5V & +3.3V
- OVP (Over Voltage Protection)
- OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- MTBF > 100,000 Hours
Product Introduction
The XEAL 80 Plus series switching power supply supports latest motherboard connectors of 20, 24, 8, and 4 pins. Standard PS2 form factor fits most ATX or 4U chassis. The 80 Plus means that at least 80 percent efficiency at 20, 50, and 100 percent loads, which saves users on electric bills and less cooling requirement. XEAL 80 Plus series is the ideal power supply for high-end workstation.
| Model Number | IS-680PD8 |
| RoHS Compliance | Yes |
| Output Wattage | 680 |
| Efficiency | 80% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 6 SATA :: 6 Floppy :: 2 |
| Dimensions (WxHxD) | 5.91" x 3.39" x 7.48" 150.1 mm x 86.1 mm x 190.0 mm |
Parts & Accessories
| Image | Accessory | Description |
Output
FAQ
| Q : | What is 80 PLUS? |
| A : |
Please refer to the document.
|
