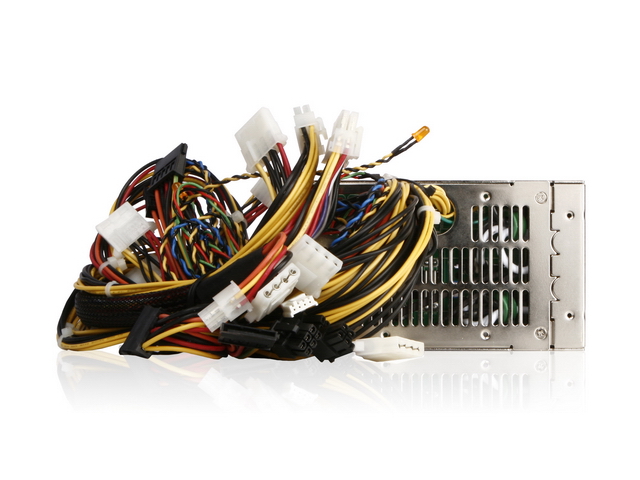

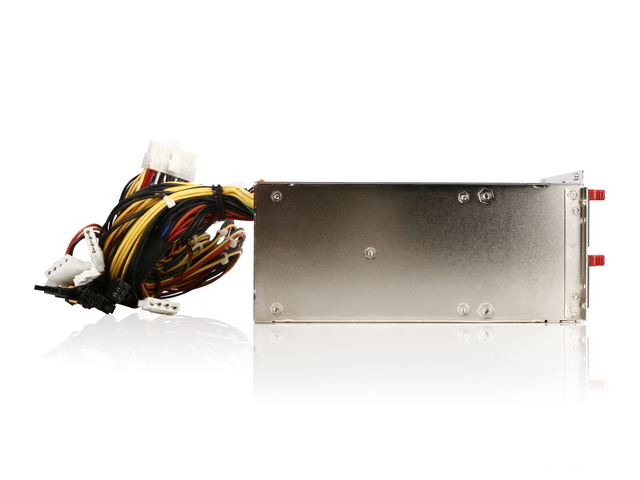

IS-550R8P
EOL - 550W PS2 Mini Redundant Power Supply
- Universal Input, Active PFC
- Efficiency: 74% at full load
- Industrial Japanese Components 40 deg.C temperature
- Automatic Thermal Control (reduce Fan Speed)
- Backward Compatibility, -5V Available
- Industrial DIN-Connector for Reliability
- Remote Sensor on +5v & +3.3V
- Power Failure Alarm & Signals
- Power Status LED on Module
- OVP (Over Voltage Protection) / module
- OVP (Over Voltage Protection)
- OCP (Over Current Protection) / module
- External OCP (Over Current Protection)
- SCP (Short Circuit Protection)
- MTBF > 100,000 Hours
Product Introduction
XEAL dual AC input Mini Redundant Power Supply IS-550R8P. It offers your server and workstation zero down time with full 550w power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. Standard PS2 form factor fits most ATX or 4U chassis. A good start for your mission critical system integrations.
| Model Number | IS-550R8P |
| RoHS Compliance | Yes |
| Output Wattage | 550 |
| Efficiency | 74% |
| Connector Type | Main Connector :: 20+4 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 8 SATA :: 4 Floppy :: 2 6pin PCIE :: 2 |
| Dimensions (WxHxD) | 5.91" x 3.35" x 7.83" 150.1 mm x 85.1 mm x 198.9 mm |
| Notes | - LED indicators: GREEN LED - power on, RED LED - defective, AMBER LED - standby |
Parts & Accessories
| Image | Accessory | Description |
Output
FAQ
| Q : | What are the functionalities of red/green/black, yellow/black, and blue/black cables? |
| A : |
Red/green/black cable is total PFD signal (TTL signal, Power Failure Detection). It indicates total power condition, normal - Green LED, standby - Yellow LED, defective - Red LED.
Yellow/black cable is PW1 (power module 1) PFD signal, normal - LED ON, defective - LED OFF. Blue/black cable is PW2 (power module 2) PFD signal, normal - LED ON, defective - LED OFF. |
| Q : | What is the fan noise level? |
| A : |
46 dBA |
Featured Videos
There are currently no iStarVideos for this Item.
Compatible Chassis
| Model # | Description | |
|
D2-400-7-BLUE | EOL - 550W PS2 Mini Redundant Power Supply |
|
D2-400L-M10SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D3-400L | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-2P | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-5 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-6-25M4SA | EOL - 550W PS2 Mini Redundant Power Supply |
|

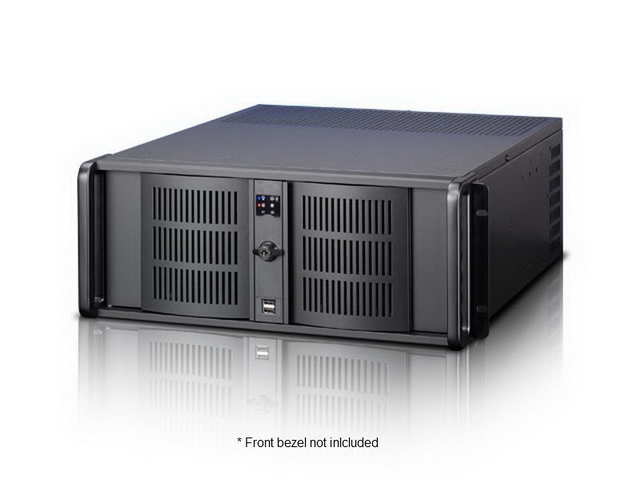

D-400-6-B6SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-6SE | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-6SE-B6SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-7 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-7P | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-7-TLB6SS | EOL - 550W PS2 Mini Redundant Power Supply |
|

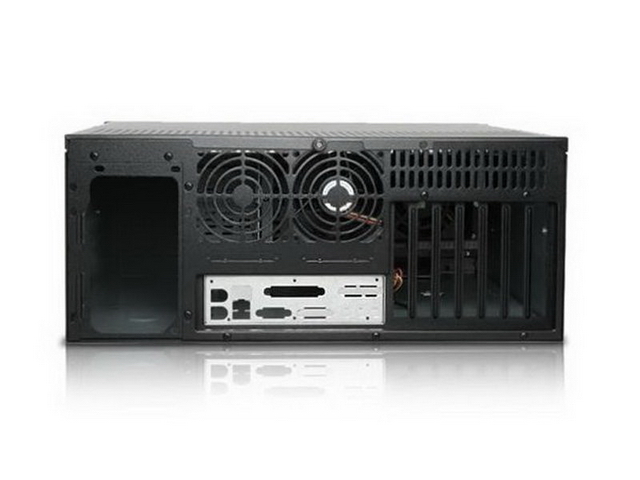

D-400-7-TLB8SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400A | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400A-6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400ASE | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-B10SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-B8SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400L-7 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400L-7SE | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400L-TL6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-PTS8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400SE | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-414 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-414-2P | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-414L-7 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D4-400-6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D7-400-6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
E-4000 | EOL - 550W PS2 Mini Redundant Power Supply |
|
E-4140 | EOL - 550W PS2 Mini Redundant Power Supply |
|
E-490-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
E4M20 | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-2M12EXP-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-2M8EXP-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-3M16EXP-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-3M16-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-4M20EXP-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-4M20-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
EA-4M24EXP-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-10000L | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-10L-TL23SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-10L-TL35SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-10-TL23SS | EOL - 550W PS2 Mini Redundant Power Supply |
|

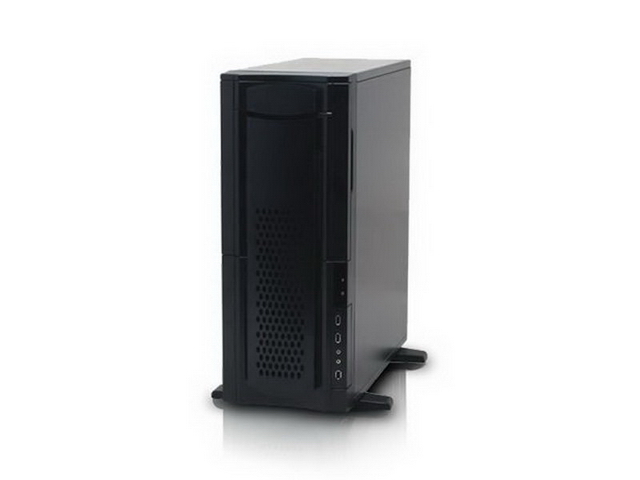

S-10-TL35SS | EOL - 550W PS2 Mini Redundant Power Supply |
|

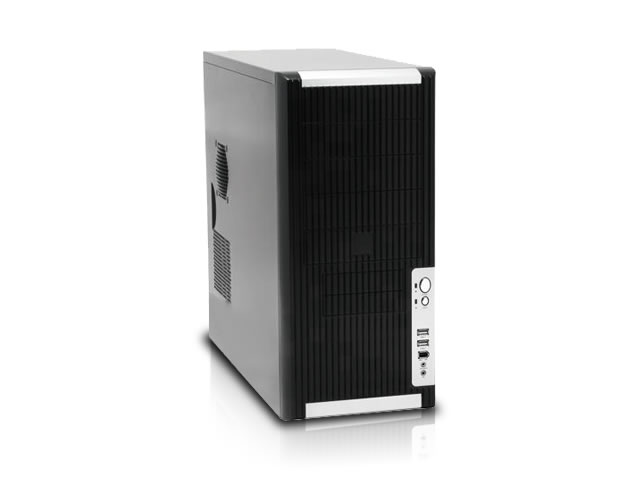

S-8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-8-TL23SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-8-TL35SS | EOL - 550W PS2 Mini Redundant Power Supply |
|

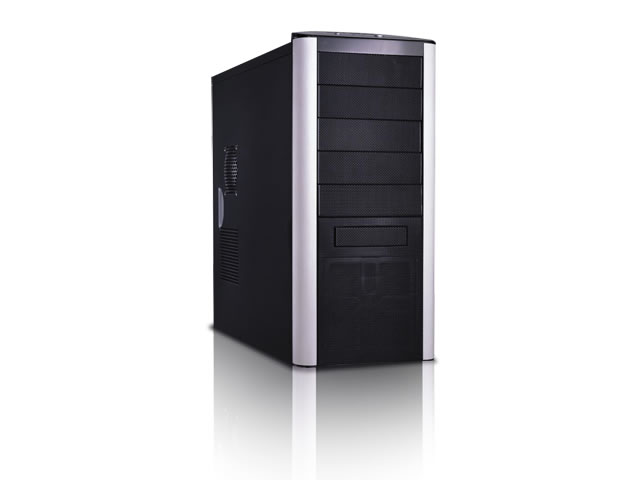

S-9 | EOL - 550W PS2 Mini Redundant Power Supply |
|

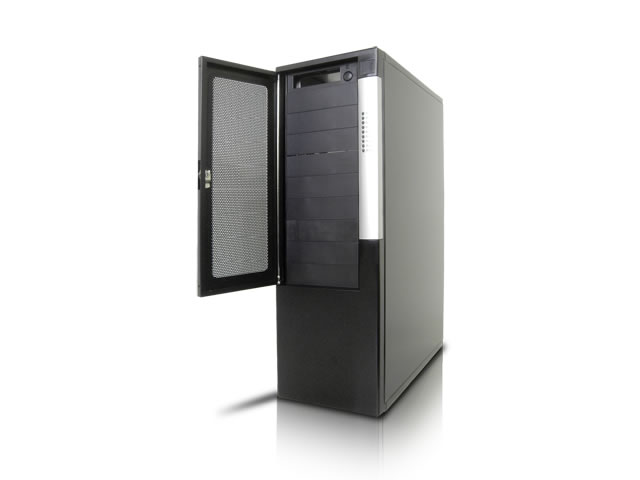

S-9000 | EOL - 550W PS2 Mini Redundant Power Supply |
|

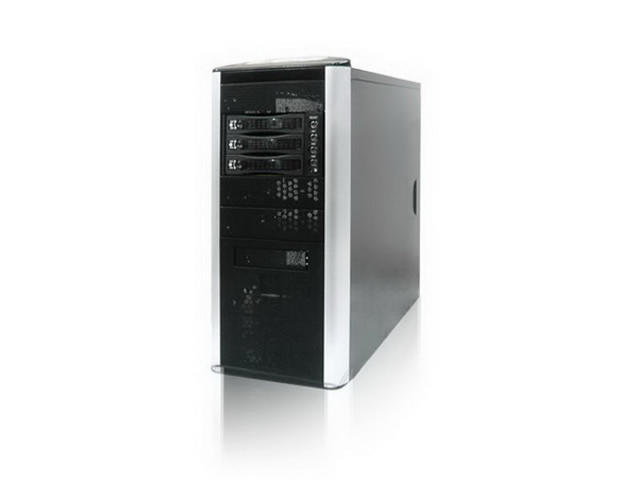

S-9-H23 | EOL - 550W PS2 Mini Redundant Power Supply |
|

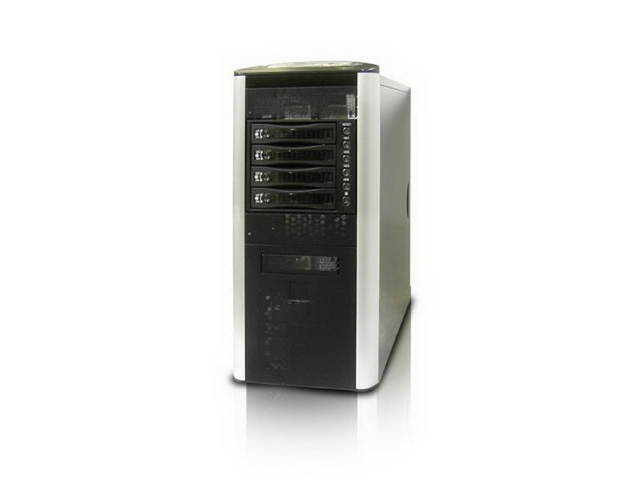

S-9-H34 | EOL - 550W PS2 Mini Redundant Power Supply |
|

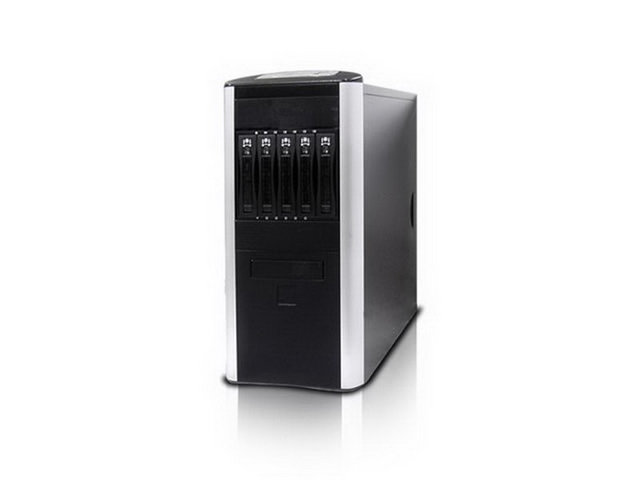

S-9-H35 | EOL - 550W PS2 Mini Redundant Power Supply |
|

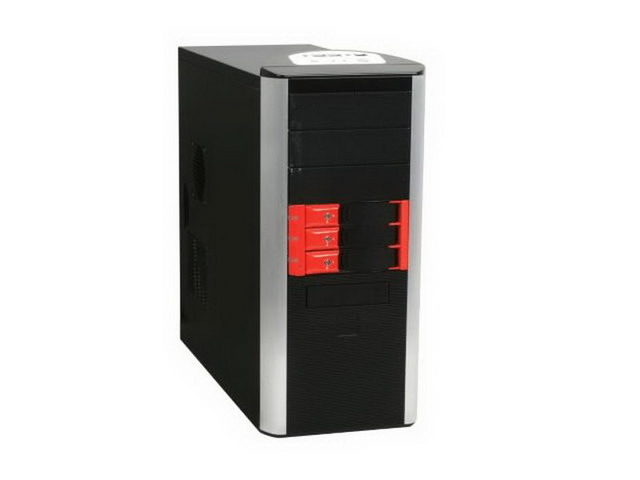

S-9-TL23SS | EOL - 550W PS2 Mini Redundant Power Supply |
|

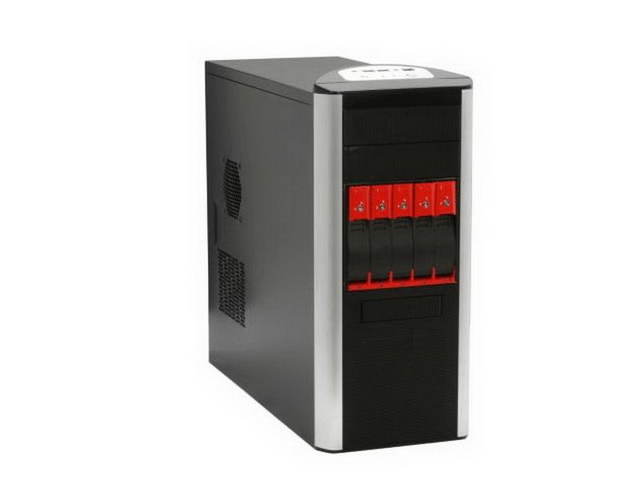

S-9-TL35SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
RG-4400HF | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407SE-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407SE14-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE14-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE-BK-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE-BL-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE-RD-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407LSE-SL-TS859 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727B5SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727B10SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727DE3 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727DE6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727DE4 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-727DE8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE8BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE8BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE8RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE8SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE4BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE4BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE4RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE4SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE6BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE6BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE6RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE6SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE3BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE3BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE3RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727DE3SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B10BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B10BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B10RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B10SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B5BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B5BL | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B5RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-727B5SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
RG-4380 | EOL - 550W PS2 Mini Redundant Power Supply |
|
RG-4104H | EOL - 550W PS2 Mini Redundant Power Supply |
|
RG-4630 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-10000 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-DE4 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-DE6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
ASH-4630 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
ASH-4380 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
ASH-4104 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-DE5 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-416 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D7-400-6-SL | EOL - 550W PS2 Mini Redundant Power Supply |
|

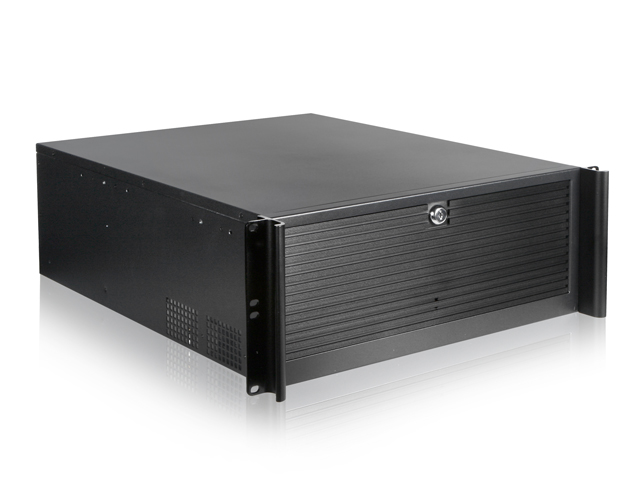

D-416B | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-406ND-B6SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-B10SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-B15SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-B8SA | EOL - 550W PS2 Mini Redundant Power Supply |
|

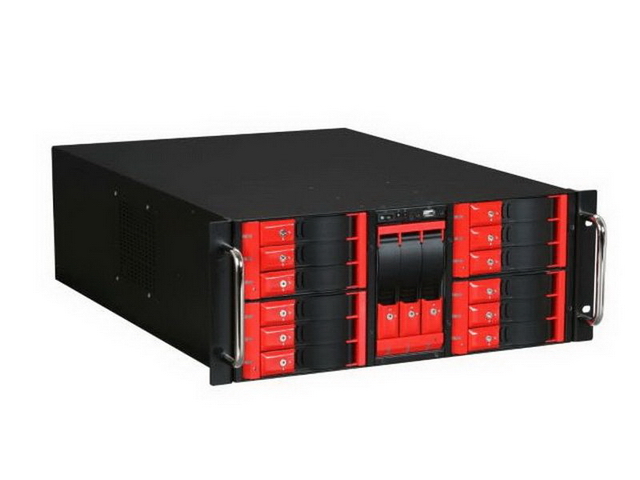

D-410-TLB15SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-B36SS | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE15 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE12 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE10 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400SEA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400SEA-BK | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400SEA-RD | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400SEA-SL | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-A380-MATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
STAR400 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-917 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-P | EOL - 550W PS2 Mini Redundant Power Supply |
|

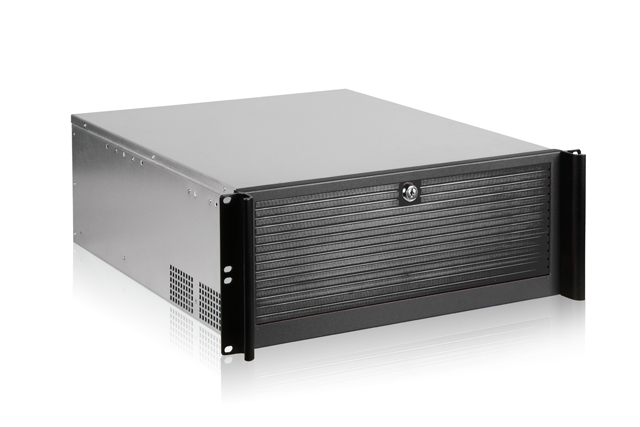

D-416-70P8B | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400LND-7 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-380HN | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-380HB | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-3100HN | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-3100HB | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-406-SD | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-919 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-BN40SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE8-225T | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE10-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|

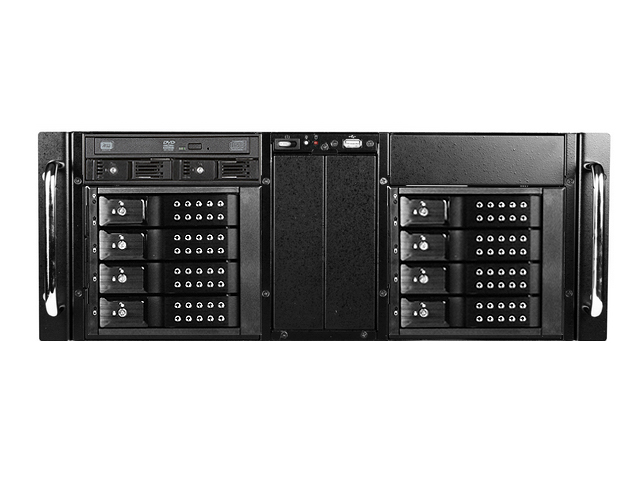

D410-DE8BK-225T | EOL - 550W PS2 Mini Redundant Power Supply |
|

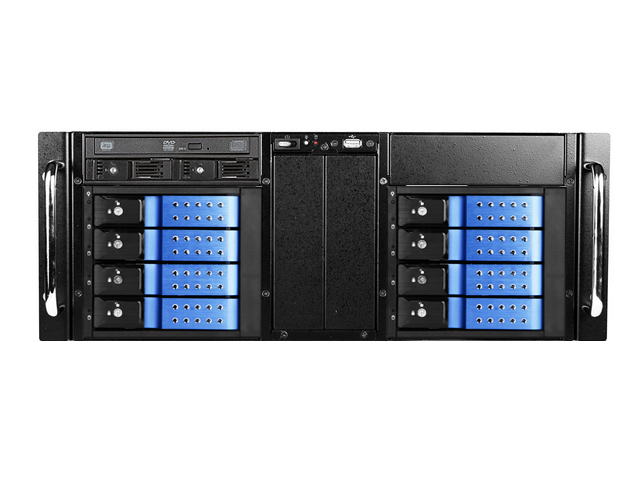

D410-DE8BL-225T | EOL - 550W PS2 Mini Redundant Power Supply |
|

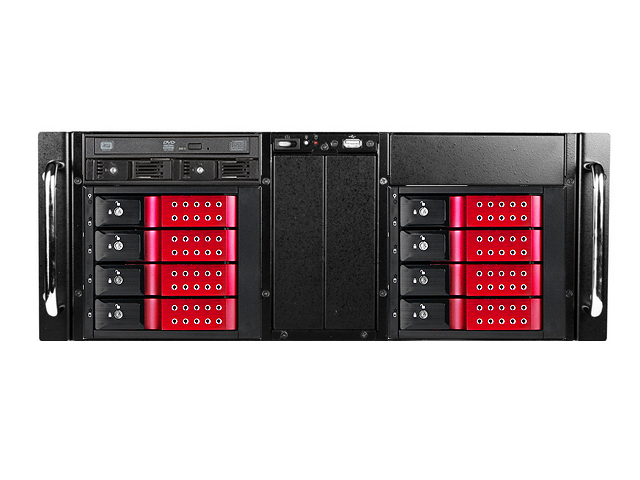

D410-DE8RD-225T | EOL - 550W PS2 Mini Redundant Power Supply |
|

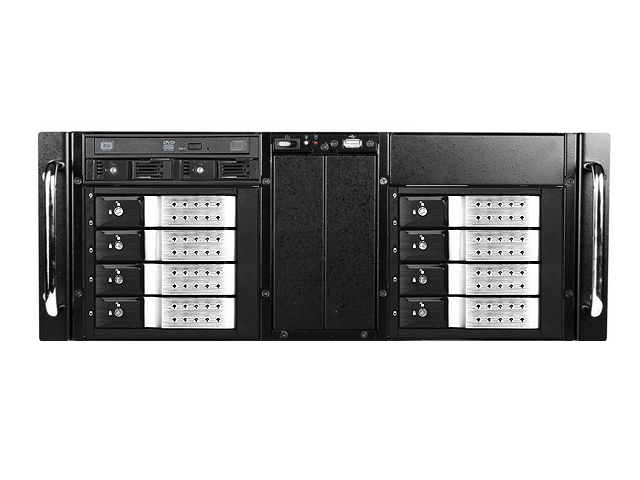

D410-DE8SL-225T | EOL - 550W PS2 Mini Redundant Power Supply |
|
D410-DE10BK-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|

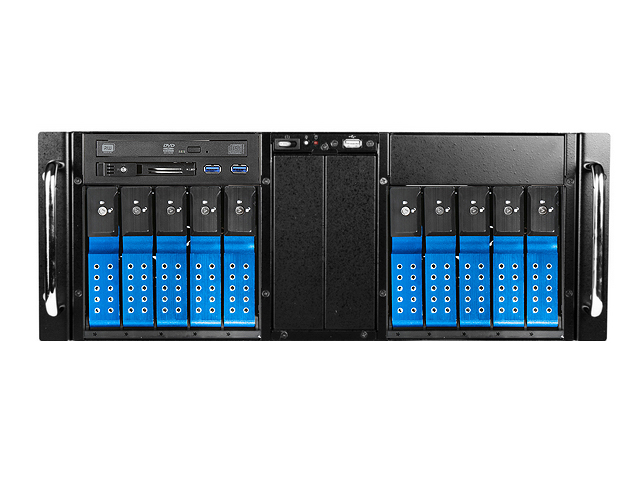

D410-DE10BL-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|

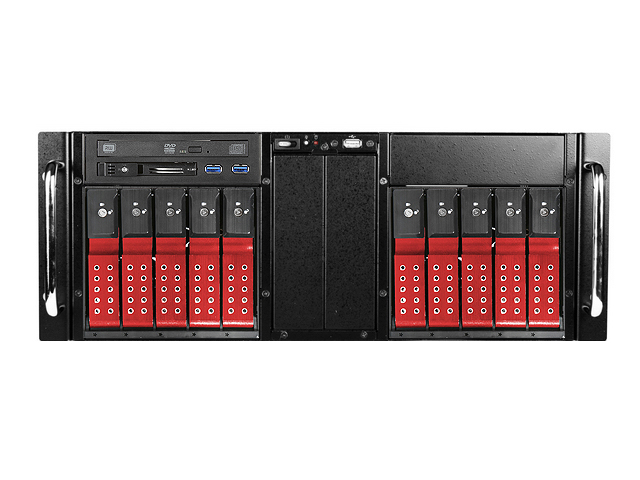

D410-DE10RD-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|

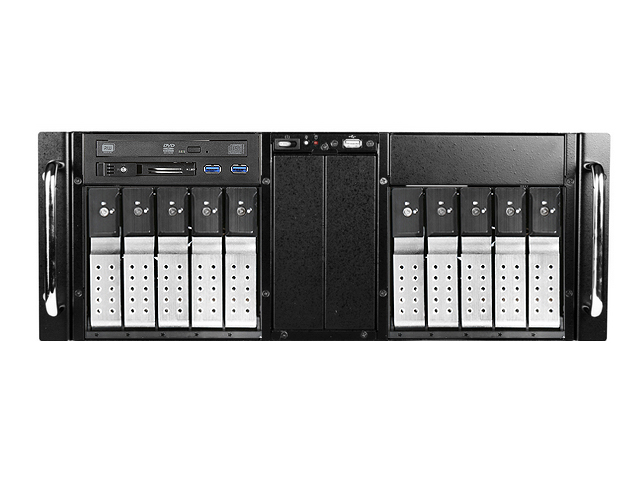

D410-DE10SL-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-400-7P-WB | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-4160-ATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-3120-ATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-406SE-B6SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HB-BLUE | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HB-RED | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HB-SILVER | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HN-BLUE | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HN-RED | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-380HN-SILVER | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HB-BLUE | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HB-RED | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HB-SILVER | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HN-BLUE | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HN-RED | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HN-RED | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-3100HN-SILVER | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-380HN-DT | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-380HB-DT | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-3100HN-DT | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-3100HB-DT | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
E4M20-120P8G | EOL - 550W PS2 Mini Redundant Power Supply |
|

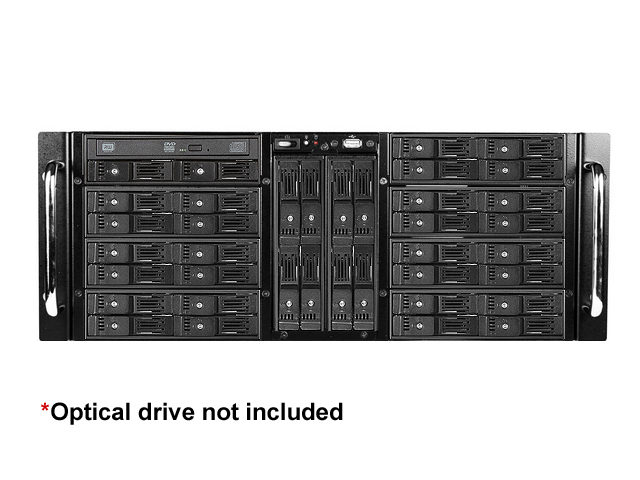

D-410-BN38SA-T | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-3120-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-4160-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-280-MATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-BX8-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-BX10 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-TG8-25TU | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-TG10 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-416-BX5 | EOL - 550W PS2 Mini Redundant Power Supply |
|

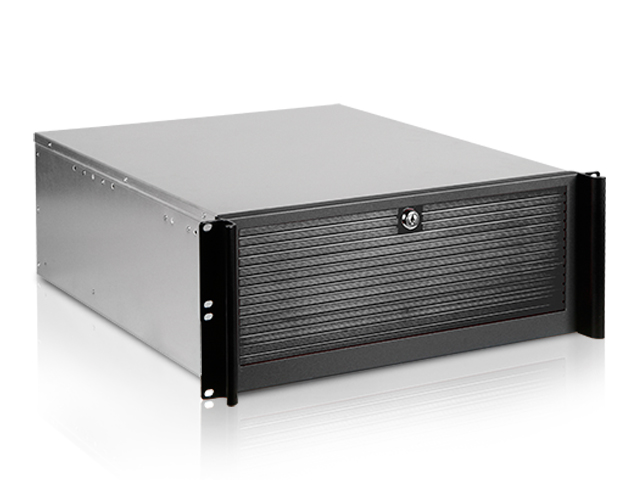

D-416-BX6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-BX36SA | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-410-DE36 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-406-BX6 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-BX4 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-416-500R8PD8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-407P-500R8PD8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
D-407L-500R8PD8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
|
S-917-500R8PD8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-416-DE4 | EOL - 550W PS2 Mini Redundant Power Supply |
|
S-9112-EATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-412 | EOL - 550W PS2 Mini Redundant Power Supply |
|
DN-200 | EOL - 550W PS2 Mini Redundant Power Supply |
|
DN-300 | EOL - 550W PS2 Mini Redundant Power Supply |
|
DN-400 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-50R8A | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-55R8P | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-80R3N | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-407P-100R3N | EOL - 550W PS2 Mini Redundant Power Supply |
|
D2-407-BL-50R8P8 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D2-407-BL-55R8P | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-402A-14 | EOL - 550W PS2 Mini Redundant Power Supply |
|
D-403A-14 | EOL - 550W PS2 Mini Redundant Power Supply |
|
E4M20V12 | EOL - 550W PS2 Mini Redundant Power Supply |
|
E4M20HD | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-280HD-MATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-3120HD-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-4160HD-JB | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-3120HD-ATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
M-4160HD-ATX | EOL - 550W PS2 Mini Redundant Power Supply |
|
D2-400-7-SY | EOL - 550W PS2 Mini Redundant Power Supply |
|
U-424HD | EOL - 550W PS2 Mini Redundant Power Supply |
Providing technical support as our top priority.
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
Contact us today!
tech support contact info:
Tel: 1-626-303-8885
Product Support Request
