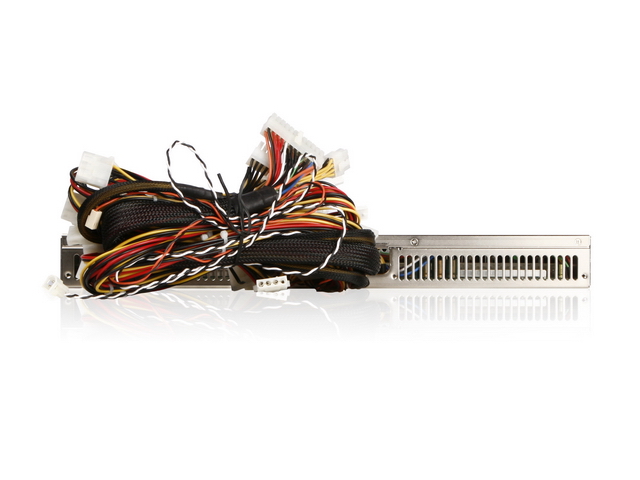

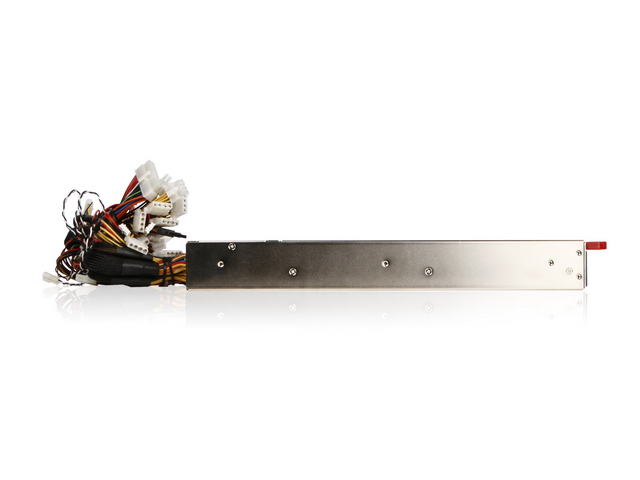

IS-1800RH1UP
Build-to-Order - 1800W 1U Redundant Power Supply
- Universal Input, Active PFC
- MTBF > 100,000 Hours
- SCP (Short Circuit Protection)
- OCP (Over Current Protection)
- OVP (Over Voltage Protection)
- OPP (Over Power Protection)
- Power Failure Alarm & Signals
- Efficiency: 75% at Full Load
- Industrial Japanese Components 40 degrees temperature
- Automatic Fan Thermal Control
Product Introduction

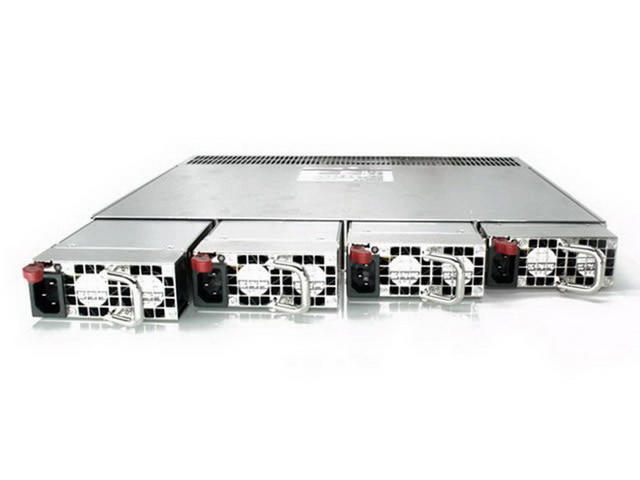

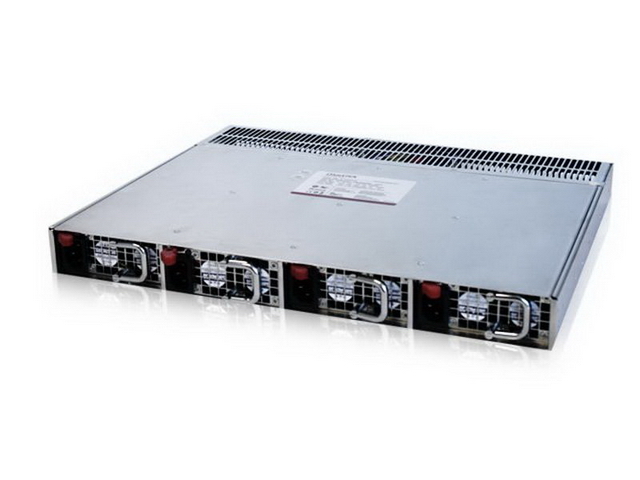

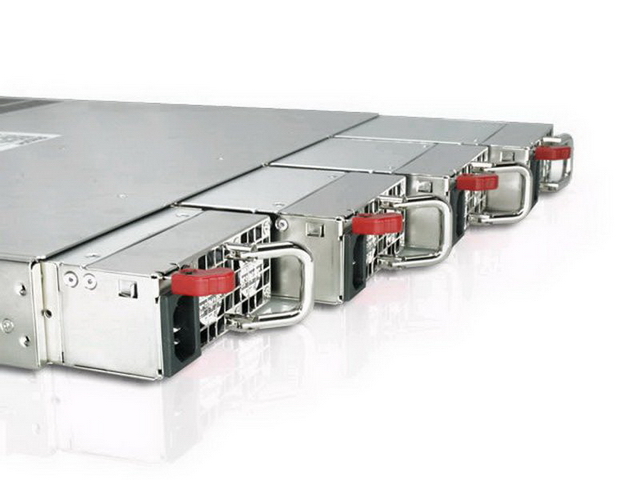

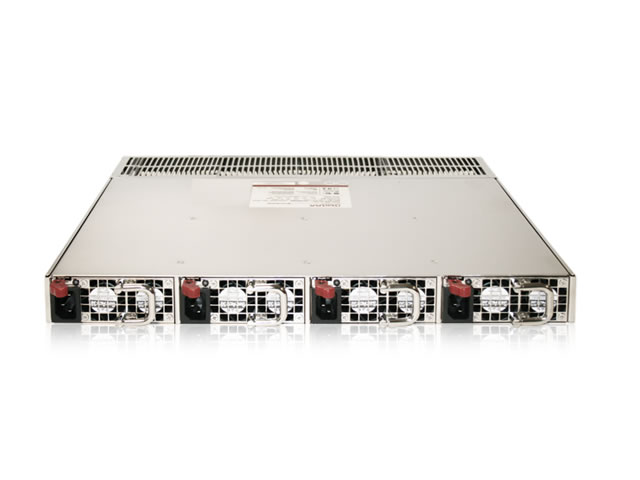

XEAL quad AC input 1U 1800W Redundant Power Supply IS-1800R4H1UP. It offers your server and workstation zero down time with full 1800W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment. A good start for your mission critical system integrations.
| Model Number | IS-1800RH1UP |
| RoHS Compliance | Yes |
| Output Wattage | 1800 |
| Efficiency | 75% |
| Connector Type | Main Connector :: 24 pin 4pin 12V :: 1 8pin EPS 12V :: 1 Molex :: 30 SATA :: 2 Floppy :: 7 |
| Dimensions (WxHxD) | 16.61" x 1.69" x 13.39" 421.9 mm x 42.9 mm x 340.1 mm |
Parts & Accessories
| Image | Accessory | Description |
Output
There are no Power Output Specifications for this product.
FAQ
There are no FAQ entries for this model. |
