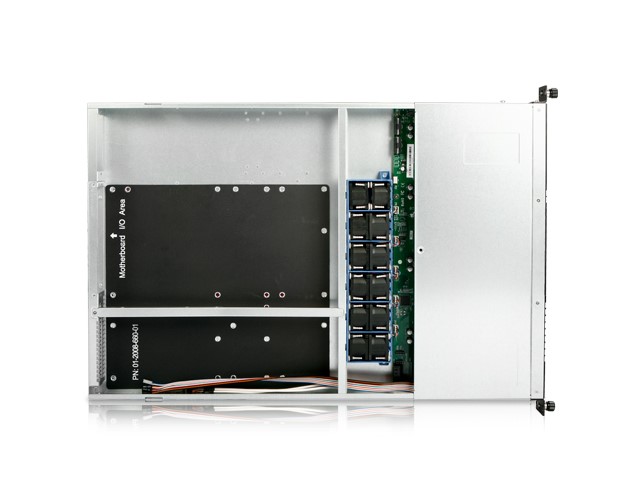

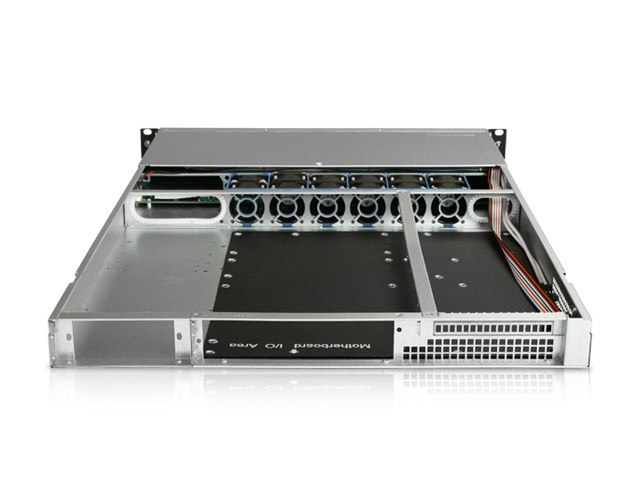

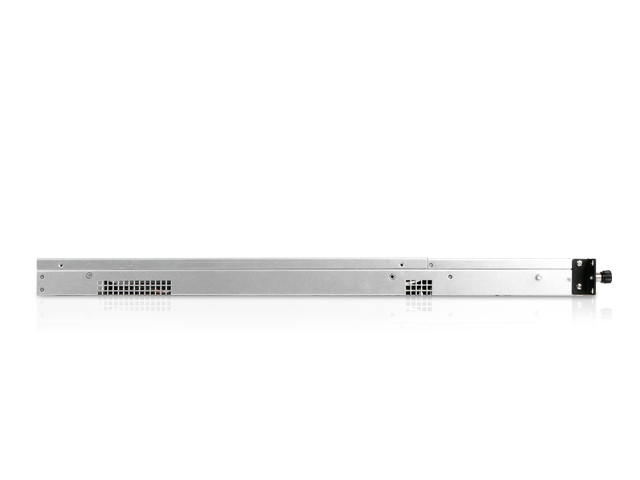

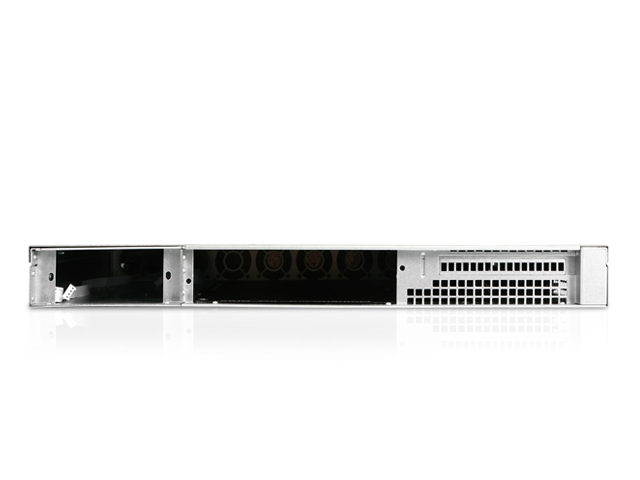

1U 4-Bay Storage Server Rackmount Chassis

Fiber Optical Drive Tray Status Indicator
Support EATX Motherboard
Discrete SATA 6Gb/s HDD Backplane
Front Access USB Connector
Power + HDD + LAN LED Indicators
Fully RoHS Compliance
Supports both SAS and SATA Hard Drives
Sliding Rails Included
5x 40mm PWM Fans

Product Introduction

The EX storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make EX series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, the EX series hard drive backplane supports both SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	EX1M4
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 25.98" 482.6 mm x 44.5 mm x 659.9 mm
Notes	- hard drive backplane requires 2 molex power connectors. - standard I/O shield will NOT fit any 1U chassis. - fits DD-666 riser card on motherboard slot 6.

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description

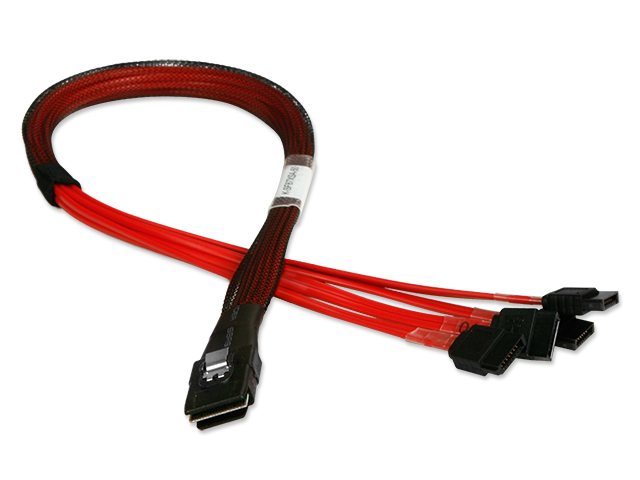

	K-SF87XSA-50	miniSAS SFF-8087 to 4x SATA Forward Breakout 50 cm Cable

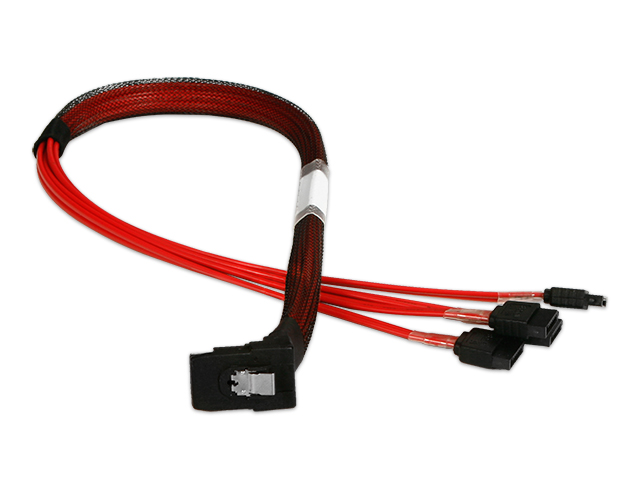

	K-SF87RXSA-50	miniSAS SFF-8087 Right Angle to 4x SATA Forward Breakout 50 cm Cable

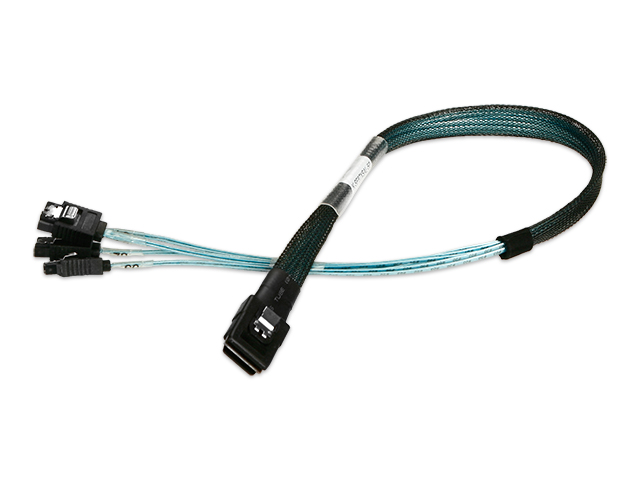

	K-SF87XSAL-50	miniSAS SFF-8087 to 4x SATA with Latch Forward Breakout 50 cm Cable

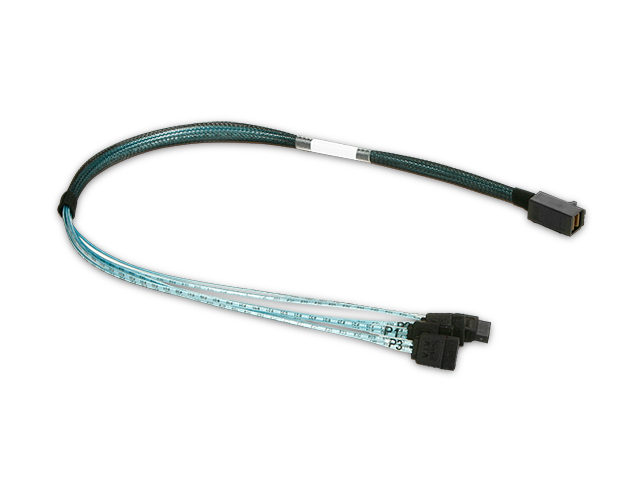

	K-HD43XSA-50	HD miniSAS SFF-8643 to 4x SATA Forward Breakout 50 cm Cable

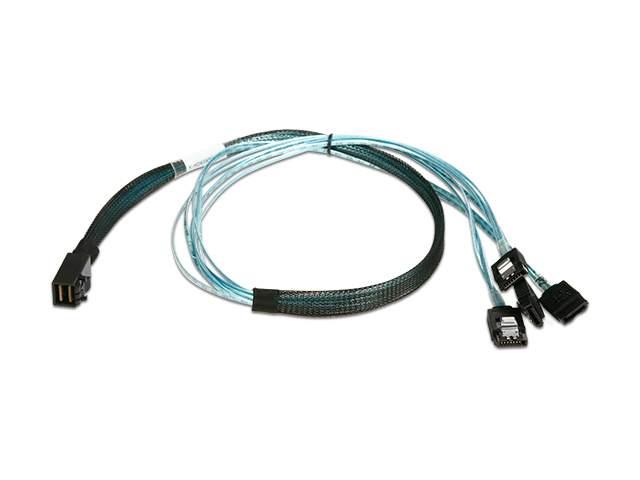

	K-HD43XSAL-75	HD miniSAS SFF-8643 to 4x SATA Latch Forward Breakout 75 cm Cable

Output

There are no Power Output Specifications for this product.

FAQ

Q :	How to install the rail system?
A :	Please refer to the rail system TC-RAIL28-EX12 product page. http://www.istarusa.com/istarusa/products.php?model=TC-RAIL28-EX12
Q :	How to install 2.5" HDD/SSD?
A :	Please find the PDF file for more information.
Q :	Specifications of the 40mm PWM fan.
A :	The max. performance is 13000 RPM, 23.05 CFM, and 52.5 dBA.
Q :	How to connect the white fan cable?
A :	Please refer to the PDF file.
