Product Detail

EOL - 4U 45 3.5" HDD Bays EATX Storage Server Chassis eSATA Port Multiplier

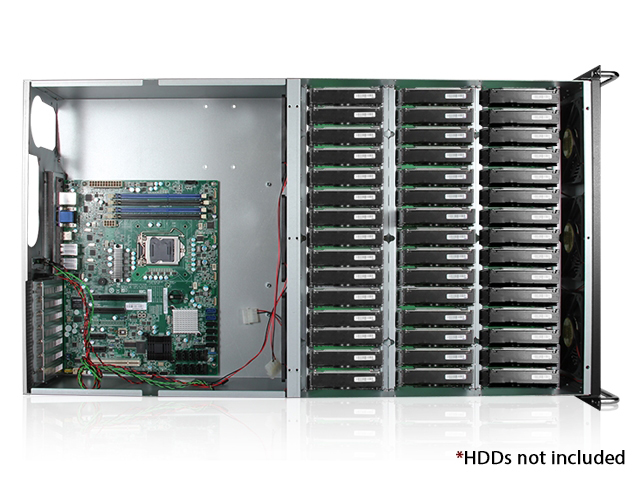

High density storage server (45 HDDs + 1 HDD for OS) in 4U form factor
Dual power supplies to support both HDDs and sever system
6x 120mm cooling fans to keep hot air out of your critical storage system
No hassle on cable routing via dedicated Port Multiplier HDD backplanes with 9x SATA cables (cables included)
Durable and rugged body structure
The most economic storage solution
SATA connections with Port Multiplier function to support RAID configurations
JMicron JMB575 Port Multiplier chipset

Product Introduction

The EB-445-PM storage server series rackmount has the functionality and flexibility to make the chassis to be a new breed of storage server. As Port Multiplier technology has become a more cost effective solution, we provide an up to 45x 3.5" HDD drive capacity storage chassis via SATA connections and offer a redundant power supply solution to ensure total up time of mission critical server applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	EB-445-PM
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 32.26" 482.6 mm x 177.8 mm x 819.4 mm
Notes	- 10x Molex power connectors are needed for hard drive backplanes (9) and cooling fans (1). - controllers with 9x SATA connectors and Port Multiplier function needed to access all 45 hard drives.

Download

Product Drawing

Parts & Accessories

Image	Accessory	Description
	RP-LRAIL-V	Adjustable L-shaped Rackmount Mounting Kit

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
