Product Detail

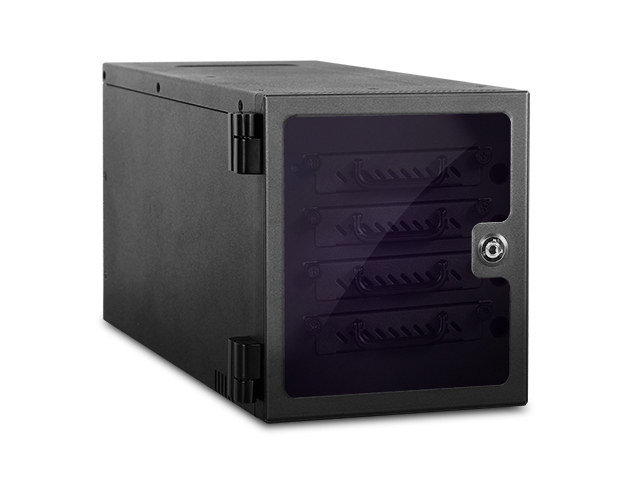

4-bay 2.5" SAS/SATA 6.0 Gb/s miniSAS Hotswap JBOD Enclosure

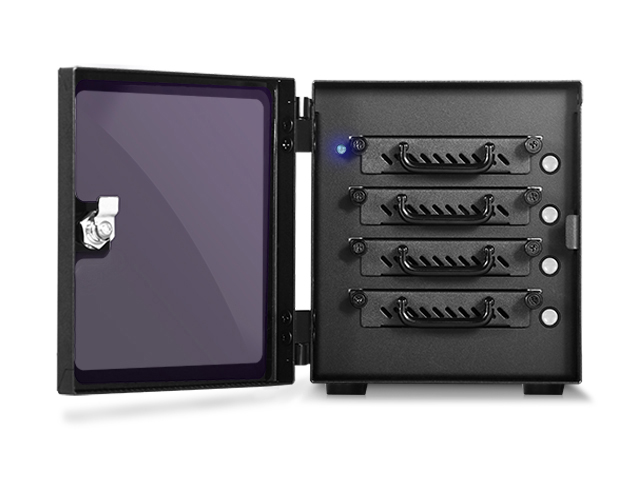

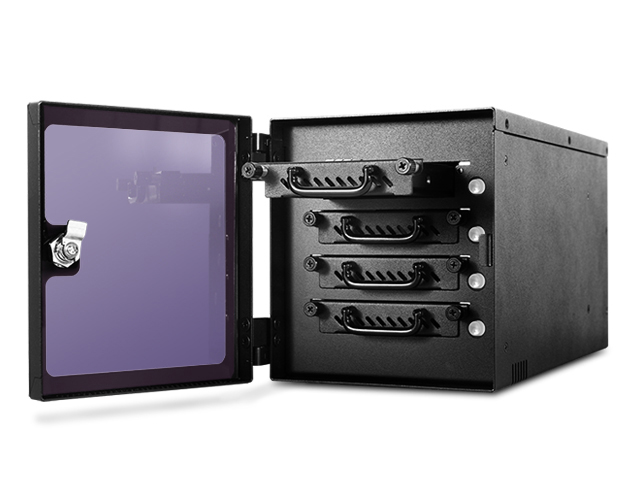

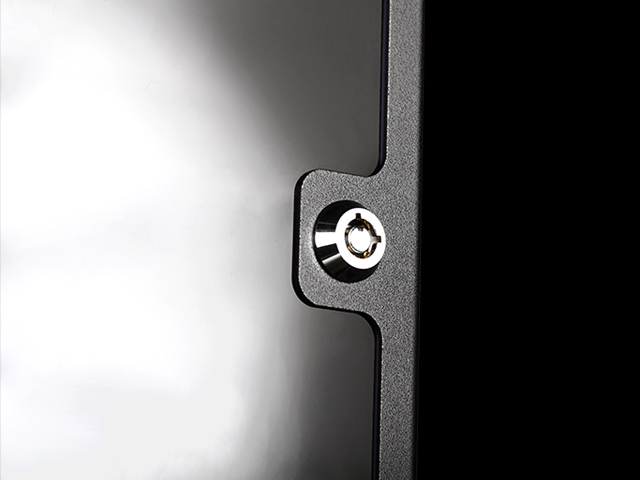

Semi-transparent Door with Key Lock Design
Supports 4x 2.5" SAS/SATA 6Gb/s HDDs/SSDs (up to 9.5mm thick)

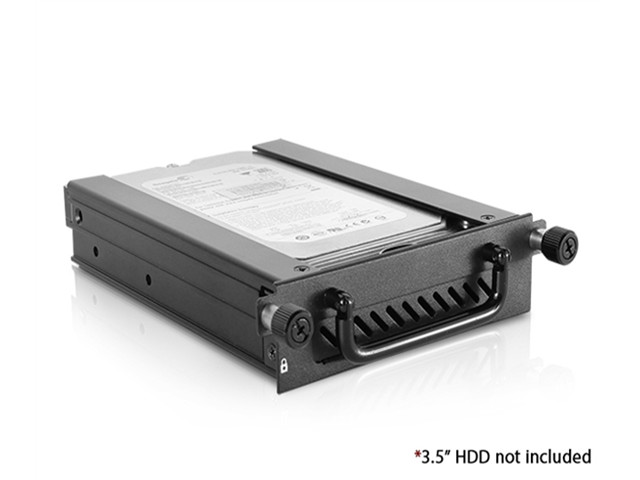

HDD Tray with Thumb Screw Design for Easy Swap

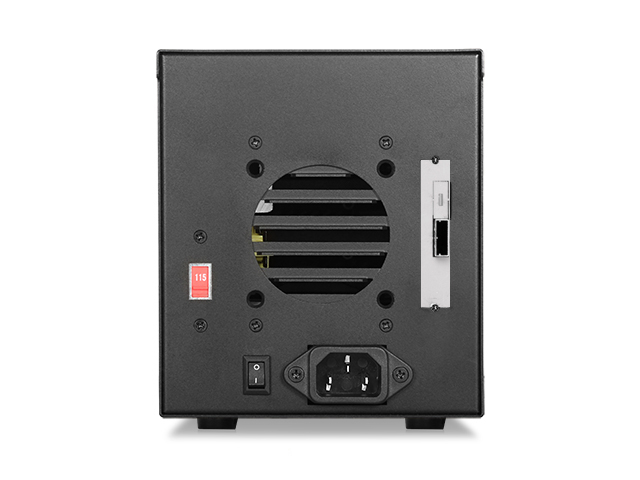

miniSAS SFF8088 Interface for Easy Connection
60mm Cooling Fan for Ventilation
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction

EAGE4402TG-2MS external multi-bay JBOD tower is designed specially for storage applications. It is able to hold 4x2.5" HDDs/SSDs for storing mass data via one miniSAS SFF8088 interface, offering a fast data transfer rate. One 60mm cooling fan enhances the ventilation inside. The external JBOD storage case has solid construction and a semi-transparent door with key lock, and is a cost-effective and flexible solution for your critical data storage.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	EAGE4402TG-MS
RoHS Compliance	Yes
Dimensions (WxHxD)	5.31" x 5.82" x 10.76" 134.9 mm x 147.8 mm x 273.3 mm

Download

User's Manual

Parts & Accessories

Image	Accessory	Description
	K-HD4488-1M	HD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
	K-SF88-1M	miniSAS SFF-8088 1 meter Cable

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
