Product Detail

Special Order - 3U 16-Bay Storage Server Rackmount Chassis

Fiber Optical Drive Tray Status Indicator
Advance Thermal Cooling Design Optimizes Airflow
4 Hot-swappable 80mm Cooling Fans with Status Monitor
Support EATX Motherboard
miniSAS (SFF-8087) HDD Backplane
Front Access USB Connector
Power + Fan Failure + HDD LED Indicator
Power/Alarm Reset Switch
Fully RoHS Compliance
Support 6.0Gb/s SAS/SATA Hard Drives

Product Introduction

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	E3M16
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 5.25" x 27.00" 482.6 mm x 133.4 mm x 685.8 mm

Download

Data Sheet

Spec Sheet

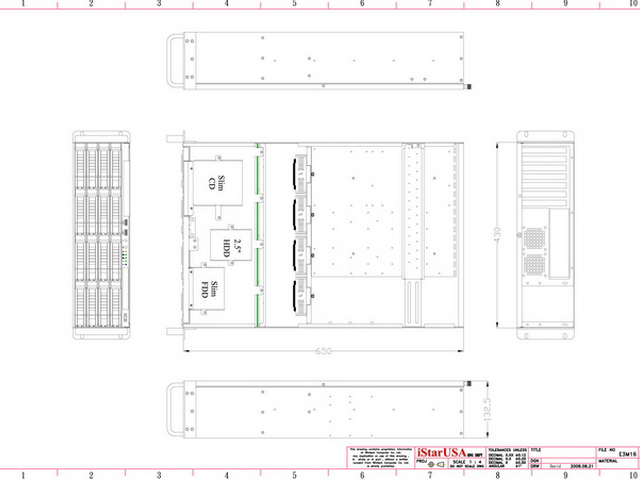

Product Drawing

Parts & Accessories

Image	Accessory	Description
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	CAGE-AAM1MI-H	Build-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable
	CAGE-AAMMMI-H	Build-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable

Output

There are no Power Output Specifications for this product.

FAQ

Q :	Does it support IS-800R3KP?
A :	Yes. The power supply fits very well. But in order to mount it on the side way, we change the bracket to the other side and install the power upside down. So the reset Black/White wire won?t block the inside way.
