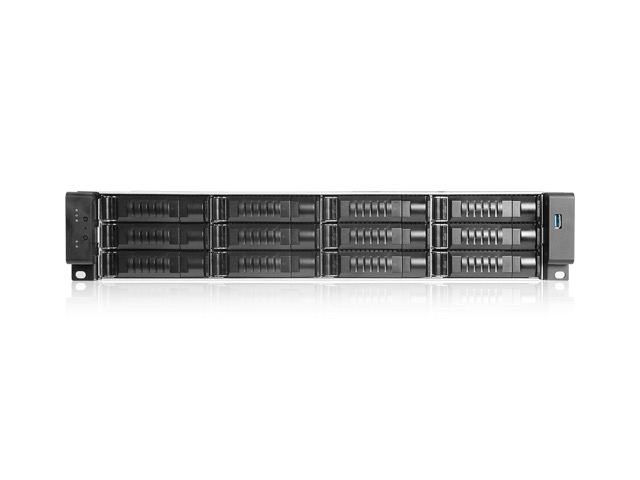

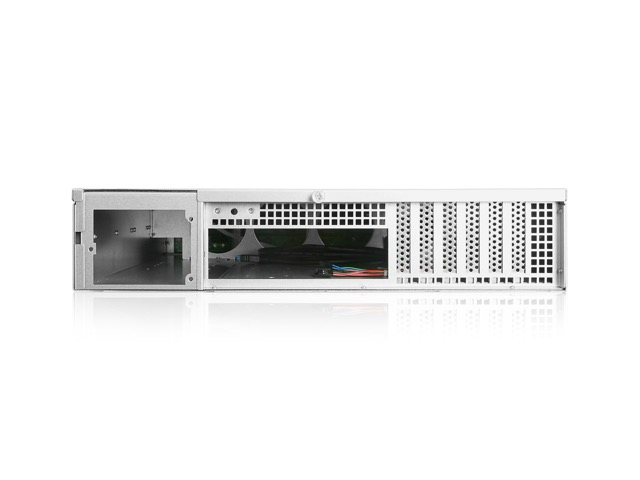

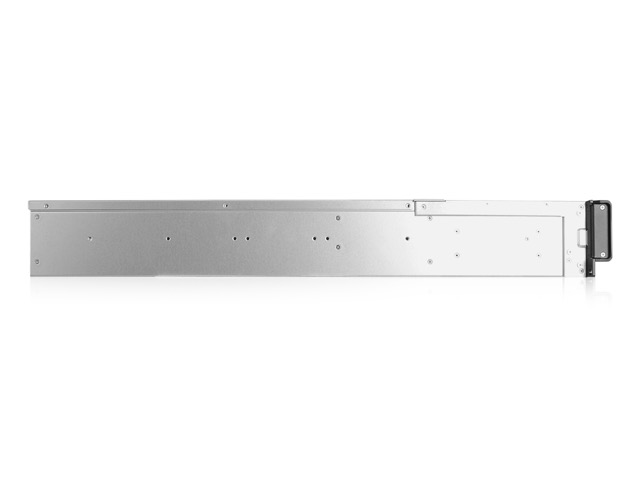

2U 12-Bay Storage Server Rackmount Chassis 12Gb/s HDD SSD SFF-8643 Backplane

Fiber Optical Drive Tray Status Indicator
Fully RoHS Compliance
Power/Alarm Reset Switch
Power + Fan Failure + HDD LED Indicator
Front Access USB Connector
HD miniSAS (SFF-8643) HDD Backplane
Support EATX Motherboard
4 Cooling Fans with Status Monitor
Advance Thermal Cooling Design Optimizes Airflow
Supports Both 2.5" and 3.5" SAS I/II/III and SATA I/II/III HDD/SSD
High Performance Transfer Rate up to 12Gb/s

Product Introduction

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the HD miniSAS 12Gb/s backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	E2M12HD
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 3.50" x 27.00" 482.6 mm x 88.9 mm x 685.8 mm

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	K-HD43-50	12 Gb/s HD miniSAS SFF-8643 50 cm Cable
	K-HD43R-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable
	K-HD43RR-50	12 Gb/s HD miniSAS SFF-8643 Right Angle 50 cm Cable

Output

There are no Power Output Specifications for this product.

FAQ

Q :	How to install IX-750S2UPD8G power supply?
A :	Please refer to the PDF file.
Q :	How to install IS-500/600/700S2UP power supply
A :	Please refer to the PDF file.
