Product Detail

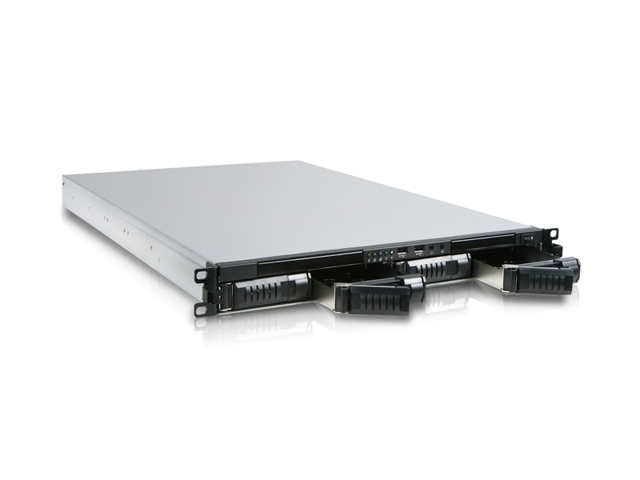

1U 4-Bay Storage Server Rackmount Chassis

Fiber Optical Drive Tray Status Indicator

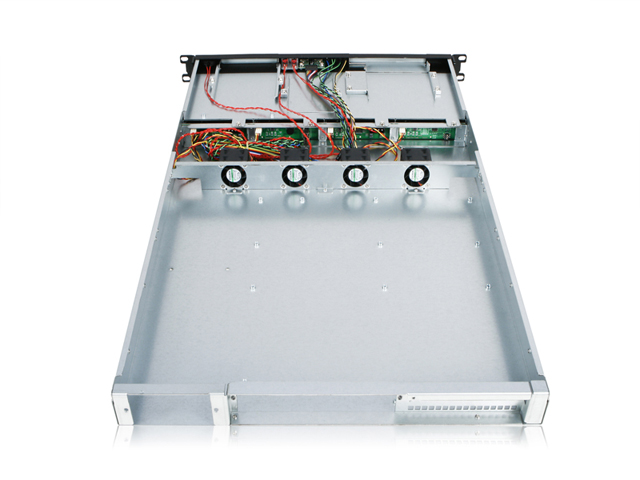

Advance Thermal Cooling Design Optimizes Airflow

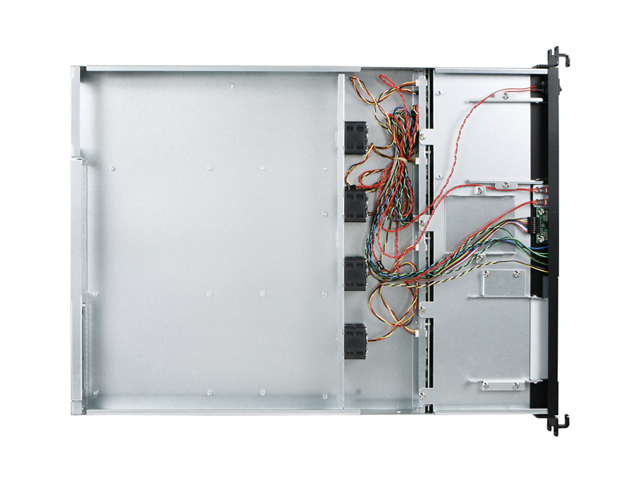

3 Cooling Fans with Status Monitor
Support EATX Motherboard
miniSAS (SFF-8087) HDD Backplane
Front Access USB Connector
Power + Fan Failure + HDD LED Indicator
Power/Alarm Reset Switch
Fully RoHS Compliance
Support 6.0Gb/s SAS/SATA Hard Drives

Product Introduction

The E storage server series rackmount not only has the stylish appearance, but the functionality and flexibility make E series a new breed of storage server. As SAS and SATA technology has become a more cost effective solution, we have taken a step forward to prepare the migration of new technology and provide the mini SAS backplane to support both latest SAS and SATA hard drives, and also provide redundant power supply to ensure total up time of mission critical server applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	E1M4
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 27.00" 482.6 mm x 44.5 mm x 685.8 mm
Notes	- standard I/O shield will NOT fit any 1U chassis. - for PCI riser, use DD-611-C5 (search for DD-611-CX). - for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).

Download

Data Sheet

Spec Sheet

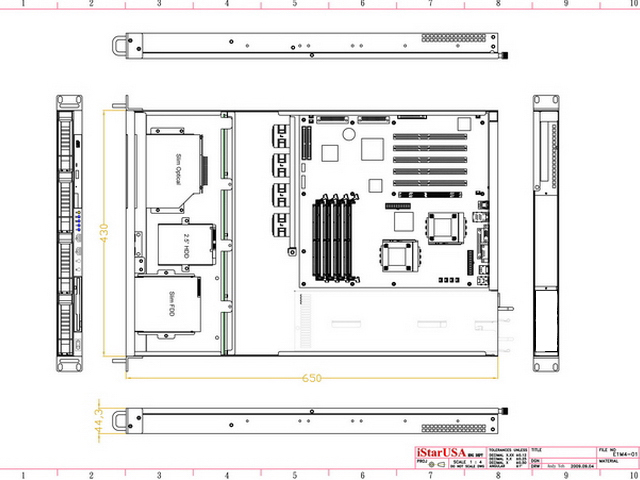

Product Drawing

Parts & Accessories

Image	Accessory	Description
	CAGE-AAM1MI-H	Build-to-Order - 4 SATA to SFF-8087 Reverse Breakout Cable
	CAGE-AAMMMI-H	Build-to-Order - Internal mini SAS to Internal mini SAS 50cm Cable
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis
	CAGE-AAMMMI-75

Output

There are no Power Output Specifications for this product.

FAQ

Q :	How to convert 4x 3.5" bays into 8x 2.5"?
A :	Please refer to the PDF file
