Product Detail

4U 24-bay 3.5" SAS/SATA miniSAS SFF8088 JBOD Enclosure

Supports 24x 3.5" SAS/SATA 6Gb/s Hard Drives
6x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
3x 120mm Cooling Fans with Status Monitor
Power and HDD LED Indicator for Each Hard Drive
Power and Alarm Reset Switch
Optional Redundant Power Supply
Fully RoHS Compliance
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction

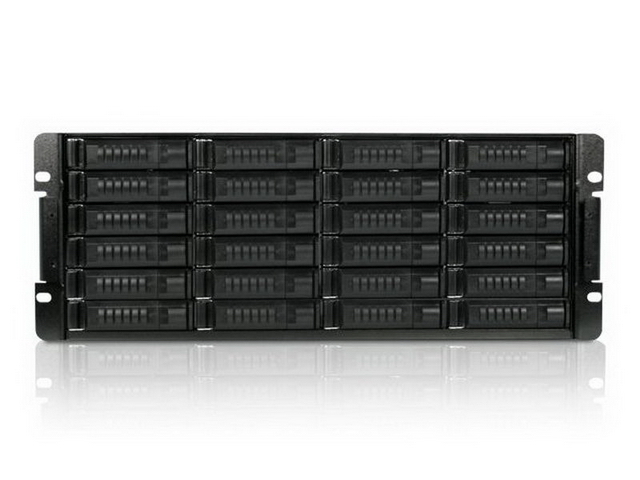

DAGE424U40BK-6MS is an external 4U-24 Bay Hot-Swap SAS/SATA rackmount disk array storage chassis. It provides users a storage capacity for up to 24 hard drives for RAID configurations. This 4U-24 Bay external SAS/SATA JBOD is designed with high quality external miniSAS (SFF8088) connectors. Three 120mm cooling fans offer long lasting and enhanced thermal cooling solution.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE424U40BK-6MS
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 22.50" 482.6 mm x 177.8 mm x 571.5 mm

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	CAGE-AAMMM1	Build-to-Order - External mini SAS to External mini SAS Cable
	ZAGE-H-8788-DU	Build-to-Order - Dual miniSAS Host Adapter
	ZAGE-H-8788-QU	Build-to-Order - Quad miniSAS Host Adapter
	ZAGE-H-8788-SI	Build-to-Order - Single miniSAS Host Adapter
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

Q :	How to employ docking stations in Windows 7?
A :	Please refer to the document
Q :	What is RAID technology?
A :	Please refer to the document.
Q :	How to setup more than 2TB disk array at Win XP?
A :	Please refer to the document.
