Product Detail

Build-to-Order - 4U 20-bay 3.5" SATA 6.0Gb/s eSATA (Port Multiplier) JBOD Enclosure

Supports 20x 3.5" SATA 6Gb/s Hard Drives
4x eSATA Connectors with Port Multiplier Support
3x 120mm Cooling Fans for Ventilation
LED Indicators for Power and Activity on Each Hard Drive
Power and Alarm Reset Switch
Optional Redundant Power Supply
Hot-swappable Both on Host and Device

Product Introduction

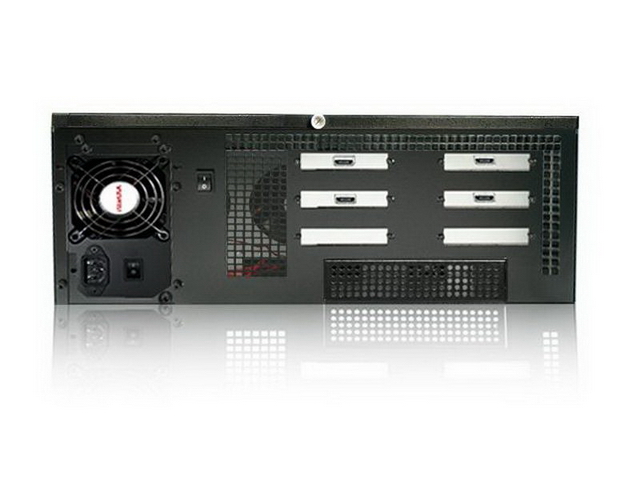

DAGE420U40BK-PM is an external 4U-20 Bay Hot-Swap SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 20 hard drives for RAID configurations. This 4U-20 Bay external SATA JBOD is designed with high quality eSATA (Port Multiplier) connectors. Three 120mm ball bearing fans offer an enhanced thermal cooling solution for keeping the equipment from heat damage. DAGE420U40BK-PM provides maximum storage and performance to high density storage system.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE420U40BK-PM
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 22.50" 482.6 mm x 177.8 mm x 571.5 mm

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	CAGE-ESA2ESA	Build-to-Order - ESATA to ESATA External SATA Cable
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis

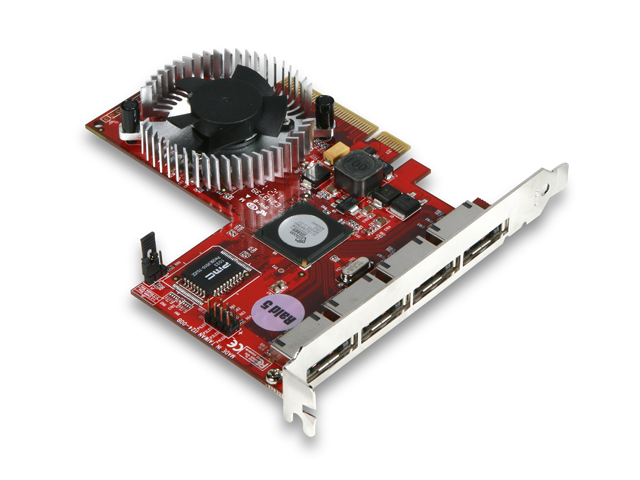

	RAID-SIL3124-4PM	EOL - 4 eSATA Ports with Port Multiplier Function RAID Controller

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
