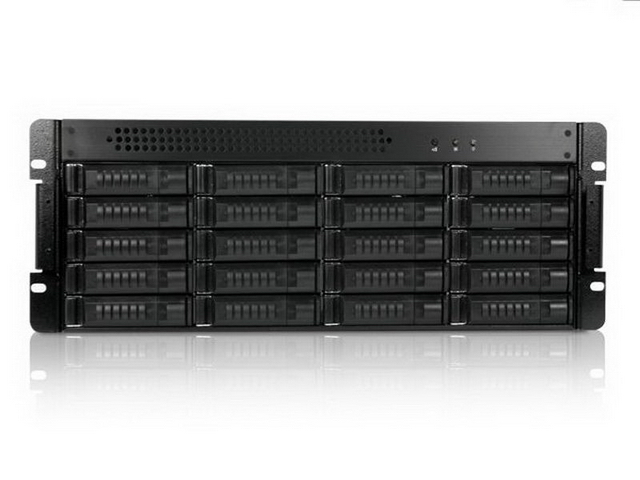

Build-to-Order - 4U 20-bay 3.5" SATA/SAS miniSAS SFF8088 JBOD Enclosure

Supports 20x 3.5" SAS/SATA 6Gb/s Hard Drives
5x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
3x 120mm Cooling Fans for Ventilation
LED Indicators for Power and Activity on Each Hard Drive
Power and Alarm Reset Switch
Optional Redundant Power Supply
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction

DAGE420U40BK-5MS is an external 4U-20 Bay Hot-Swap SATA/SAS rackmount disk array storage chassis. It provides users a most big storage capacity for up to 20 hard drives for RAID configurations. This 4U-20 Bay external SATA/SAS JBOD is designed with high quality miniSAS (SFF8088) connectors. Three 120mm ball bearing fans offer an enhanced thermal cooling solution for keeping the equipment from heat damage. DAGE420U40BK-5MS provides maximum storage and performance to high density storage system.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE420U40BK-5MS
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 22.50" 482.6 mm x 177.8 mm x 571.5 mm

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	CAGE-AAMMM1	Build-to-Order - External mini SAS to External mini SAS Cable
	ZAGE-H-8788-DU	Build-to-Order - Dual miniSAS Host Adapter
	ZAGE-H-8788-QU	Build-to-Order - Quad miniSAS Host Adapter
	ZAGE-H-8788-SI	Build-to-Order - Single miniSAS Host Adapter
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
