Product Detail

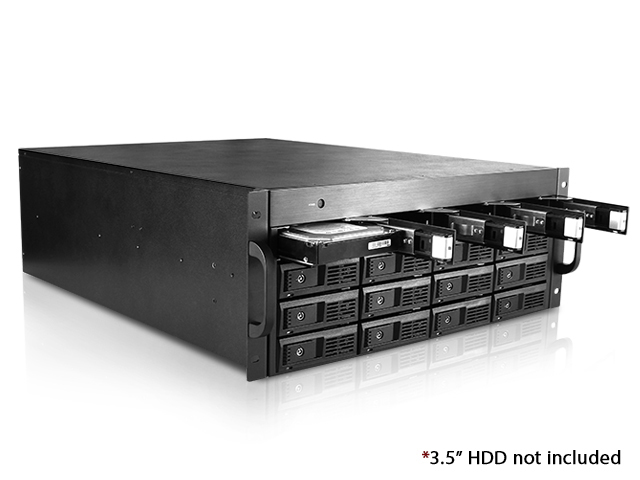

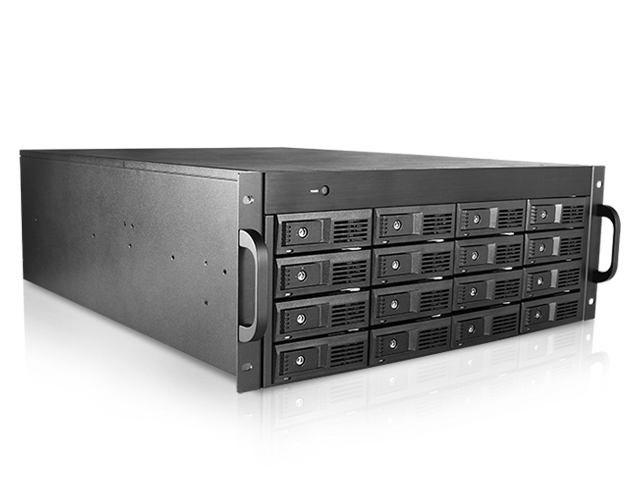

4U 16-bay 3.5" SAS/SATA 6.0Gb/s miniSAS SFF8088 JBOD Trayless Rackmount Chassis

Supports 16x 3.5" SAS/SATA 6Gb/s Hard Drives
LED Indicators for Power and Activity on Each Hard Drive
3x 120mm Cooling Fans for Ventilation

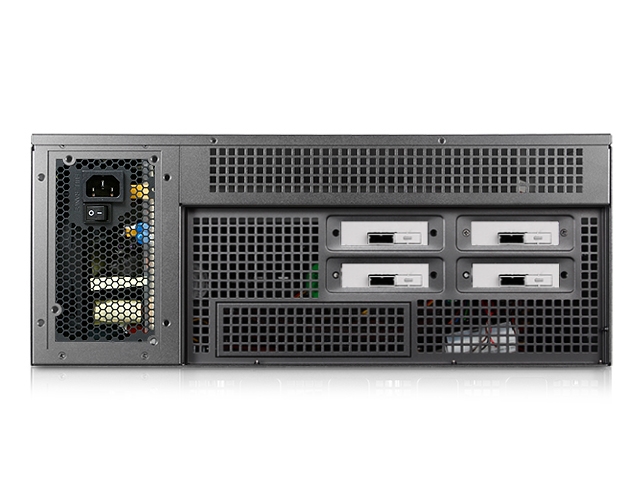

4x miniSAS (SFF8088) Connectors for Fast Data Transfer Speed
Trayless Design
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s per Connector

Product Introduction

DAGE416UTL-4MS is an external 4U-16 bay hot-swappable SAS/SATA rackmount disk array storage chassis. It provides users a most big storage capacity for up to 16 hard drives for RAID configurations. This 4U-16 bay external SAS/SATA JBOD is designed with 4 high quality miniSAS (SFF8088) connectors. Three 120mm ball bearing fans offer long lasting and enhanced thermal cooling solution. DAGE416UTL-4MS provides maximum storage and performance to high density storage system.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE416UTL-4MS
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 22.90" 482.6 mm x 177.8 mm x 581.7 mm

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	RP-RAIL-26S	EOL - 26" Slim Sliding Rail Kit for M Series 2U 3U 4U Rackmount Chassis
	K-HD4488-1M	HD miniSAS SFF-8644 to miniSAS SFF-8088 1 meter Cable
	K-SF88-1M	miniSAS SFF-8088 1 meter Cable

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
