Build-to-Order - 3U 16-bay 3.5" SAS Expander RAID Storage JBOD Rackmount Enclosure

Supports 16x 3.5" SAS/SATA 6Gb/s Hard Drives
Built-in SAS Expander for Single miniSAS Cable Connectivity
LCD Control Panel for System Setup
miniSAS (SFF8087) HDD Backplane Design for 16 Removable Hard Drive Trays
LED Indicators for Power and Activity on Each Hard Drive
Environmental Monitoring with Power/FAN LEDs

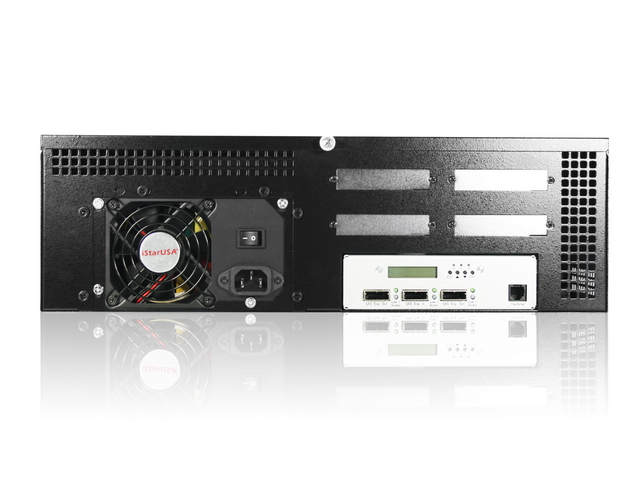

Supports Two miniSAS Out Connectors for Next Storage Expansion
4x 80mm Cooling Fans for Ventilation
Optional Redundant Power Supply
Hot-swappable Both on Host and Device
Supports Data Transfer Speed up to 6Gb/s per Port/Channel

Product Introduction

DAGE316U40SAS-EXP 3U-16 Bay SAS expander JBOD Rackmount is designed to provide storage expansion for SAS RAID Controller. It is equipped with SAS Expander to support 16 high-reliable SAS drives or high-capacity SATA drives from one single miniSAS cable host connectivity, and also it provides two miniSAS connectors to allow to scale up to 7 units of SAS expander enclosure for the most cost-effective storage expansion. Moreover, the enclosure is integrated a LCD control panel for complete storage management of easy system setup, alarm mute and configuration.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE316U40SAS-EXP
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 5.25" x 22.50" 482.6 mm x 133.4 mm x 571.5 mm
Notes	- HTS code: 8473.30.5100

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	CAGE-AAMMM1	Build-to-Order - External mini SAS to External mini SAS Cable

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
