Product Detail

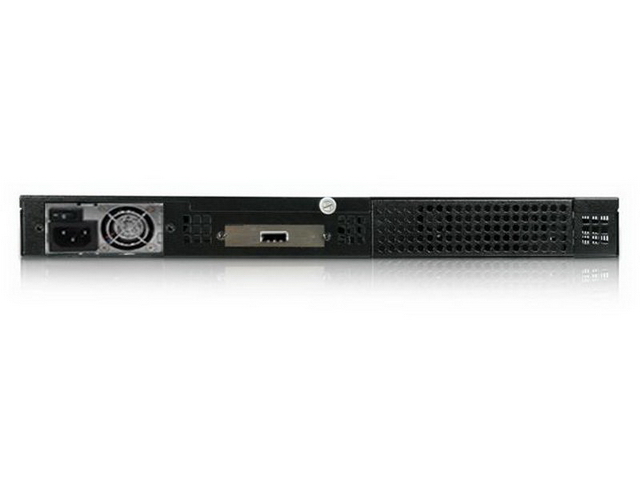

1U 4-bay 3.5" SAS/SATA miniSAS SFF8088 JBOD Enclosure

Supports 4x 3.5" SAS/SATA 6Gb/s Hard Drives
miniSAS (SFF8088) Connector for Fast Data Transfer Speed
4x 40mm Cooling Fans with Status Monitor
LED Indicators for Power and Activity on Each Hard Drive
Power and Alarm Reset Switch
Power + Fan Failure + HDD LED Indicator
Fully RoHS Compliance
Hot-swappable Both on Host and Device
Supports up to 6.0Gb/s Data Transfer Speed Per Port/Channel; Total Bandwidth up to 24Gb/s

Product Introduction

DAGE104U40BK-MS is an external 1U-4 Bay Hot-Swap SAS/SATA rackmount disk array storage chassis. It provides users a storage capacity for up to 4 hard drives for RAID configurations. This 1U-4 Bay external SAS/SATA JBOD is designed with 1 high quality external miniSAS (SFF8088) connector. Four 40mm cooling fans offer long lasting and enhanced thermal cooling solution.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	DAGE104U40BK-MS
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 22.50" 482.6 mm x 44.5 mm x 571.5 mm

Download

There are no downloadable media for this product.

Parts & Accessories

Image	Accessory	Description
	CAGE-AAMMM1	Build-to-Order - External mini SAS to External mini SAS Cable
	ZAGE-H-8788-SI	Build-to-Order - Single miniSAS Host Adapter
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
