Product Detail

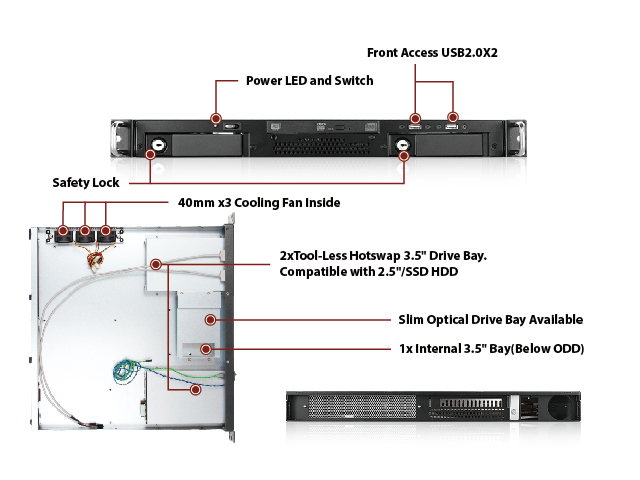

1U 2x 3.5" Bay Tool-less Hot swap ITX Chassis

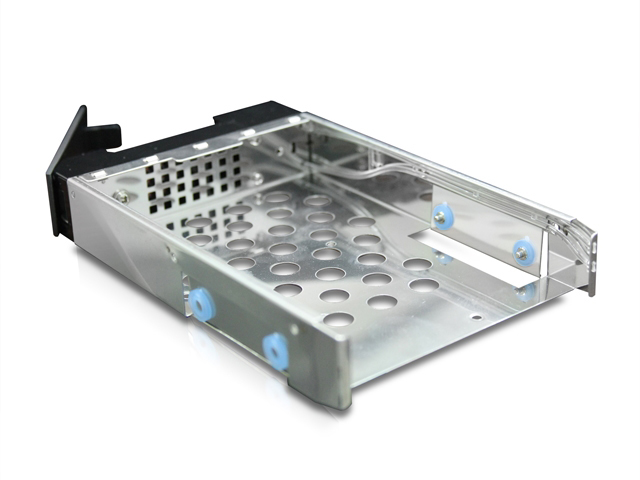

2xTool-Less Hotswap 3.5" Drive Bay. Compatible with 2.5" SSD/HDD (screws needed)
1x Internal 3.5" Bay

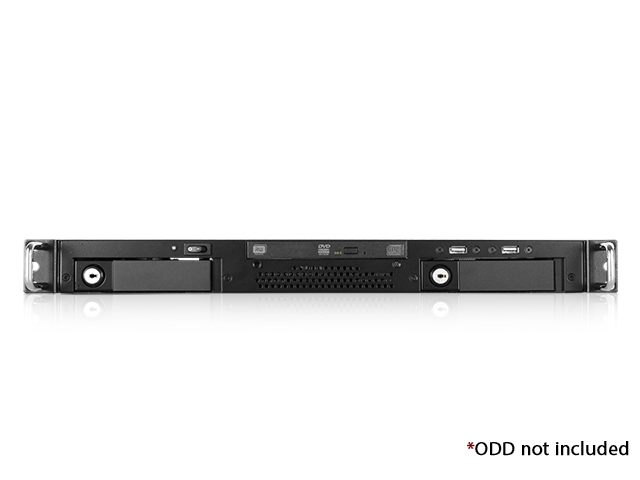

Slim Optical Drive Bay (12.7mm height) Available
Front Access USB2.0X2
40mm x3 Cooling Fan Inside
Power LED and Switch

Product Introduction

The D-A120T-ITX and D-A380T-MATX series are the same family designed with elegance and functionality fit for Home Theater Personal Computer (HTPC). With the advancement of Tool-Less server racks for home, these models are ideal for changing HDD without any tool, just need your hand. With storage capacity up to 4 TB per each bay, the drive cage has tray supporting both 3.5" & 2.5" HDD mounting and maximizes data storage and backup functionality at the same time. These series are ideal platform for HTPC build using popular AMD and Intel processors.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-A120T-ITX
RoHS Compliance	Yes
Dimensions (WxHxD)	18.98" x 1.75" x 18.25" 482.1 mm x 44.5 mm x 463.6 mm
Notes	- standard I/O shield will NOT fit any 1U chassis.

Download

Product Drawing

Parts & Accessories


Accessory

Description

Output

There are no Power Output Specifications for this product.

FAQ

Q :	What is the difference between two SATA ports?
A :	One is SATA/SAS (Primary) and the other is SAS (Secondary). Please refer to the PDF file.
