D-416-DE5
4U Compact Stylish 5x3.5" Trayless Hotswap Rackmount Chassis
- Supports front access USB ports
- Supports standard ATX PSU
- Compatible with redundant power supplies

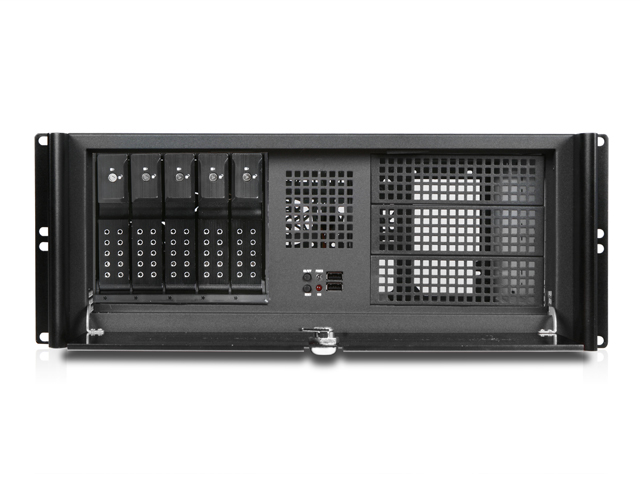

- 5 trayless hot-swappable bays for 3.5" HDDs
- Supports 3.5" SAS and SATA hard drives

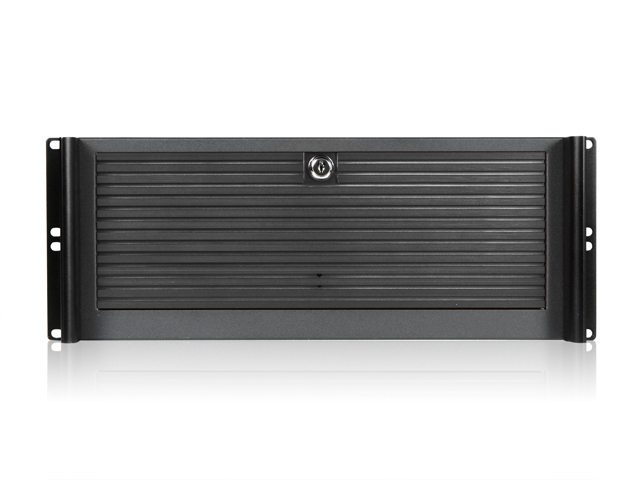

- Key lock front bezel to prevent unauthorized access
Product Introduction

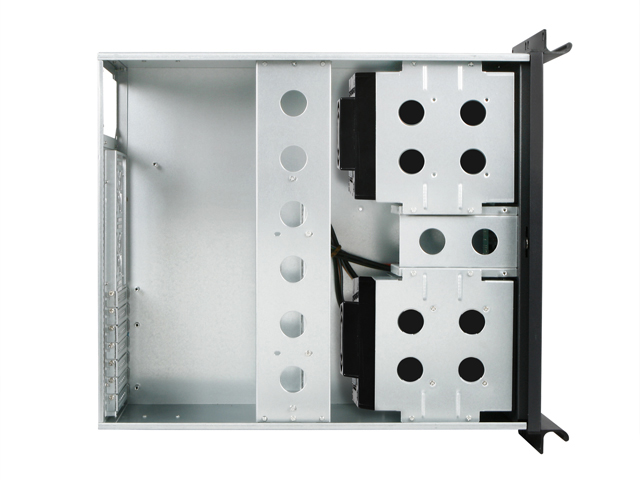

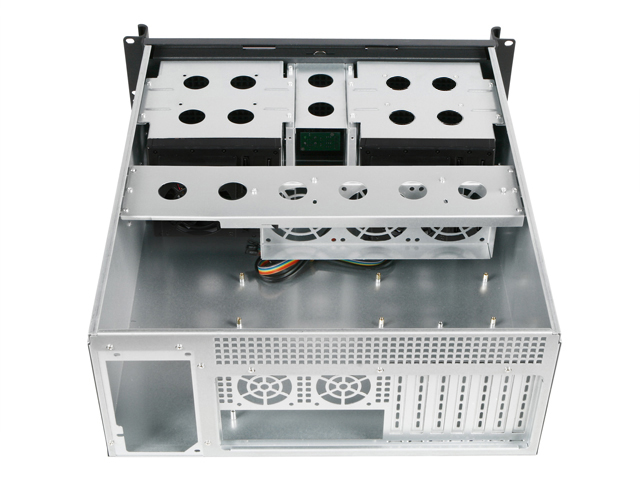

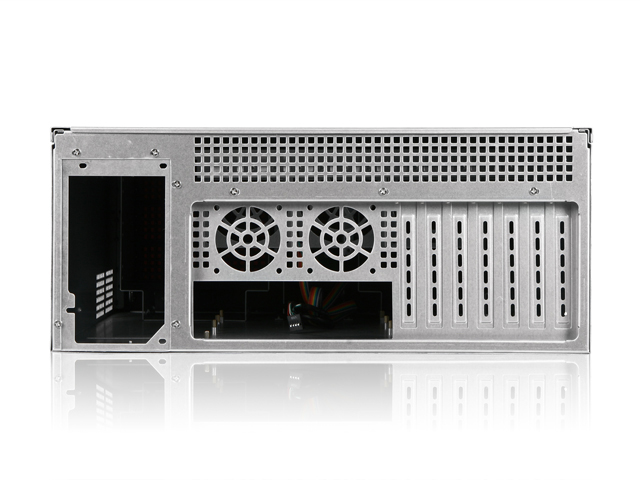

D-416-DE5 is a reliable and stable 4U-high server chassis. Installed with BPN-DE350SS enable 5x3.5" Trayless Hotswap storage capability. The full size I/O supports all ATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 7 full-height add-on cards. This chassis is 21" deep and has optional three 80mm cooling fans in the center and two 60mm fans at rear for air ventilation. In addition, D-416-DE5 supports a standard ATX PS2 power supply to meet regular server system applications.
| Model Number | D-416-DE5 |
| RoHS Compliance | Yes |
| Dimensions (WxHxD) | 19.00" x 7.00" x 21.77" 482.6 mm x 177.8 mm x 553.0 mm |
| Notes | - the two internal 3.5" bays at the bottom of drive cage cannot be used when an EATX motherboard is in place. |
Parts & Accessories
| Image | Accessory | Description |
Output
There are no Power Output Specifications for this product.
FAQ
There are no FAQ entries for this model. |
