Product Detail

4U Ultra Compact Rackmount Chassis

Ultimate Compact Size 13.7" in Depth
Power and Reset Switch
Power and HDD LED

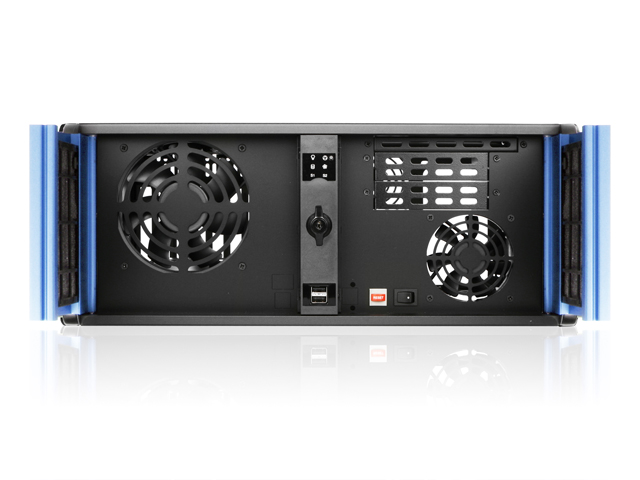

120mm and 80mm Cooling Fans in the Front
Front Access USB2.0 Port

Product Introduction

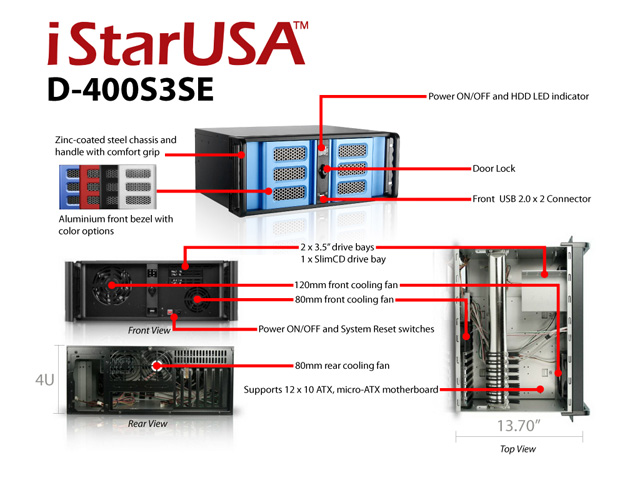

D-400S3SE is an ultra compact industrial rackmount chassis with 13.7" in depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5" drive bays are ideal for iStarUSA BPU-2535V2 to support up to 4 x 2.5" hard drives. Besides, there is one 5.25" slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. D-400S3SE provides server or cluster maximum reliability and performance.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-400S3SE
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 13.70" 482.6 mm x 177.8 mm x 348.0 mm

Download

Data Sheet

Parts & Accessories

Image	Accessory	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	DD-400-SE-BLACK	4U Black Bezel for SE series
	DD-400-SE-BLUE	4U Blue Bezel for SE series
	DD-400-SE-RED	4U Red Bezel for SE series
	DD-400-SE-SILVER	4U Silver Bezel for SE series
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
