Product Detail

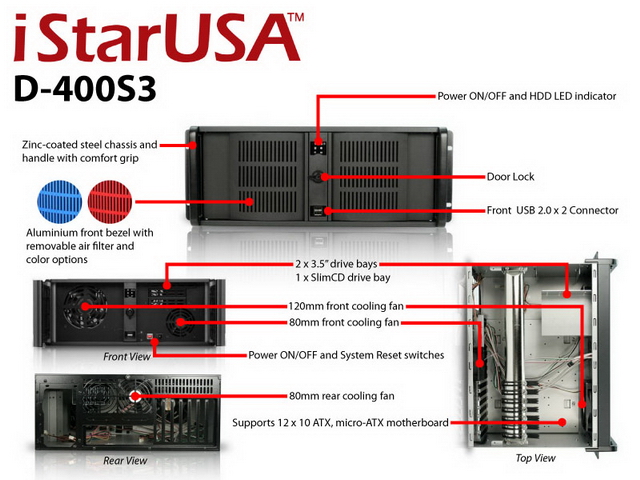

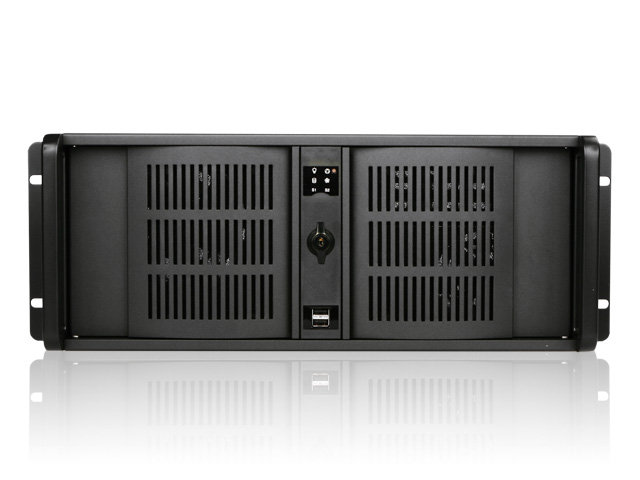

4U Ultra Compact Rackmount Chassis

Ultimate Compact Size 13.7" in Depth
Front Access USB2.0 Port

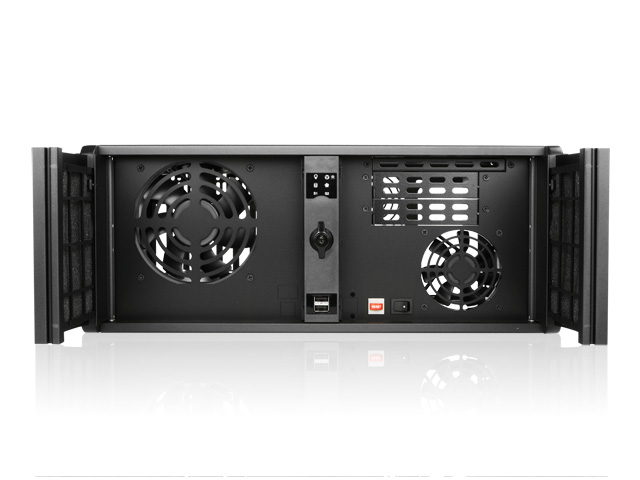

120mm and 80mm Cooling Fans in the Front
Power and HDD LED
Power and Reset Switch

Product Introduction

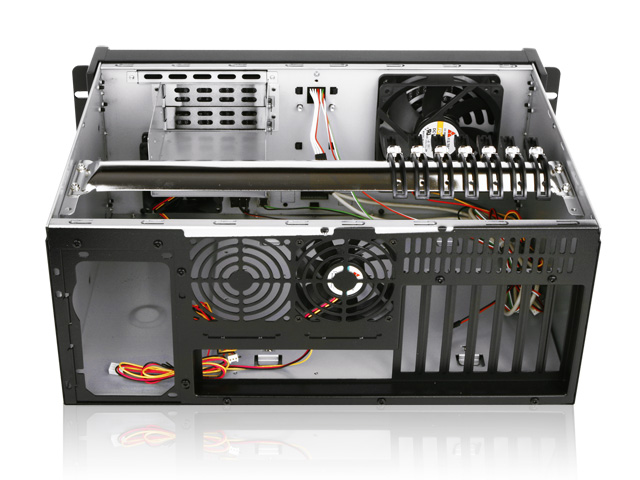

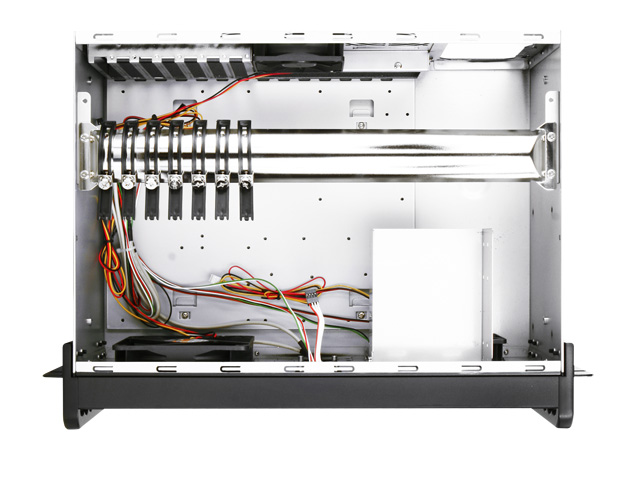

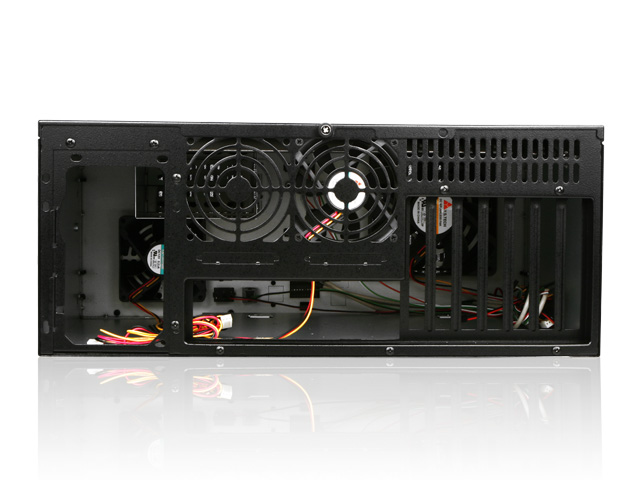

D-400S3 is an ultra compact industrial rackmount chassis with 13.7" in depth. The full size I/O supports all ATX motherboard and up to seven full-height add-on cards. Two external 3.5" drive bays are ideal for iStarUSA BPU-2535 to support up to 4 x 2.5" hard drives. Besides, there is one 5.25" slim drive bay for slim optical device. One 120mm and 80mm cooling fans in the front and additional one 80mm fans can be mounted in the rear to provide the best ventilation to prevent critical equipment from heat damage. D-400S3 provides server or cluster maximum reliability and performance.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-400S3
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 13.70" 482.6 mm x 177.8 mm x 348.0 mm

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	DD-400-DBLUE	D-400 BLUE DOOR
	DD-400-DRED	D-400 RED DOOR
	DD-400-DSILVER	D-400 SILVER DOOR
	DD-400-SE-BLACK	4U Black Bezel for SE series
	DD-400-SE-BLUE	4U Blue Bezel for SE series
	DD-400-SE-RED	4U Red Bezel for SE series
	DD-400-SE-SILVER	4U Silver Bezel for SE series
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis

Output

There are no Power Output Specifications for this product.

FAQ

Q :	Which power supply fits in my 19 inch rackmount chassis?
A :	Some chassis use PS2 type power supplies while others use special sizes like mini-redundant for instance. Always make sure you select the right power supply form factor or consult your salesperson for more info. When you look in the products section at the rackmount case you're using, the compatible power supplies are listed at the bottom.
Q :	What is the CPU cooler clearance in D-400S3?
A :	The clearance for CPU cooler is 5" with the chassis add-on card retainer in place.
