Product Detail

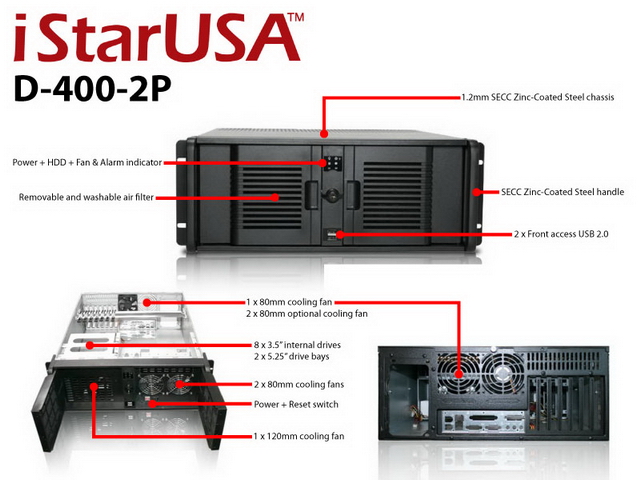

Build-to-Order - 4U Compact Stylish Rackmount Chassis

19" 4U high, Rackmount chassis compliant to EIA RS-310C standard
8 Internal HDD Spaces
Front Access USB2.0 x2
Removable Air Filters
120mm x1, 80mm x3 Cooling Fans
Power and HDD LED
Power and Alarm Reset Switch

Product Introduction

The iStarUSA 4U industrial rackmount chassis D Storm D-400-2P supports a total storage capacity up to eight 3.5" storage hard drives for RAID configuration and one 5.25" drive bay. D-400-2P provides your server or cluster maximum reliability and performance and enhanced thermal cooling solution as well.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-400-2P
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 7.00" x 20.80" 482.6 mm x 177.8 mm x 528.3 mm

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	DD-FAN80	80mm Ball Bearing Fan
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISF08	8 Ports Fan Sensor Board
	TC-ISTORM7	2x5.25" to 3x3.5" Internal Mounting Cooling Kit with Removable Filter
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	DD-FANBAR	Center Support Bar for D Storm 2U 3U 4U Chassis
	DD-400P-WOOD	4U Plastic Wood Look Paint Bezel

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
