Product Detail

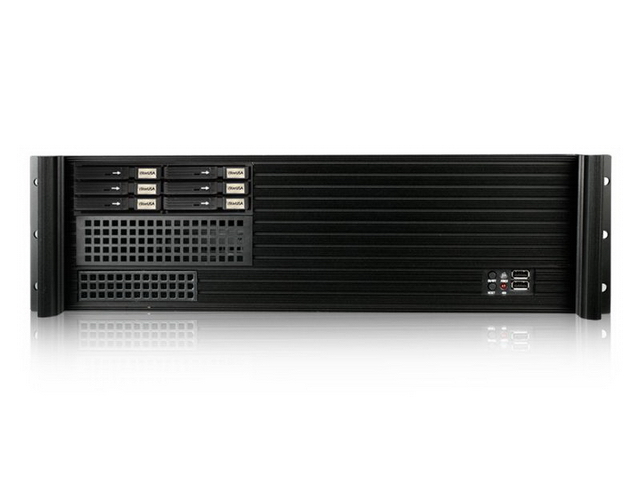

Build to Order - 3U Compact Hotswap 2.5" HDD Rackmount Chassis ATX Power Supply Compatible

Support 4 x Full Height Add-on Cards
Support ATX PS2 Power Supply
Power and Reset Switch
Power and HDD LED
Support 6 x 2.5" Hotswap Drives
Supports Front Access USB2.0 x2

Product Introduction

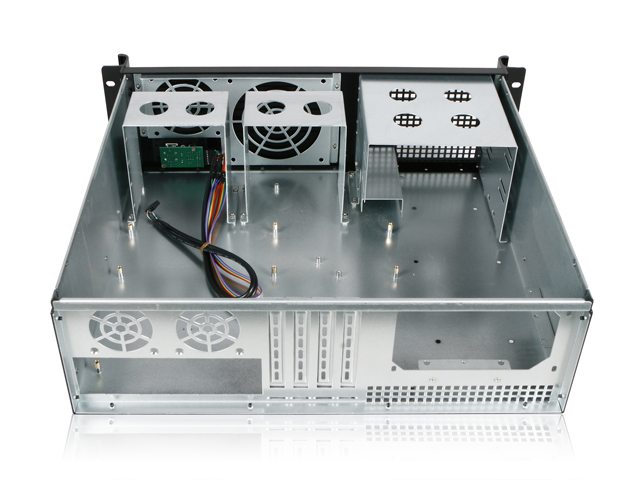

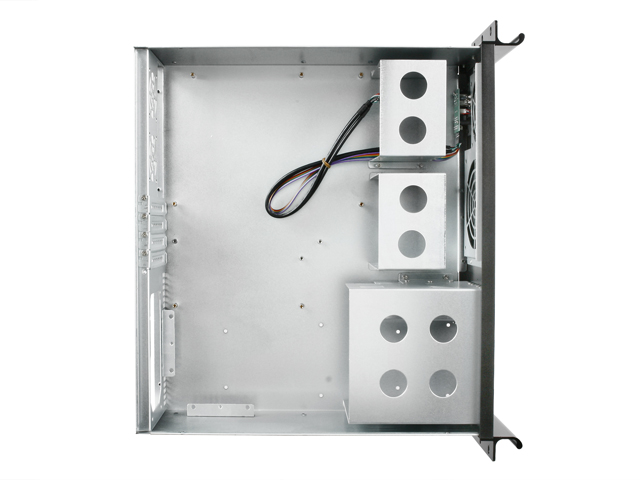

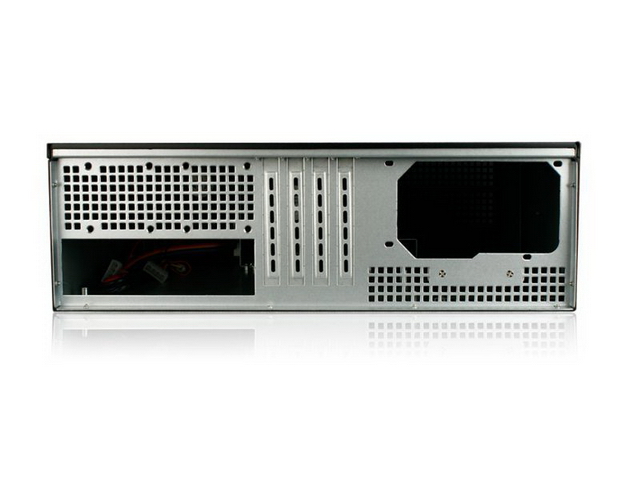

D-313SE-MATX-B126 is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-length add-on cards. This chassis is only 16? deep has optional 120mm and 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-313SE-MATX-B126 supports 6 x 2.5? Hotswap Drives and a standard ATX power supply to meet regular server system applications.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-313SE-MATX-B126SA
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 5.25" x 16.86" 482.6 mm x 133.4 mm x 428.2 mm
Notes	- mounting a hard drive in the external 3.5" bay will need to detach the 3.5" bay cover.

Download

Data Sheet

Parts & Accessories

Image	Accessory	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	TC-RAIL-24	24" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-26	26" Sliding Rail Kit for Most Rackmount Chassis
	TC-RAIL-20	20" Sliding Rail Kit for Most Rackmount Chassis
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
