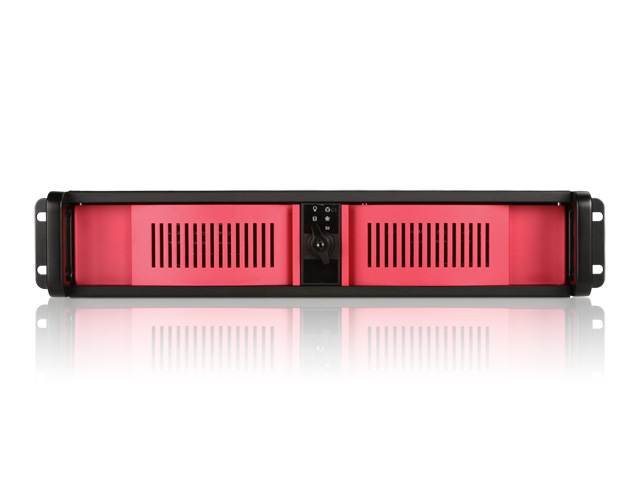

2U Compact Stylish Rackmount Chassis

Patented Aluminum Front Panel with Locks,Taiwan: 200281 / 190240 , China: 2L01259648.5
2U High 17" Depth Short For Applications of Industrial Computer Chassis
Supports Front Access USB2.0 x2
40mm x2 Cooling Fan
Removable Air Filter
Power and HDD LED
Power and Alarm Reset Switch
Shock-resistent Drive Bay Design Supports Up to One 5.25" and 3.5" Disk Drives

Product Introduction

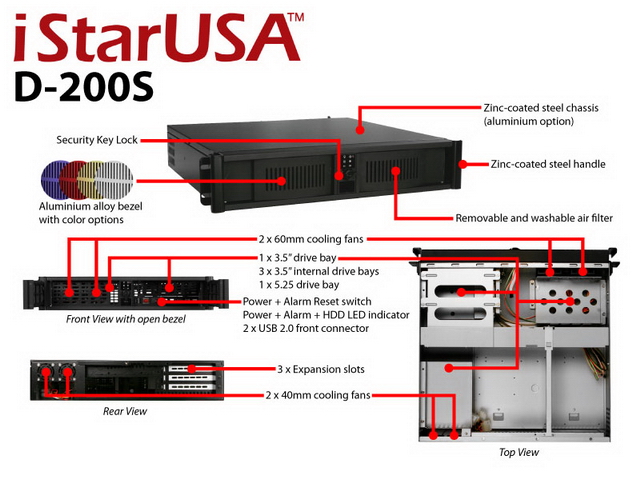

D-200S is a reliable and stable 2U-high 17" depth with 3-slot PCI industrial computer chassis. The full size I/O supports all ATX motherboard. D-200S supports three add-on cards include PCI, PCI-X, AGP, or PCI-Express architecture that provide your server or cluster maximum flexibility and performance. This unit is ideal for data intensive business, multimedia, and surveillance applications when rack space optimization with high data storage capacity is crucial. Optional aluminum body reduces total chassis weight and also provides enhanced thermal cooling solution.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-200S
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 3.50" x 17.00" 482.6 mm x 88.9 mm x 431.8 mm

Download

Data Sheet

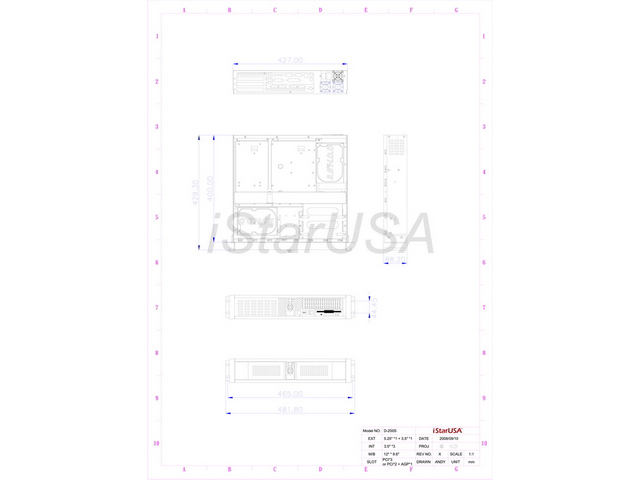

Product Drawing

Parts & Accessories

Image	Accessory	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T-25HD-SI	Build-to-Order - 2.5" SATA HDD SSD Slot Carrier
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	DD-200-DBLUE	D-200 BLUE DOOR
	DD-200-DRED	D-200 RED DOOR
	DD-200-DSILVER	D-200 SILVER DOOR
	DD-200-SE-BLACK	2U Black Bezel for SE series
	DD-200-SE-BLUE	2U Blue Bezel for SE series
	DD-200-SE-RED	2U Red Bezel for SE series
	DD-200-SE-SILVER	2U Silver Bezel for SE series
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	TC-RAIL-20-D2	20" Sliding Rail Kit for D Storm 2U Chassis

Output

There are no Power Output Specifications for this product.

FAQ

Q :

Test D-200S with DVD driver and TC-1U/40

A :

DVD drive is 170 mm deep. TC-1U40 is 200 mm deep. After we put them in the D-200S, There was only 20 mm left, which is fine. But if we use a 220 mm power supply, there wouldn't be enough place to connect the connector. By the way there are two "stand off" inside the chassis. The distance between the stand off and the rear edge is 210 mm. So if the power is more than 21 mm length, it could not be installed flatly.
