Product Detail

1U Compact Server/Desktop mini-ITX Chassis

Industrial chassis with 9.8" depth
Compact, low-height

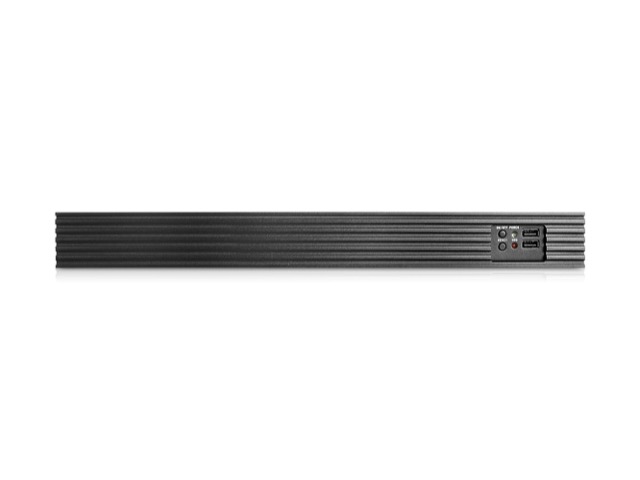

2x front access USB 2.0 ports
Supports mini-ITX motherboards
Supports 1U flex power supplies

Product Introduction

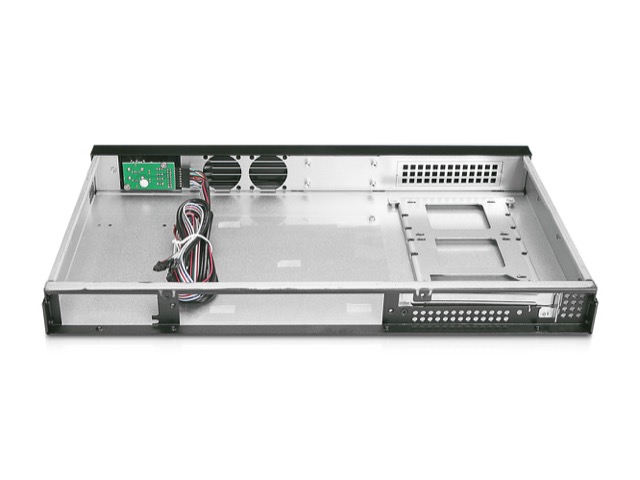

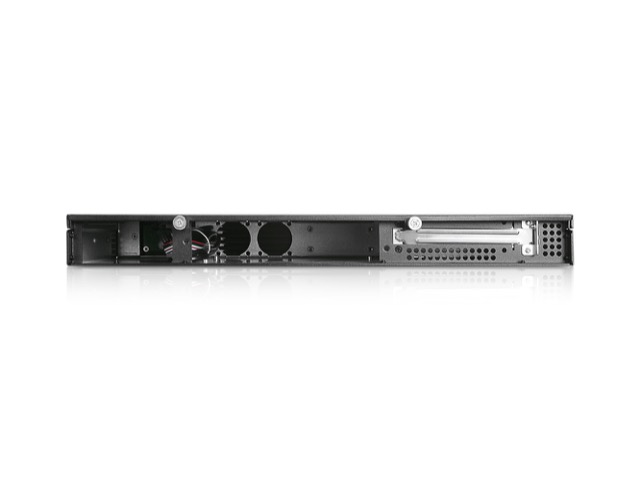

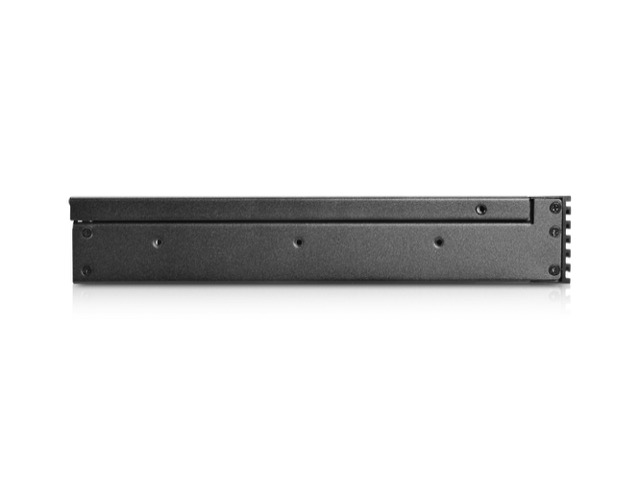

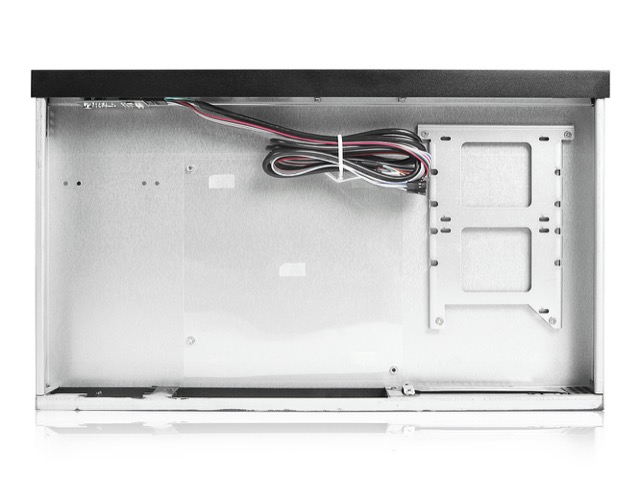

D-118V2-ITX-DT is a reliable and stable 1U-high 9.8" depth industrial computer chassis. This chassis supports either one 3.5" or two 2.5" hard drive with a mini-ITX motherboard. D-118-ITX-DT supports a 1U flex power supply to meet regular system applications and optional 40mm cooling fans can be installed at front for air ventilation.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-118V2-ITX-DT
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 9.82" 482.6 mm x 44.5 mm x 249.4 mm
Notes	- 3.5" hdd cannot be installed when an add-on card is in place. - standard I/O shield will NOT fit any 1U chassis. - for PCI riser, use DD-611-C5 (search for DD-611-CX). - for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX).

Download

Data Sheet

Product Drawing

Parts & Accessories

Image	Accessory	Description

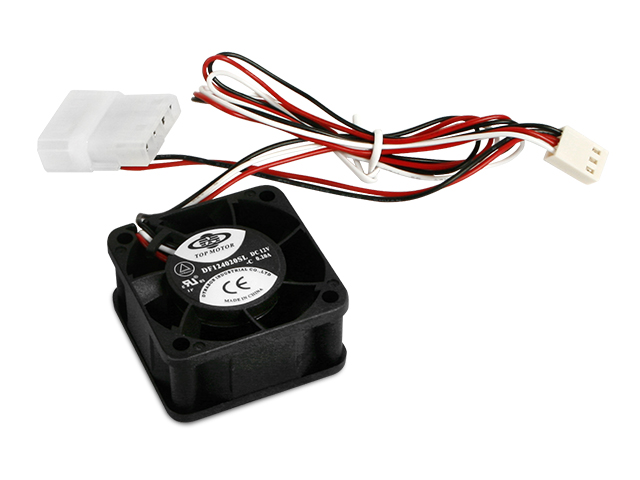

	DD-FAN40-Q	40mm Liquid State Bearing Fan

Output

There are no Power Output Specifications for this product.

FAQ

There are no FAQ entries for this model.
