Product Detail

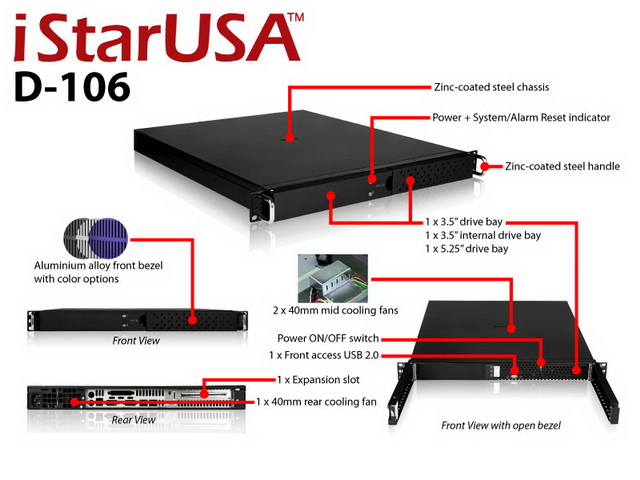

Build-to-Order - 1U Ultra-compact Rackmount Chassis

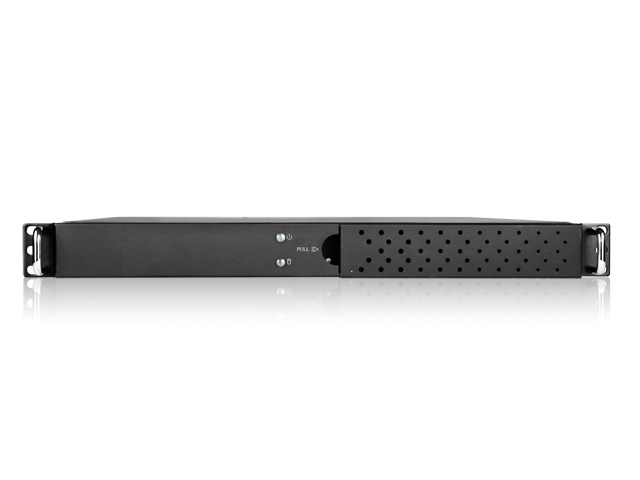

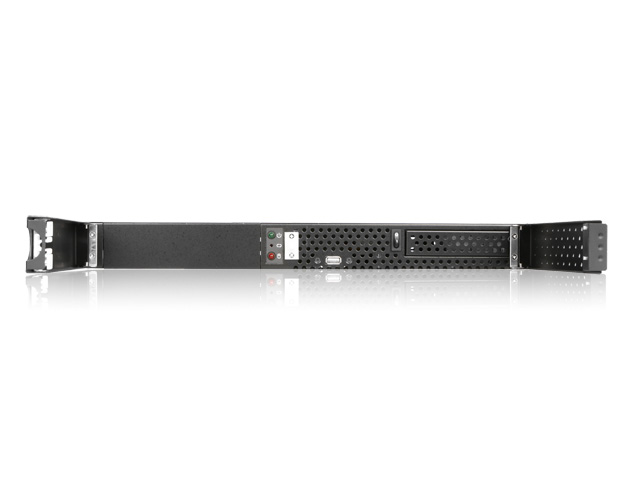

Signature Aluminum Front Panel
Front Access USB2.0x1
40mmx3 cooling fan
Performance front cold air intake tunnel
Power and HDD LED
Power and alarm reset switch
Thumb screw 5.25 drive bay
32bit PCI riser card x1 (optional 64 bits)

Product Introduction

The most compact and versatile industrial rackmount chassis D Storm D-106. Our unique thermal cooling solution including front cold air intake tunnel and CoolingFan cooling fan can cool the system down while it runs at optimal level. Optional slim CD and floppy combo enable hot-swappable storage, raid configuration, and total storage capacity up to 1 terabytes provide the server or cluster maximum flexibility and performance.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	D-106
RoHS Compliance	Yes
Dimensions (WxHxD)	19.00" x 1.75" x 20.00" 482.6 mm x 44.5 mm x 508.0 mm
Notes	- standard I/O shield will NOT fit any 1U chassis. - for PCI riser, use DD-611-C5 (search for DD-611-CX). - for PCIe x16 riser, use DD-666-C5 (search for DD-666-CX). - 2.5" HDD need use bracket(RP-HDD2.5).

Download

Data Sheet

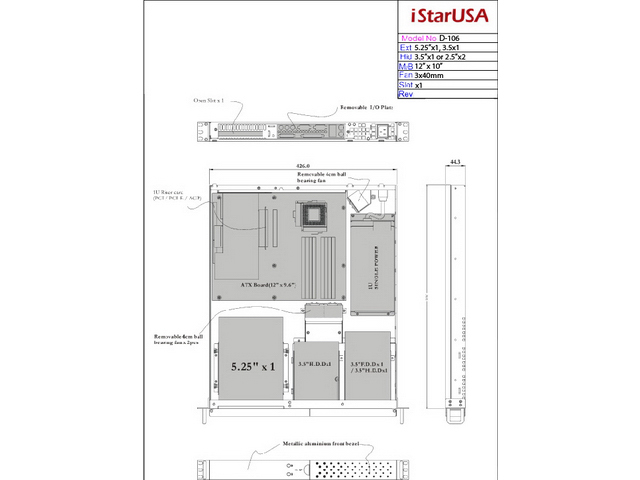

Product Drawing

Parts & Accessories

Image	Accessory	Description
	BPU-124V2-SS	Build-to-Order - 5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPU-126-SA	Special Order - 5.25" to 6x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	BPU-2535-SI	Build-to-Order - 3.5" to 2.5" SATA 6 Gbps HDD Hot-swap Rack
	DIY-RHF03	Build-to-Order - 3.5" to 5.25" Anti-Vibration Hard Drive Mounting Bracket
	RP-COMBO-SLIM	5.25" Optical Drive and Floppy Drive Cage Holder
	RP-COMBO-SLIM2535	2.5"/ 3.5" HDD & Slim Optical Drive to 5.25" Drive Bay Cage
	RP-FDD35	5.25" Drive Bay Bracket for 3.5" Devices
	RP-HDD2.5	2.5" to 3.5" Hard Drive Mounting Bracket
	RP-HDD25BC	2.5" HDD SSD Mounting Bracket for 3.5" Bay
	RP-HDD25P	3.5" Drive Bay Bracket for 2x 2.5" SSDs
	RP-HDD3.5	3.5" to 5.25" Hard Drive Mounting Bracket
	RP-HUB-SAUF	3.5" Combo Hub for USB2.0/ Firewire/ e-SATA
	RP-RAIL-20-1U	20" Sliding Rail Kit for 1U Short Rackmount Chassis
	RP-READER35	Build-to-Order - All-in-one USB 2.0 Card Reader
	T5F-SS	EOL - Trayless 5.25" to 3.5" SAS SATA HDD Anti-vibration Hot-swap Rack
	T5-SA	Build-to-Order - Trayless 5.25" to 3.5" SATA HDD Anti-vibration Hotswap Rack
	T-7M1-SATA	5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-7-SA	Rugged 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	TC-ISTORM8	3.5" to 5.25" Hard Drive Cooling Heat Sink
	RP-2HDD2535	5.25" Drive Bay Cage for 3.5" and 2.5" Hard Drives
	RP-4HDD255F	EOL 4x 2.5" HDDs/SSDs to 5.25" Drive Bay Bracket
	BPN-DE110SS	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack
	BPU-124DE-SS	5.25" to 4x 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	T-G525-SS	Industrial 5.25" to 3.5" 2.5" SATA SAS 6 Gbps HDD SSD Hotswap Rack
	BPN-2535DE-SA	3.5" to 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-G35-SS	Industrial 3.5" to 2.5" SATA SAS 6 Gbps HDD SSD Hot-swap Rack
	BPN-DE110SS-WB	Trayless 5.25" to 3.5" SATA SAS 6 Gbps HDD Hot-swap Rack with Wood Look Bezel
	BPN-124K-SA	Trayless 5.25" to 4x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K3525U-SA	Trayless 5.25" to 3.5" & 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-5K225T-SA	Trayless 5.25" to Slim ODD and 2x 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack
	T-5K35T-SA	Trayless 5.25" to Slim ODD and 3.5" SATA 6 Gbps HDD Hot-swap Anti-vibration Rack
	T-5K25TU-SA	Trayless 5.25" to Slim ODD and 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack with USB 3.0
	T-35K25-SA	Build-to-Order - Trayless 3.5" to 2.5" SATA 6 Gbps HDD SSD Hot-swap Rack

Output

There are no Power Output Specifications for this product.

FAQ

Q :	Are there sliding rails for D-106 1U chassis?
A :	Yes, the model # will be RP-RAIL-22-1U, 1U 22? sliding rails.
