Product Detail

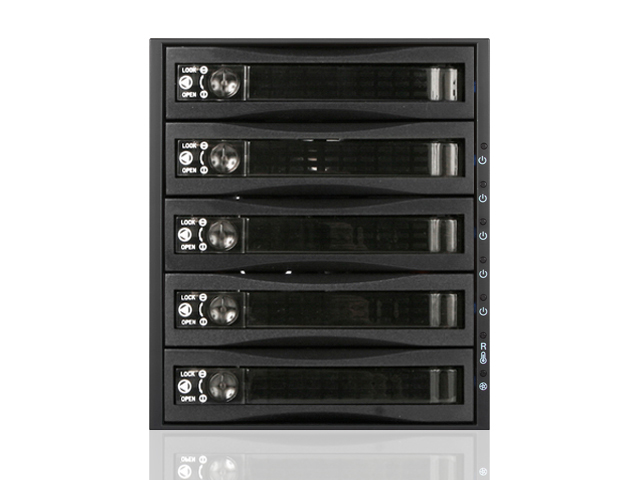

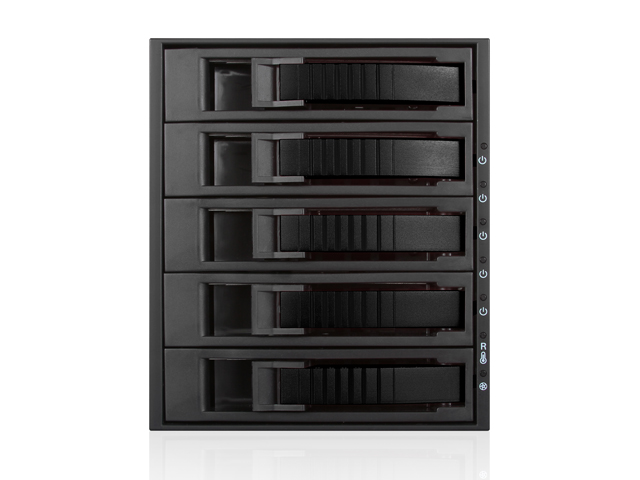

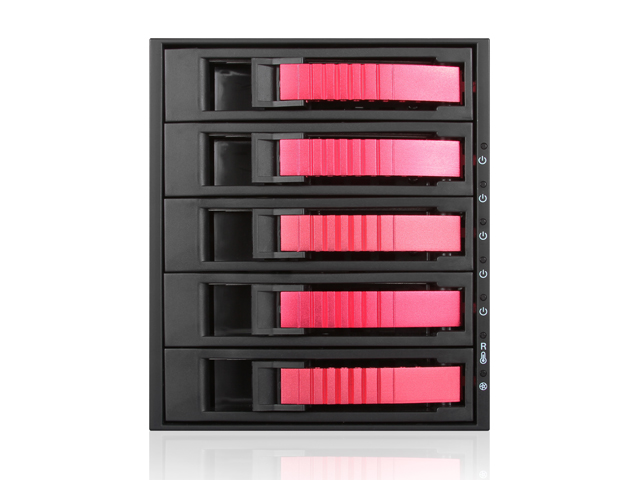

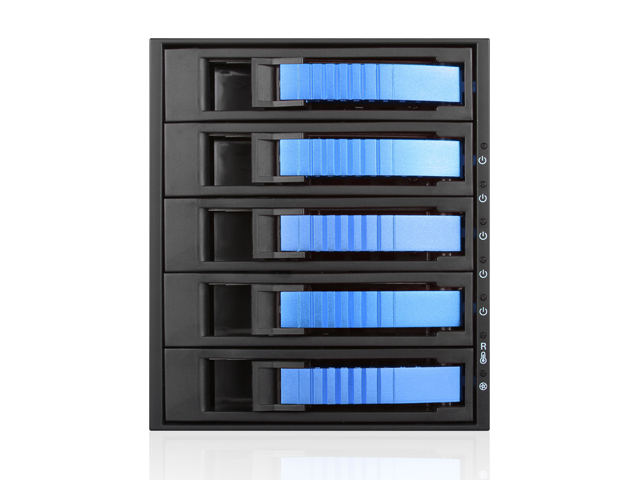

3x 5.25" to 5x 3.5" 2.5" SAS SATA 6 Gbps HDD SSD Hot-swap Rack

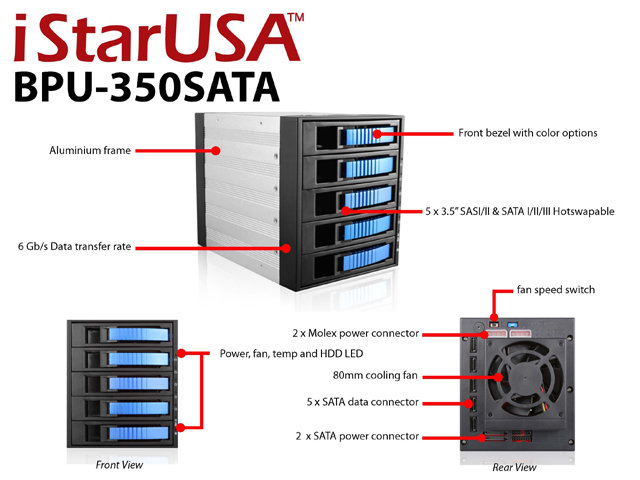

Stylish aluminum color handle and heat-sink body
Support Hot-Swap & RAID Configuration (need an additional RAID controller)

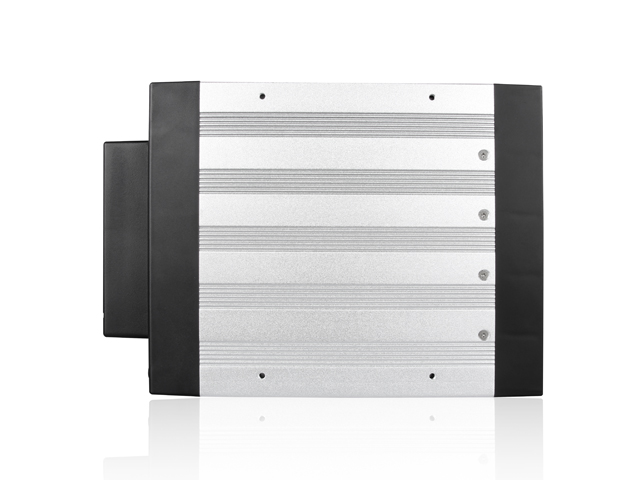

Aluminum Design with Conductive Dissipation Grooves
Power, fan and high temperature LED indicators
High Performance Transfer Rate up to 6.0 Gb/s
Supports Both 2.5" and 3.5" SAS I/II & SATA I/II/III HDDs

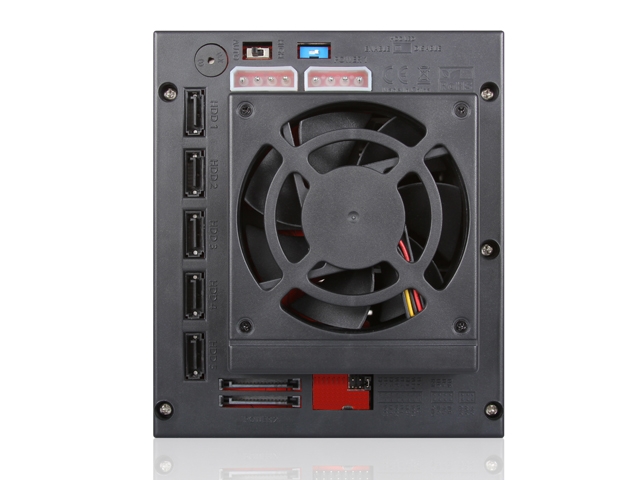

Equipped with Fan Speed Control Switch
12TB Hard Drives Compatible

Product Introduction

High level RAID and high availability storage in compact design, BPU-350SATA series adds extra storage and hot-swap capability to satisfy any application needs. The BPU-350SATA is constructed of aluminum material that provides best heat dissipation required for high performance SAS/SATA drives. It is designed with excellent front to back vent airflow. The BPU-350SATA is an ideal solution for internal server RAID and JBOD applications. Aluminum body and extra 80mm cooling fan subsystem complete a high end data storage server or workstation.

Specifications	Download	Optional Accessories
Output	FAQ
Compatible Chassis

Model Number	BPU-350SATA
RoHS Compliance	Yes

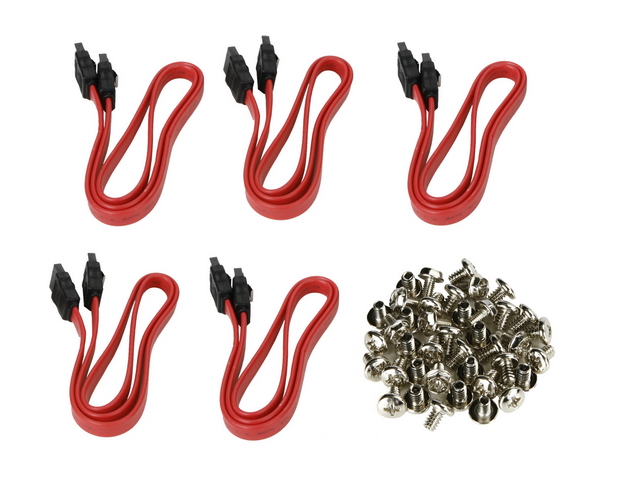

Package Content	SATA Cable Included (5pcs)

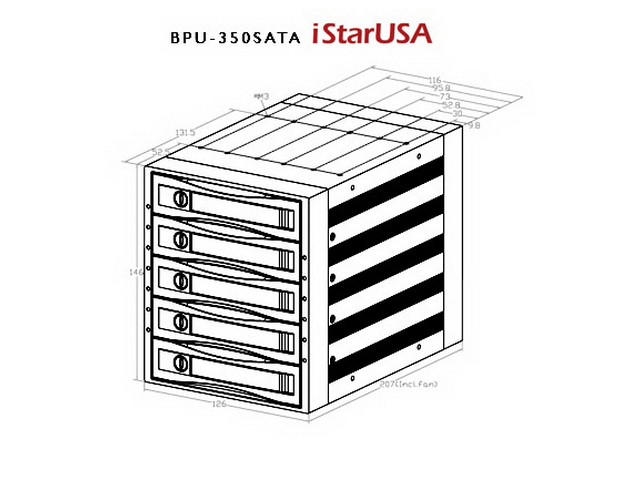

Dimensions (WxHxD)	5.75" x 4.96" x 8.25" 146.1 mm x 126.0 mm x 209.6 mm

Download

Data Sheet

Product Drawing

User's Manual

Parts & Accessories

Image	Accessory	Description

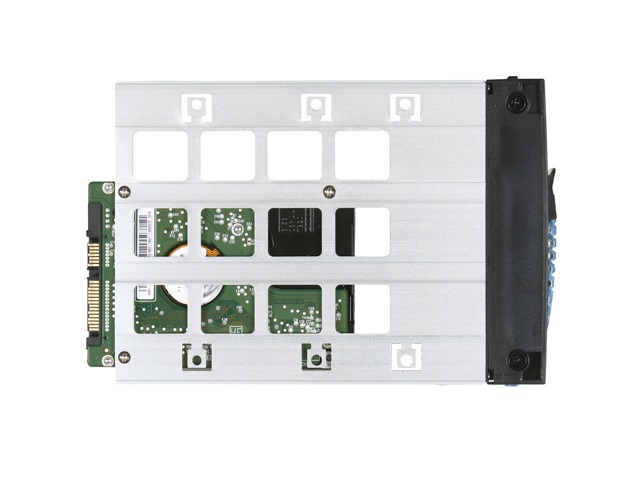

	BPU-HSTRAY	BPU Series and T-7M1-SATA Tray with Plastic Lockable Handle
	BPU-HSTRAY-BLACK	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLACK
	BPU-HSTRAY-BLUE	BPU Series and T-7M1-SATA Tray with Aluminum Handle BLUE
	BPU-HSTRAY-RED	BPU Series and T-7M1-SATA Tray with Aluminum Handle RED

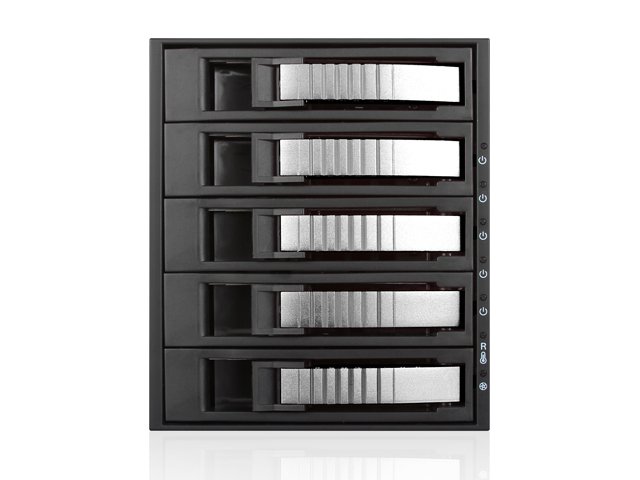

	BPU-HSTRAY-SILVER	BPU Series and T-7M1-SATA Tray with Aluminum Handle SILVER
	BPU-HSTRAY-35TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 3.5" HDD Tray

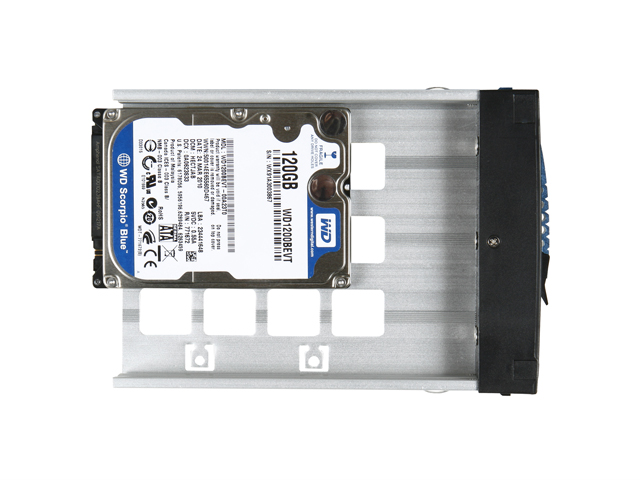

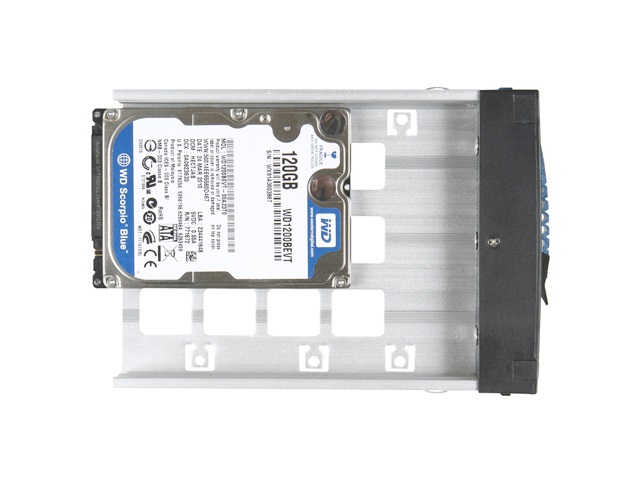

	BPU-HSTRAY-25TL	Build-to-Order - BPU Series and T-7M1-SATA Tool-Less Screw-less 2.5" HDD Tray

Output

There are no Power Output Specifications for this product.

FAQ

Q :	Does BPU series storage enclosure support staggered spin-up?
A :	Generally staggered spin-up is supported by host controller and/or through motherboard Bios. BPU storage enclosure provides pass through connection with environment monitoring, itself do not contain drive controller function.
Q :	Why is the BPU-350 not turned on?
A :	The BPU-350 has power switches for each individual drive. To power on the drives, use a pin to push the power switch.
Q :	Is there a way to regulate the speed of the fan by temperature on BPU-350SATA?
A :	It is unable to regulate by temperature due to the design only providing high/low adjustment.
